73
D-Link DWL-8200AP User Manual

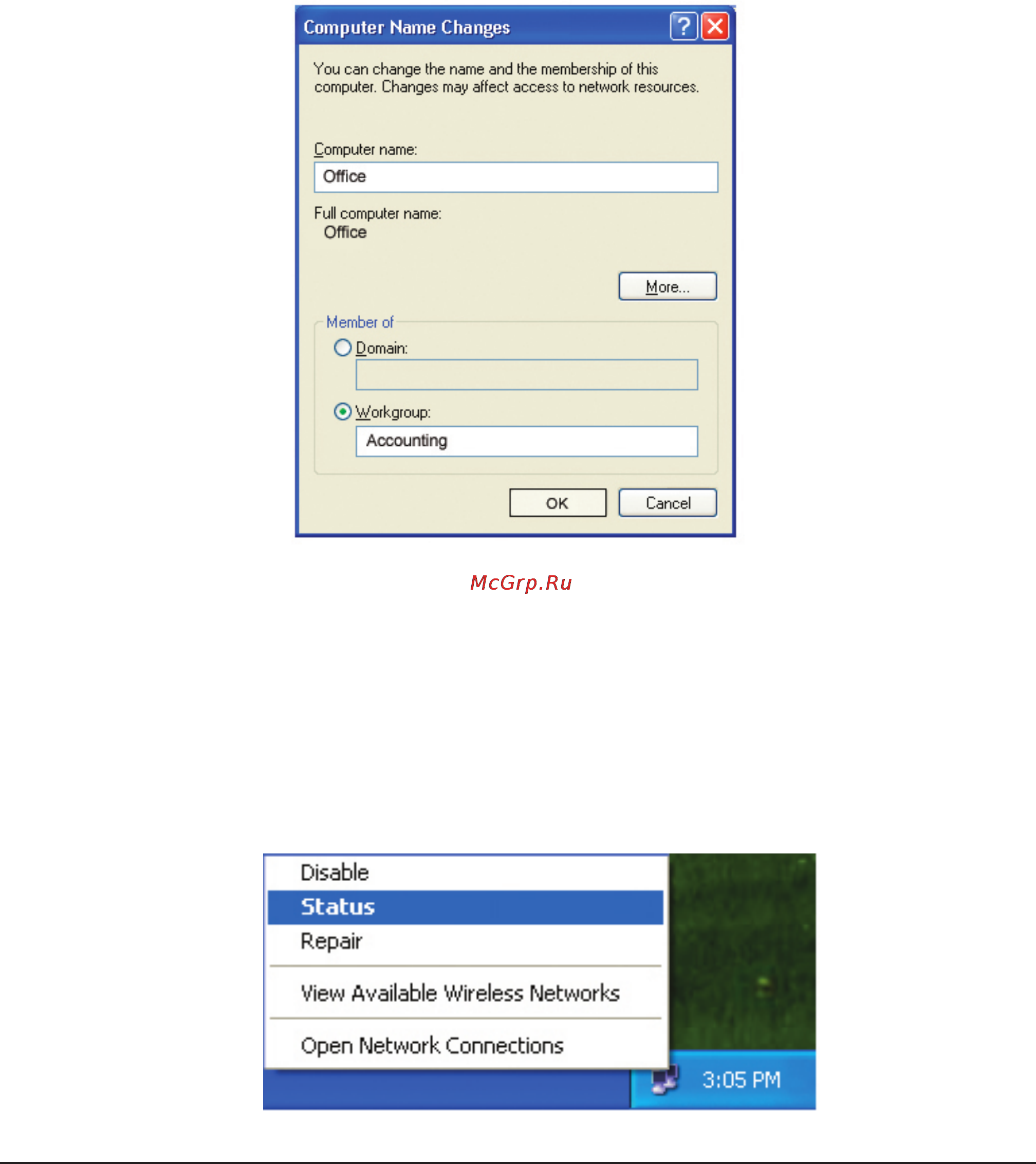

In this window, enter the Computer name.
Select Workgroup and enter the name of the Workgroup.
All computers on your network must have the same Workgroup name.
Click OK.
The wireless adapter-equipped computers in your network must be in the same IP Address range
(see Getting Started in this manual for a definition of IP Address Range.) To check on the IP
Address of the adapter, please do the following:
Right-click on the Local Area Connection icon in the task bar.
Click on Status.
Checking the IP Address in Windows
®
XP
