55
D-Link DWL-8200AP User Manual

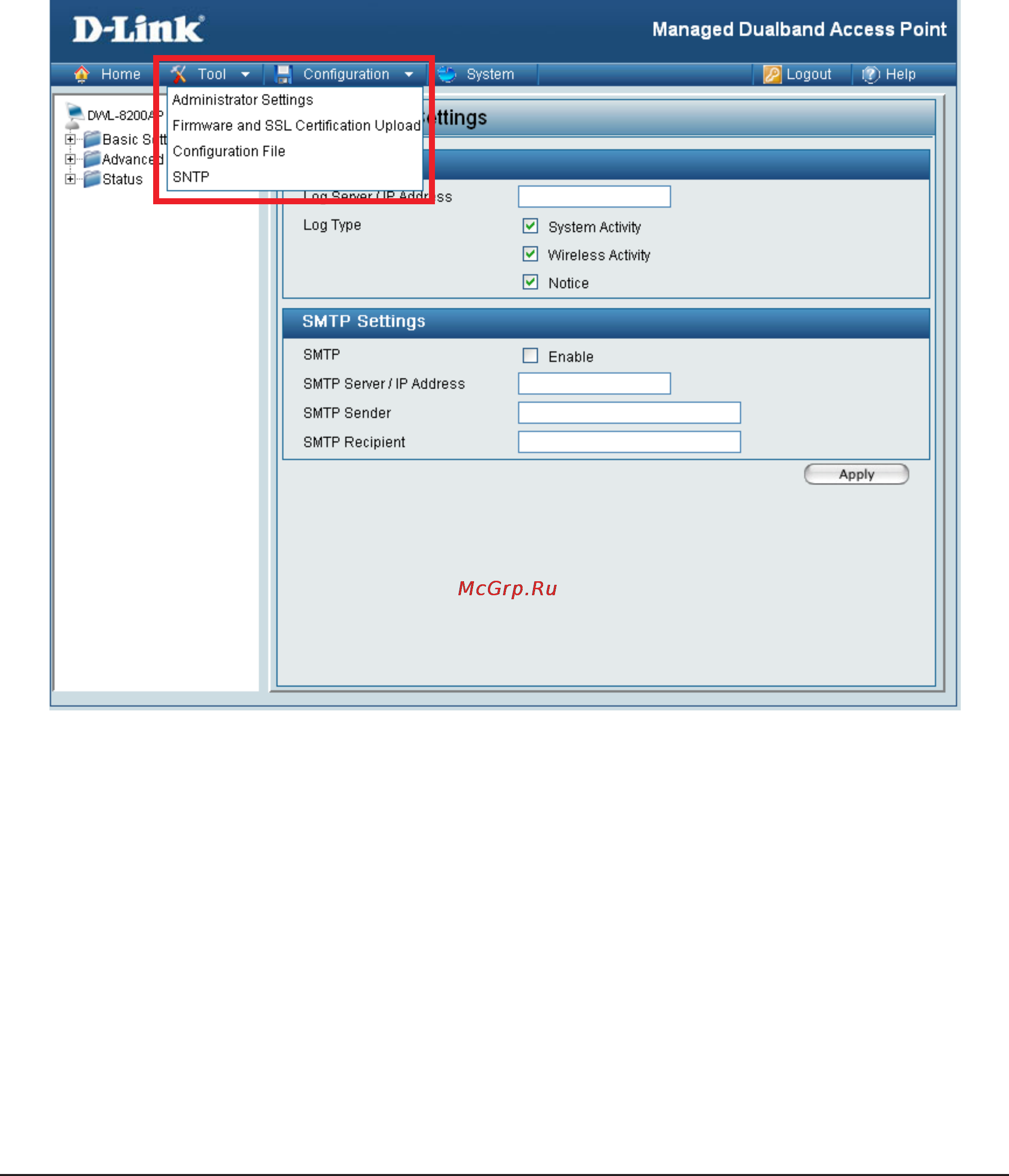

Tool Menu
The DWL-8200AP Tool menu gives access to the Administrator settings, the Firmware and SSL
Certification upload menu, the device configuration file settings, and SNTP settings.
The DWL-8200AP Tool menu gives access to the Administrator settings, the Firmware and SSL
Certification upload menu, the device configuration file settings, and SNTP settings.
