48
D-Link DWL-8200AP User Manual

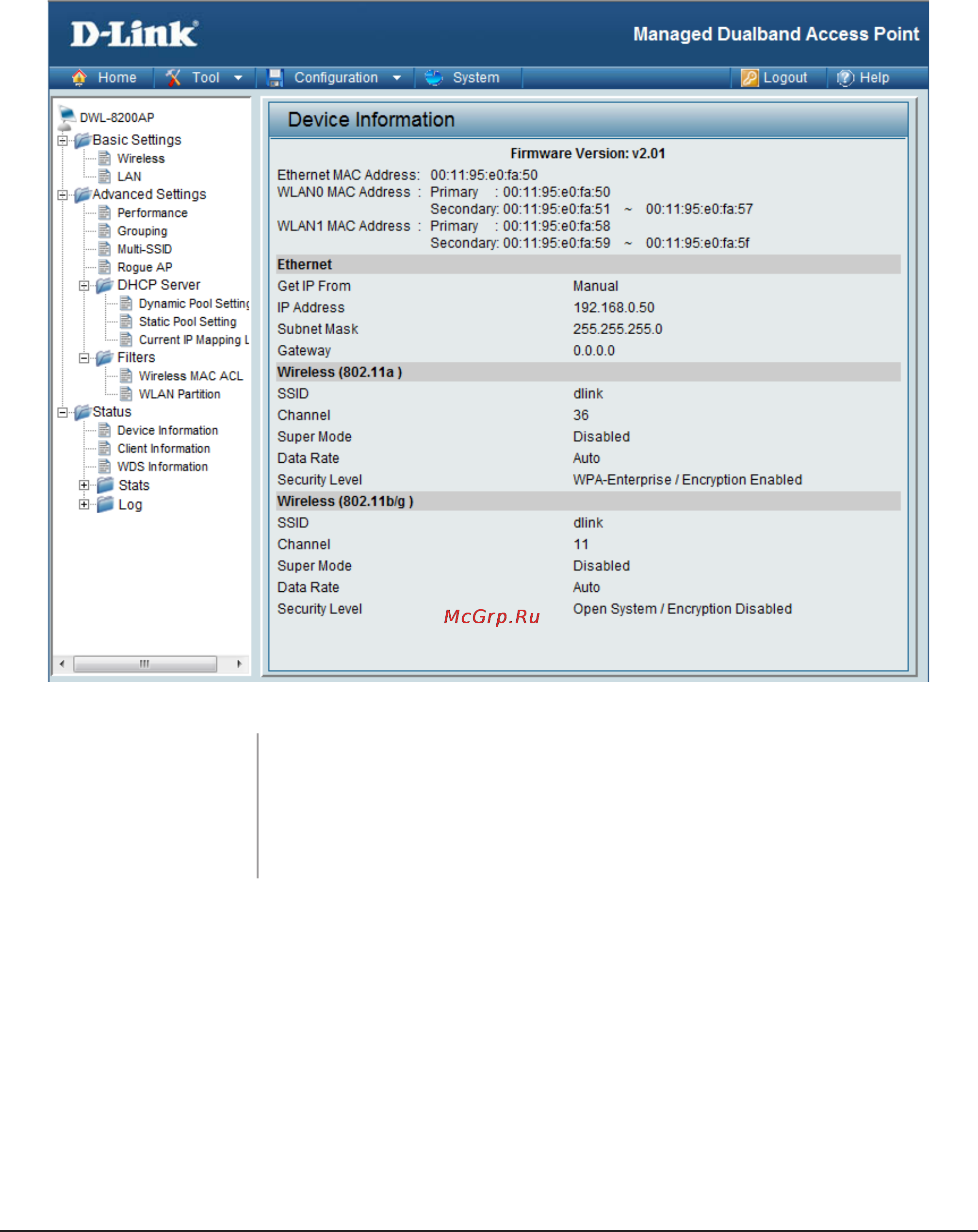

Home > Status > Device Information
Device Information:
This window displays the configuration settings of the DWL-8200AP,
including the firmware version and device MAC address. It also
displays WLAN information for both the 802.11a and 802.11g
wireless networks.
