44
D-Link DWL-8200AP User Manual
Binding MAC
address:
Assigned IP address:
Lease Time:
Current DHCP Static
Pools:
The MAC address of a device on the network that is within the DHCP
dynamic IP address pool.
The current corresponding DHCP-assigned dynamic IP address of
the device.
The length of time that the dynamic IP address will be valid.
These are IP address pools to which the DHCP server function has
assigned static IP addresses.
These are IP address pools to which the DHCP server function has
assigned dynamic IP addresses.

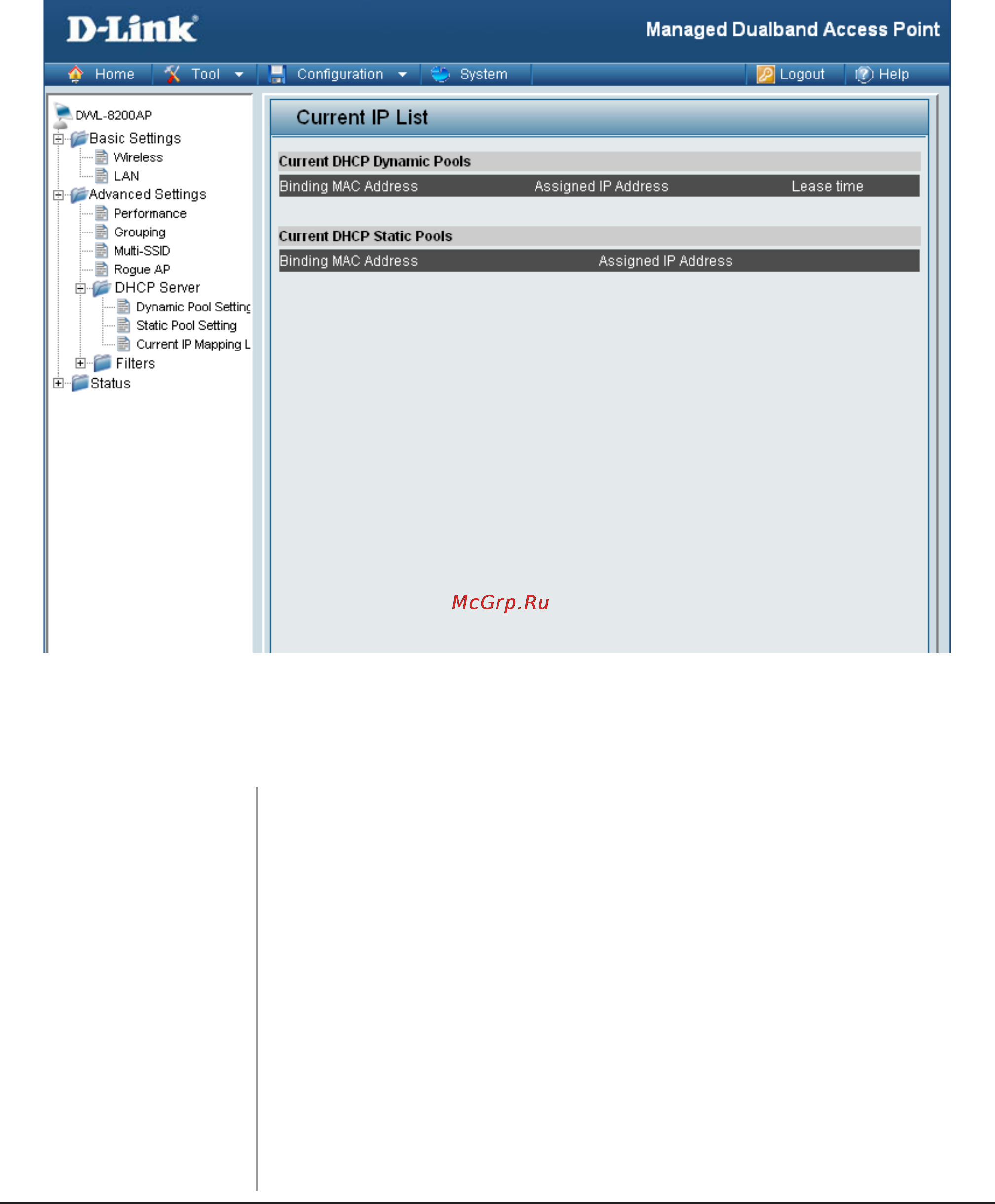

This screen displays information about the current DHCP dynamic and static IP
address pools. This information is available when you enable the DHCP function of the
DWL-8200AP and assign dynamic and static IP address pools.
Current DHCP
Dynamic Pools:
Home > Advanced Settings > DHCP Server >
Current IP List
