54
D-Link DWL-8200AP User Manual

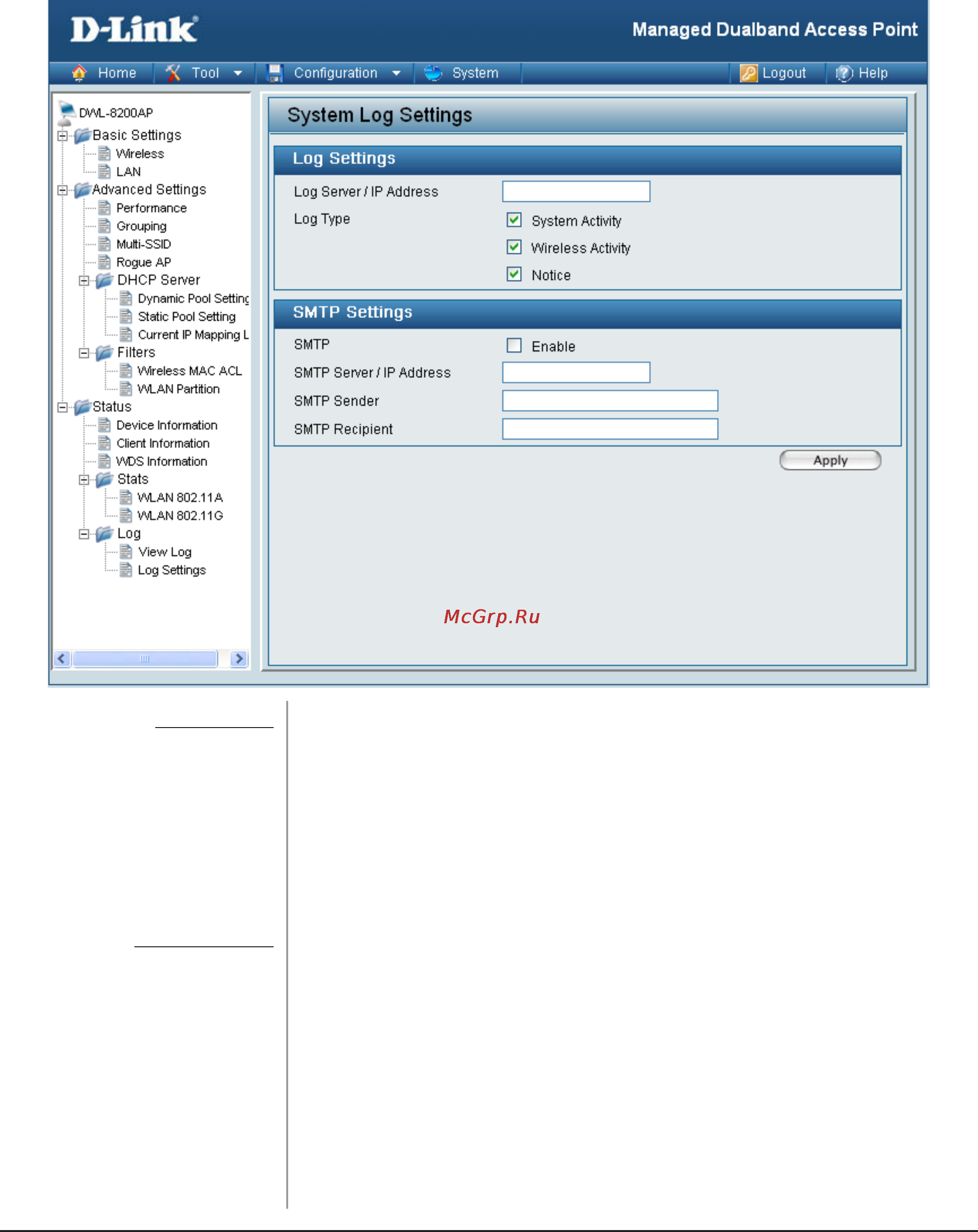

Home > Status > Log > Log Settings
Log Server / IP
Address:
Enter the IP address of the server you would like to send the
DWL-8200AP log to.
Log Settings
Log Type:
Check the box for the type of activity you want to log. There are
three types: System, Wireless and Notice.
SMTP Settings
SMTP Server / IP
Address:
Enter the IP address of the SMTP server.
SMTP:
Check the box to enable SMTP.
SMTP Sender:
Enter the e-mail address of the SMTP sender.
SMTP Recipient:
Enter the e-mail address of the SMTP recipient.
