67
D-Link DWL-8200AP User Manual

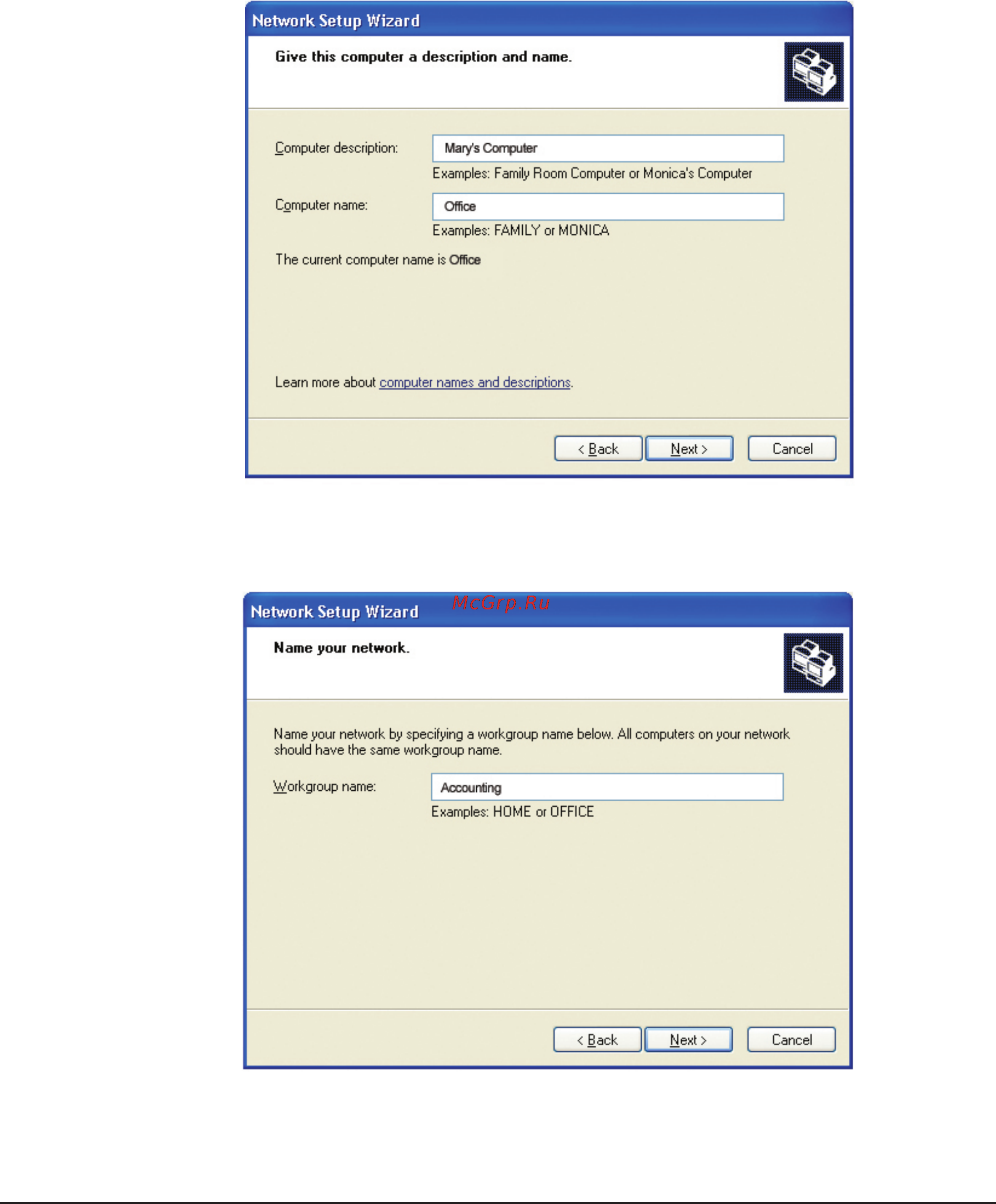

Enter a Computer description and a Computer name (optional).
Click Next.
Enter a Workgroup name. All computers on your network should have the same Workgroup
name.
Click Next.
