69
D-Link DWL-8200AP User Manual

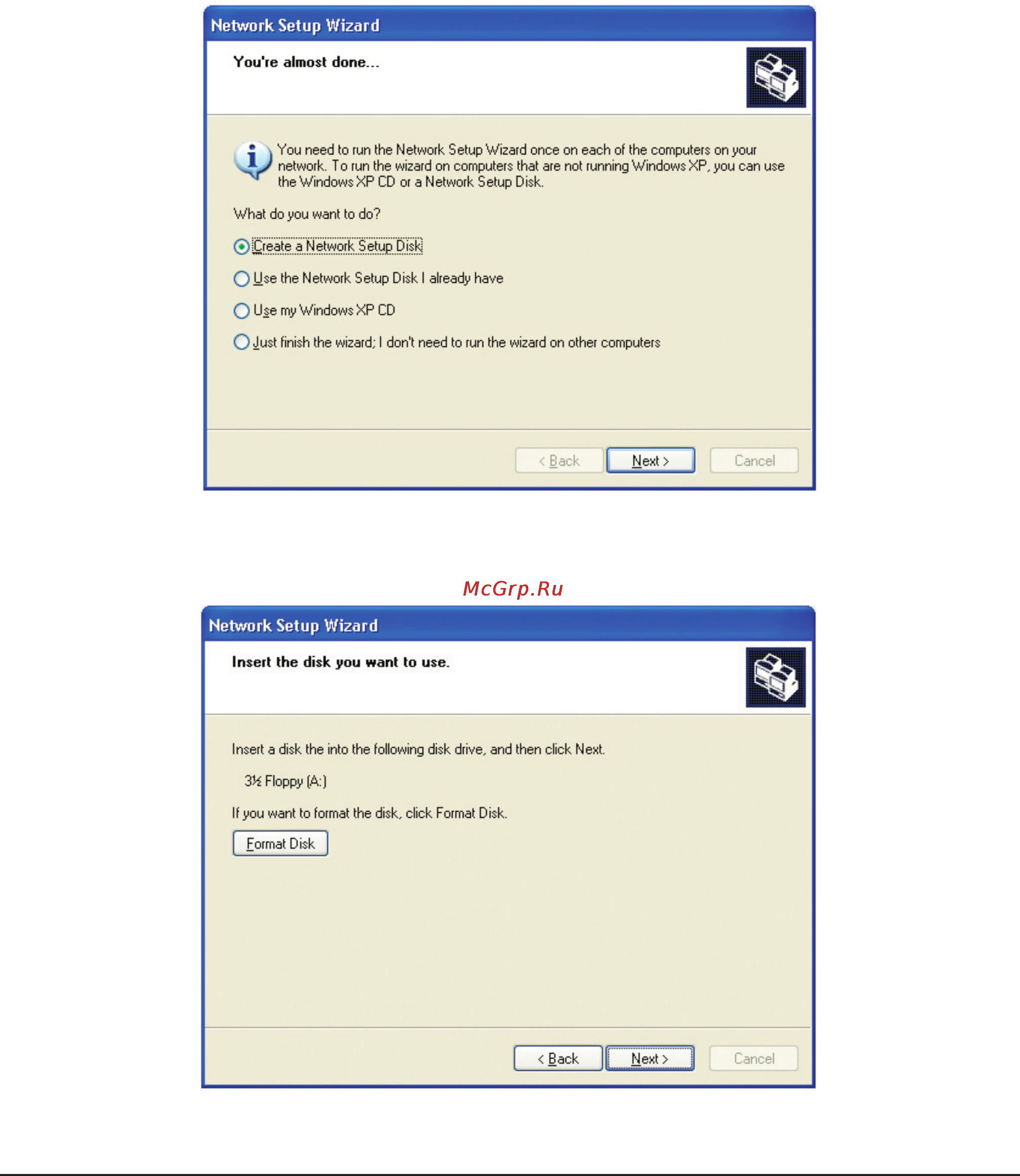

Insert a disk into the Floppy Disk Drive, in this case drive A.
Click Next.
In the window below, select the option that fits your needs. In this example, Create a Network
Setup Disk has been selected. You will run this disk on each of the computers on your network.
Click Next.
