High Performance Vector Control/Torque Control Inverter User Manual
94 Chapter 6 Parameter Description
To adjust the analog outputs as defined in the above table, it can use this function. The adjusted analog
value is the actual output of AO terminal.
P7.09 is used to determine the positive and negative polarity of the gain or bias.
Display of operation panel
Unit’s digit
AO1 gain 0: Positive; 1: Negative
Tens place
AO1 bias 0: Positive; 1: Negative
Hundreds
place
AO2 gain 0: Positive; 1: Negative
Thousands
place
AO2 bias 0: Positive; 1: Negative
Since function codes P7.05 ~ P7.09 are different from other function codes, adjustment will affect the AO
output timely.
Both AO1 and AO2 have the same calibration way. Take AO1 as an example:
Set P7.05 to 100.0% and P7.06 to 20.0%,namely, K=1 and b=2V, and the AO1 characteristics curve is as

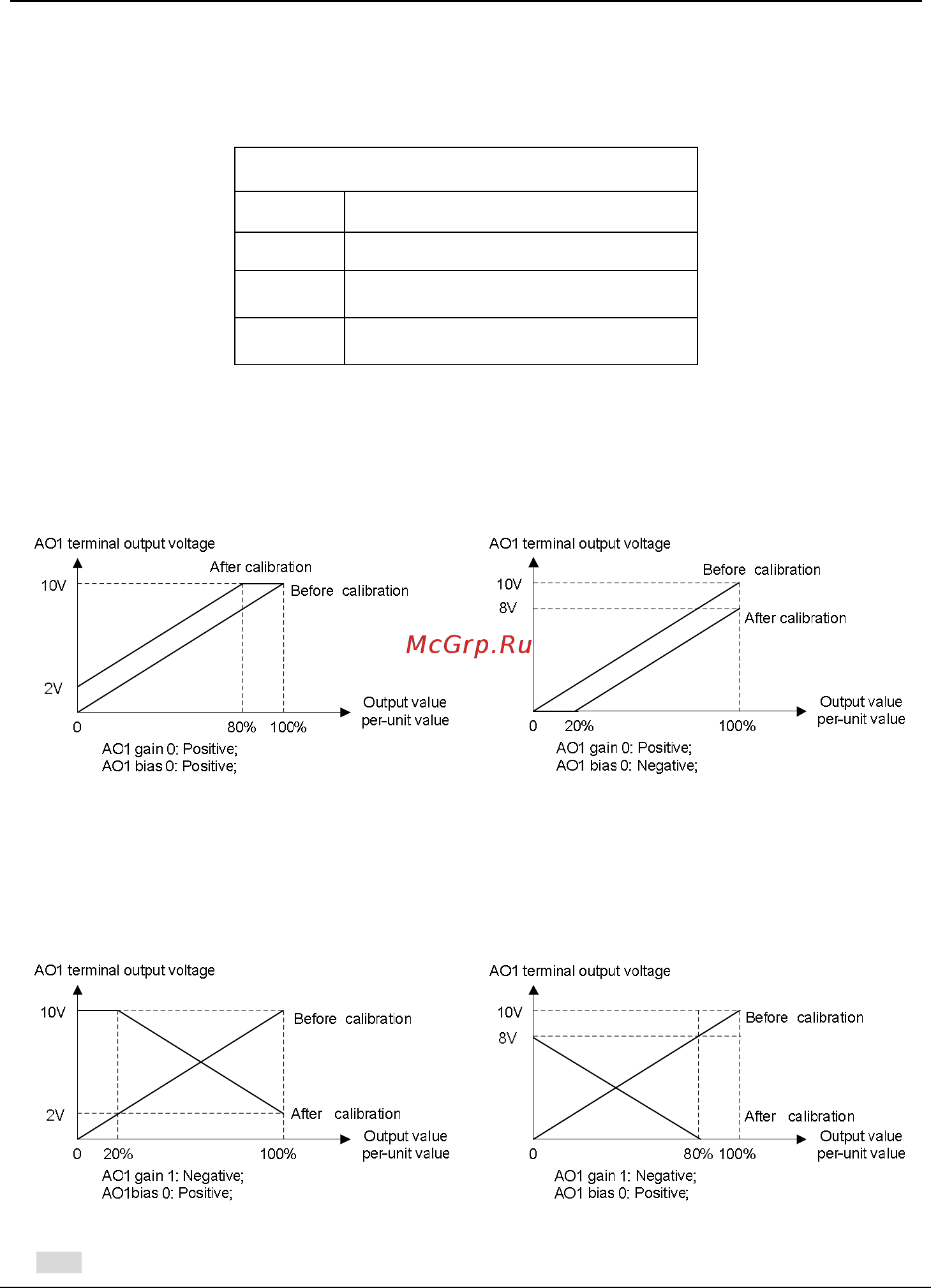

shown in Fig.6-26 and Fig.6-27.
Fig.6−26 AO1 Characteristics Curve Kx+b Fig.6−27 AO1 Characteristics Curve Kx−b
Set P7.05 to 100.0% and P7.06 to 120.0%, namely, K=1 and b=12V, and the AO1 characteristics curve is
as shown in Fig.6-28.
Set P7.05 to 100.0% and P7.06 to 80.0%, namely, K=1 and b=8V, and the AO1 characteristics curve is
as shown in Fig.6-29.
Fig.6−28 AO1 Characteristics Curve−Kx+b Fig.6−29 AO1 Characteristics Curve−Kx+b
Note: When the analog output gain is set to negative value and the bias is also negative, the AO output
