High Performance Vector Control/Torque Control Inverter User Manual
142
Appendix B Control Mode Setting Process
Appendix B Control Mode Setting Process

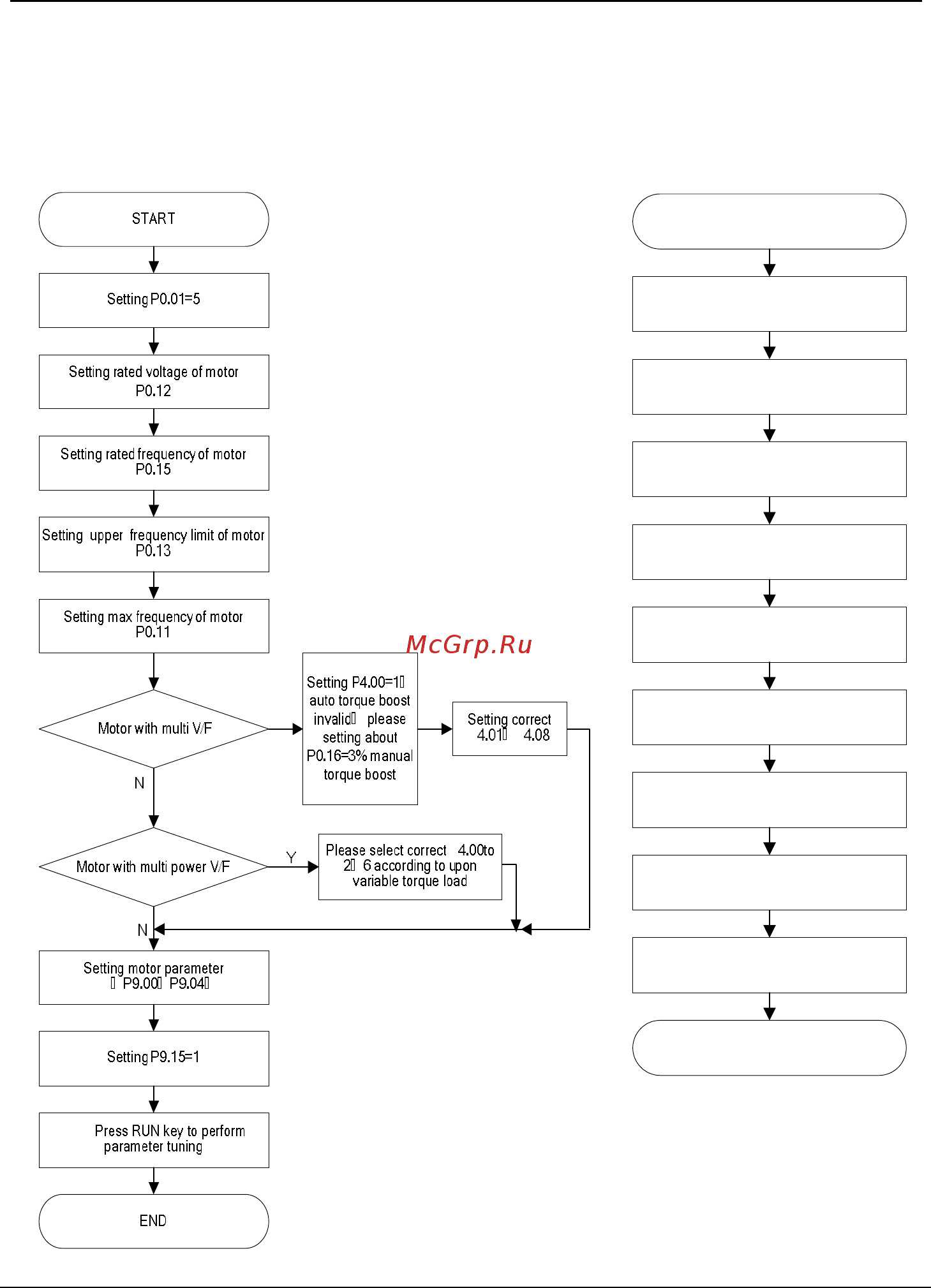

1. Setting Process for Auto-tuning
Parameter auto-tuning under Vector control 1 Parameter auto-tuning under vector control 2
START
Setting P0.01=5
Setting Rated voltage of motor
P0.12
Setting basic frequency of motor
P0.15
Setting upper frequency limit of motor
P0.13
Setting max frequency of motor
P0.11
Setting parameter of motor
( P9.00~P9.04)
Setting P9.15=2
Press RUN key to perform
parameter tuning
End
First step, must disconnected
from the load
