6.12 Enhanced Function Parameter (Group Pb)
Set hopping frequency range of inverter to avoid mechanical resonance. When the setting frequency of
inverter is less than the hopping frequency, the inverter will run automatically at the upper limit or lower
limit of the hopping frequency (change to run at lower limit of the hopping frequency when acceleration,
for deceleration, change to run at upper limit of the hopping frequency), as shown in Fig. 6-36.

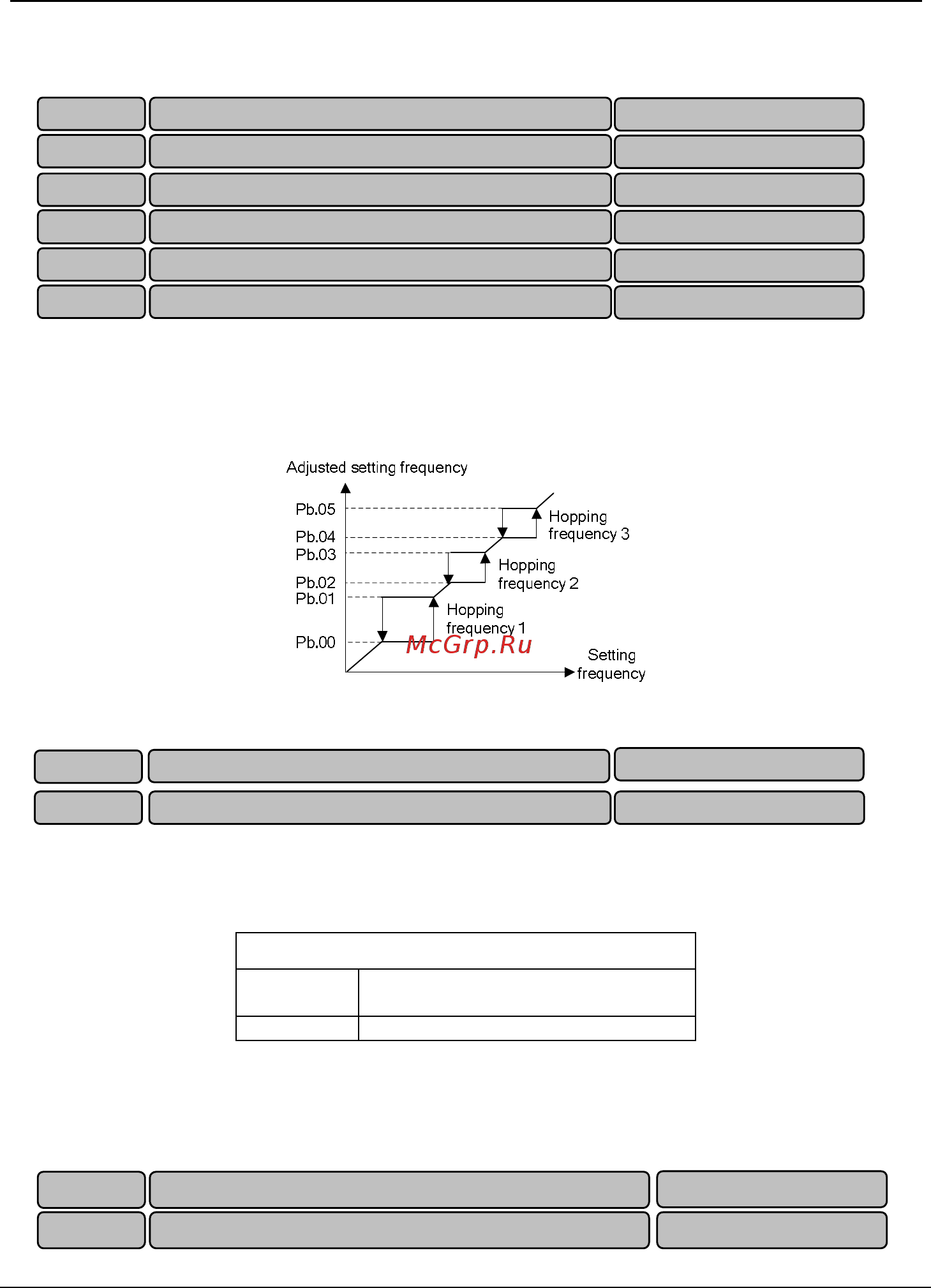

Fig. 6-36 Upper and lower limit of hopping frequency
When Pb.08 setting without integral function, UP/DN single step increase or decrease frequency define
by Pb.06.
Display of operational panel
Unit place
Acceleration/deceleration time
0:×1; 1:×10
Tens place Reserved
For some special applications that longer acceleration/deceleration time is required, the function can be
used to determine magnification of acceleration/deceleration time that has been set. For example, if the
current acceleration/deceleration time 0(P0.08, P0.09) is valid, the real applied acceleration/deceleration
time is 10 times as long as acceleration/deceleration time 0 when ×10 is selected.
Pb.00 Hopping frequency 1 lower limit
0.00 ~ 300.00 Hz(0.00Hz)
Pb.01 Hopping frequency 1 upper limit
0.00 ~ 300.00 Hz(0.00Hz)
Pb.02 Hopping frequency 2 lower limit
0.00 ~ 300.00 Hz(0.00Hz)
Pb.03 Hopping frequency 2 upper limit
0.00 ~ 300.00 Hz(0.00Hz)
Pb.04 Hopping frequency 3 lower limit
0.00 ~ 300.00 Hz(0.00Hz)
Pb.05 Hopping frequency 3 upper limit
0.00 ~ 300.00 Hz(0.00Hz)
Pb.06
Single step without integral function
0.00~10.00(0.1)
Pb.08 Operational panel / digital regulating frequency control
0~0221(0001)
Pb.09 Operational panel / integral rate
0.1~50.0 s(2.0s)
Pb.07 Magnification selection 0~01(00)
