High Performance Vector Control/Torque Control Inverter User Manual
Appendix A Modbus Communication Protocol
141
code Address
Request 0x01 0x06 0x8000 0x0000 0xA00A
Response
0x01 0x06 0x8000 0x0000 0xA00A
Note:
It needs to set P0.06 to 2 firstly.

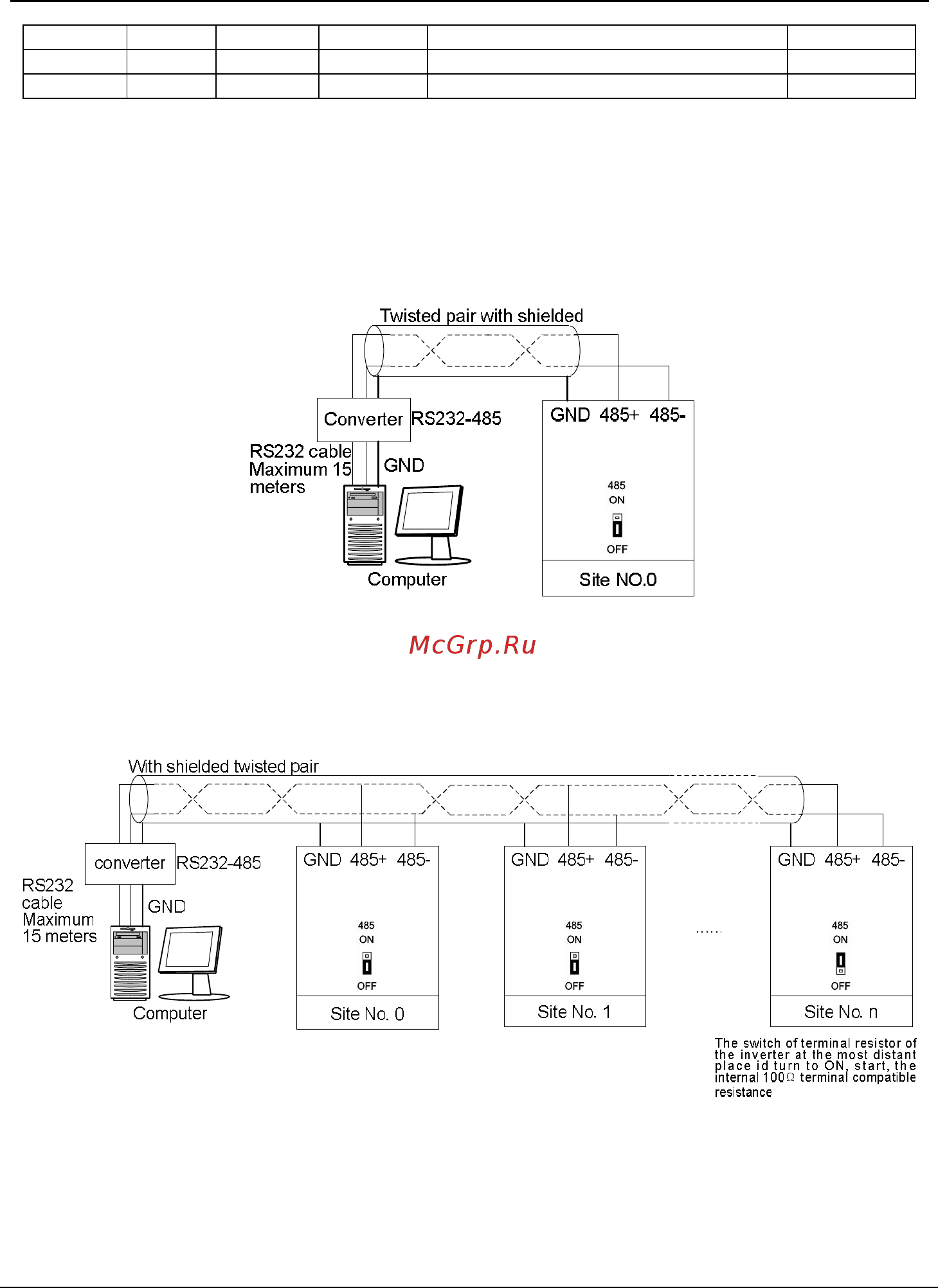

8. Communication Network Construction
Connecting one inverter to the computer
Attached Fig.3 Connecting One Inverter to the Computer
Connecting multiple inverters to the computer
Attached Fig.4 Connecting Multiple Inverters to the Computer
