6.9 Process PID Close Loop Parameters (Group P8)

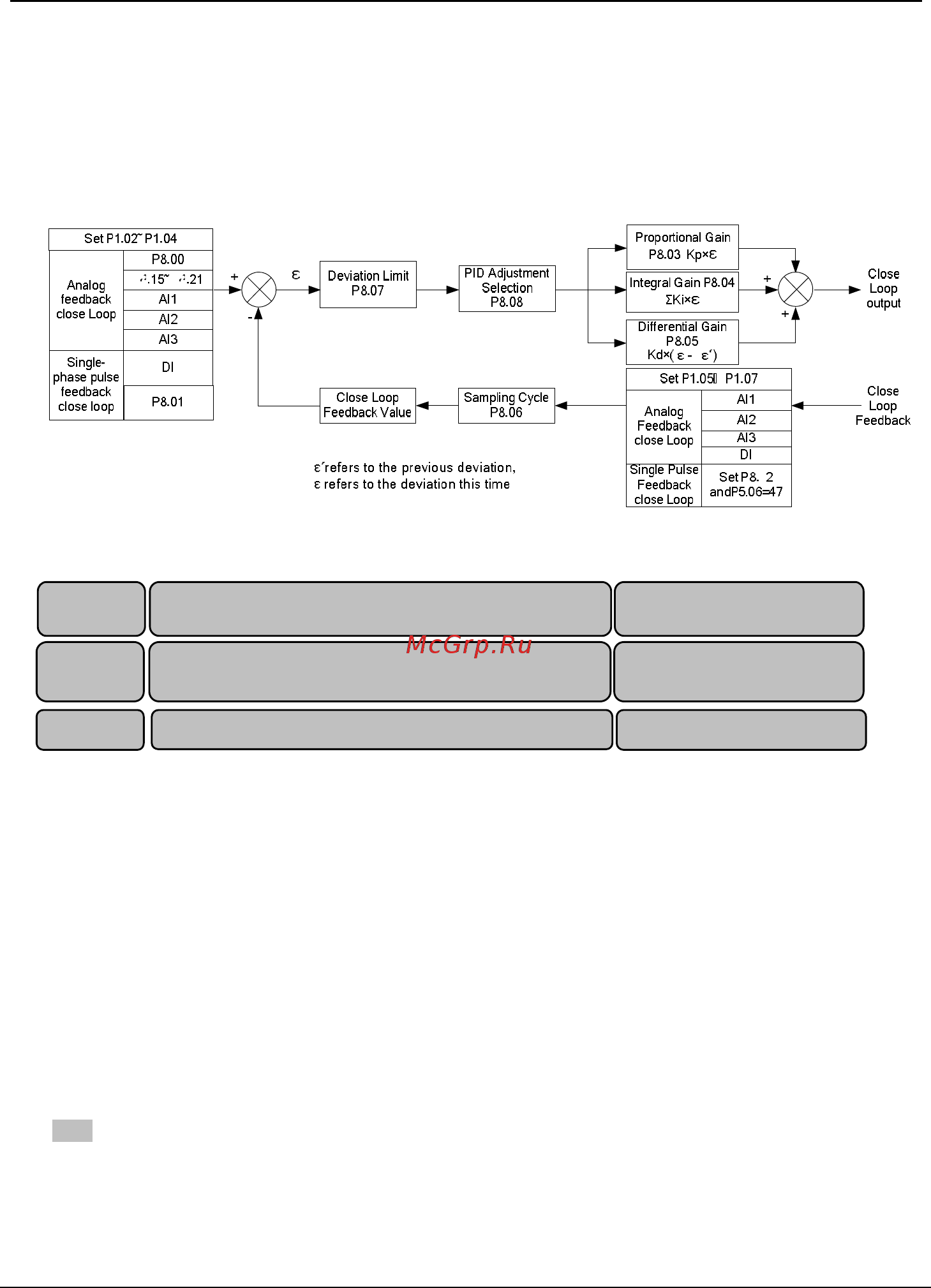

Fig. 6-32 Schematic diagram for PID
The current control operation mode P0.03 shall be determined before determining the process close loop
reference value.
When the current control operation mode is analog feedback process close loop (P0.03=1, 3, 5 and 7), if
P1.02 is set to “0”, it may determine the reference value of the close loop by P8.00. If P1.02 is non-zero
value, it determine the reference value of the close loop by the analog value and pulse frequency
selected in P1.02.
When the current control operation mode is single-phase pulse feedback process close loop (P0.03=2
and 6), it may determine the reference value of the close loop. In addition, when the single-phase pulse
feedback process close loop is employed, it needs to use an pulse encoder and set the number of
single-phase pulses per rotation for the encoder according to the encoder model (P8.02)so as to
determine the close-loop feedback value indicated by the signal feedback by the single-phase pulse.
Note:
The signal feedback by the single-phase pulse must be connected to X7/DI terminal and this
terminal shall be set to “47: Single-Phase Pulse Input. of single-phase pulse feedback process
close loop control.
In the analog value feedback close loop mode, if P1.02 is set to “0”, it can use multi-section
P8.00
Analog feedback process close loop control digital voltage
reference
0.00~10.00 V(0.00V)
P8.01
Single-phase pulse feedback process close loop control
digital rotation velocity reference
0~30000 rpm(0rpm)
P8.02 Number of pulses per turn for single-phase pulse 1~9999(1000)
