High Performance Vector Control/TorqueControl Inverter User Manual
28 Chapter 3 Wiring of Incerter
3.9 Schematic Diagram of Control Board

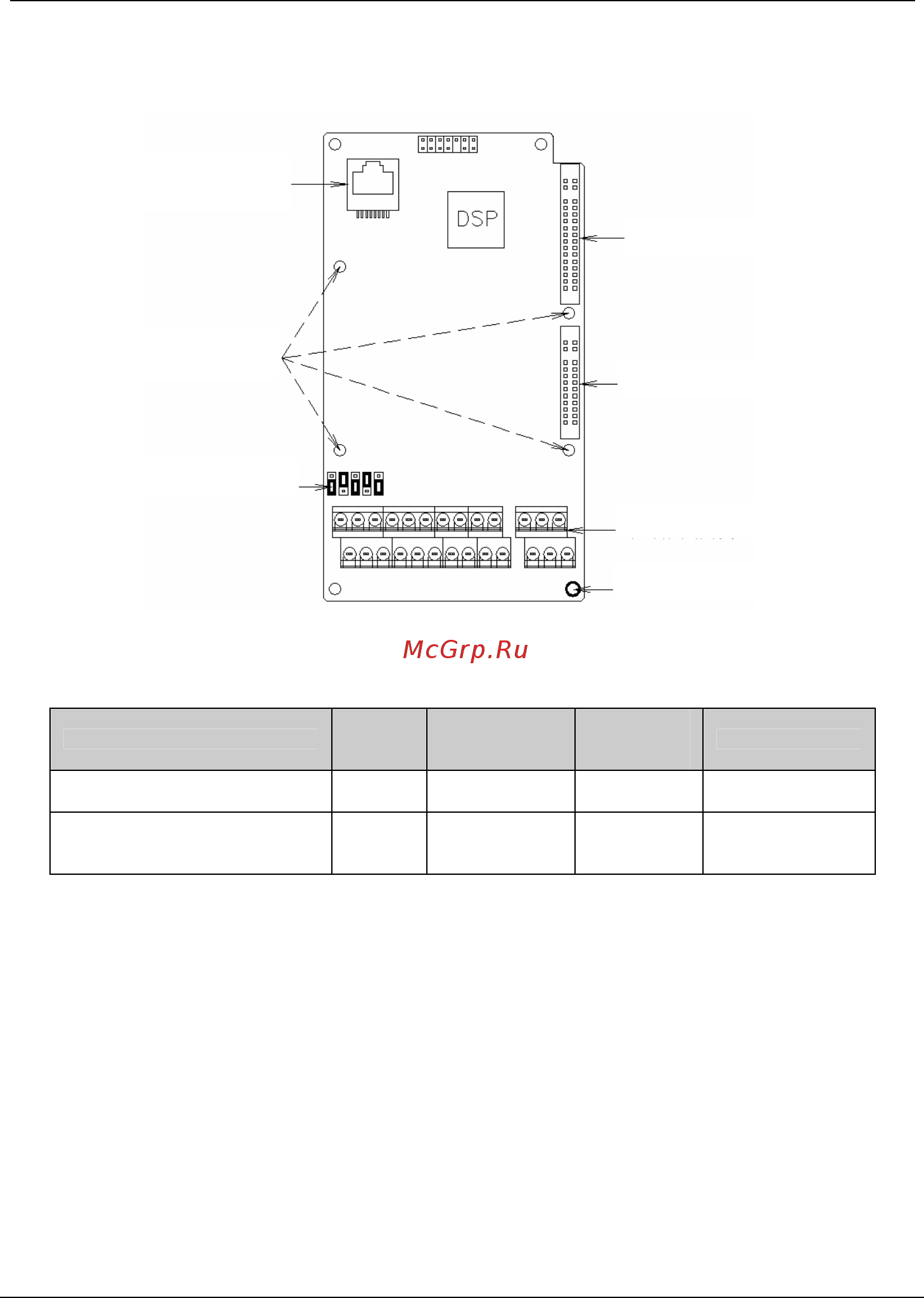

Fig.3-7 Schematic diagram of control board
3.10 Lectotype of Control Circuit Peripheral Devices
Terminal number
Terminal
screw
Tightening
torque
(N·m)
Wire
specification
mm
2
Wire type
+10V, AI1, AI2, AI3, 485+, 485−,
AO1, AO2, GND
M3 0.5~0.6 0.75
Twinning shielding
cable
+24V, PLC, X1, X2, X3, X4, X5,
X6, X7/DI, COM, Y1, Y2/DO,
COM, RA, RB, RC
M3 0.5~0.6 0.75 Shielding cable
Network cable connection port
Expansion board mounting hole
Jumper selection switch
Drive board
por
Expansion board port
Control circui
t terminal
Network cable connection port
Expansion board mounting hole
Jumper selection switch
Drive board port
Expansion board port
Control circuit terminal
Control board grounding
