High Performance Vector Control/Torque Control Inverter User Manual
Chapter 4 Using Instructions of Operation Panel 31

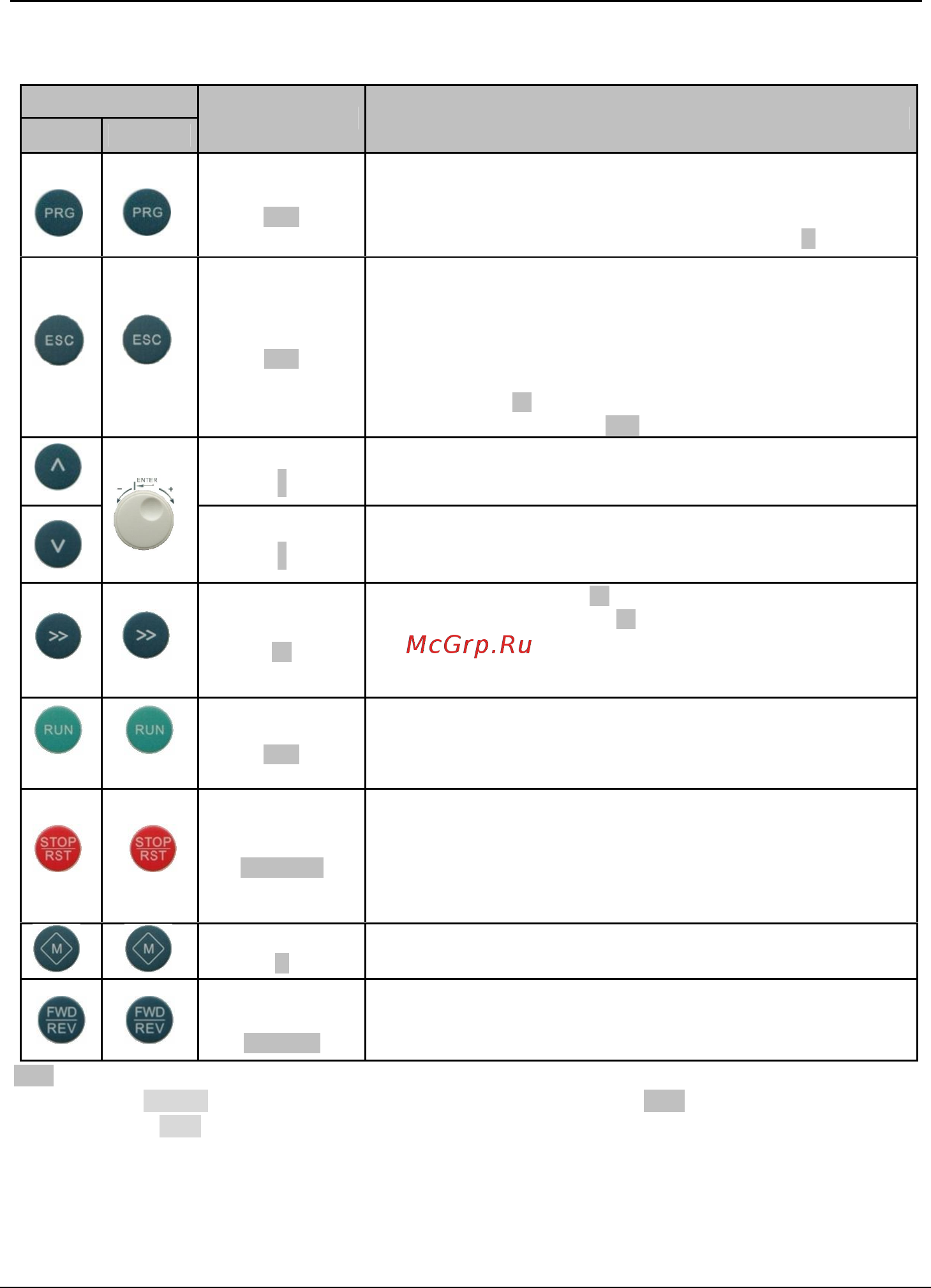

4.3Description of Keys on Operation Panel
Note:
The ENTER key of shuttle type operation panel is equivalent to PRG Key.
Using PRG key continuously can realize fast browse of all function codes.
Symbol
Key-type
Shuttle-type
Name Function
Programming key
PRG
1、 Enter each level of menu
2、 Confirm data storage
3、 Check function code in sequence
4、 Confirm the running command reference mode with M key
Escape Key
ESC
1、 Back to first level menu from second level menu; Back from first
level menu to standby status, running status, and fault status
2、 Give up data storage after modifying data.
3、 Back to basic menu mode after pressing this key for more than 5s.
Refer to 4.4.3. When LCD cannot display all the function codes,
use this method to re-display all the function codes.
4、 After using >> key to switch from fault display to Stop / Run
parameter display, press ESC to back to fault display status.
Increase Key
∧
1、 In first level menu, increase function code according to edit bit.
2、 In second level menu, increase the function code data.
3、 In stop/run status, increase the input frequency or close loop input.
Knob+
Knob-
Decrease Key
∨
1、 In first level menu, decrease function code according to edit bit.
2、 In second level menu, decrease the function code data.
3、 In stop/run status, decrease the input frequency or close loop input.
Shift Key
>>
1、 In first level menu, use >> key to move edit bit of PX.YZ menu
2、 In second level menu, use >> key to move the edit bit of data
3、 In stop/run status, switch the panel display parameters such as
frequency, current and voltage.
4、 In fault status, change from fault display to stop/run display.
Run Key
RUN
1、 When running command is given via operation panel, the key is
used to control the start of inverter.
2、 After setting the parameter auto tuning,start parameter auto tuning
for inverter startup
Stop/Reset Key
STOP/RST
1、 When running command is given via operation panel, the key is
used to control the stop of inverter.
2、 This key is used as a stop key when inverter only has fault alarm
but does not stop.
3、 When the inverter has fault and has stopped, this key is used as
RESET key to clear the fault alarm.
Multi-function Key
M
See table 4-1 for the using method of multi-function key and the
meanings of MULTI indicator.
Forward/reverse
Key
FWD/REV
When running command is given via operation panel, this key is used to
confirm the output direction of inverter
