Other Print Operations
116
3
Punch
With the optional Finisher SR3040 installed, holes can be punched into printed
output.

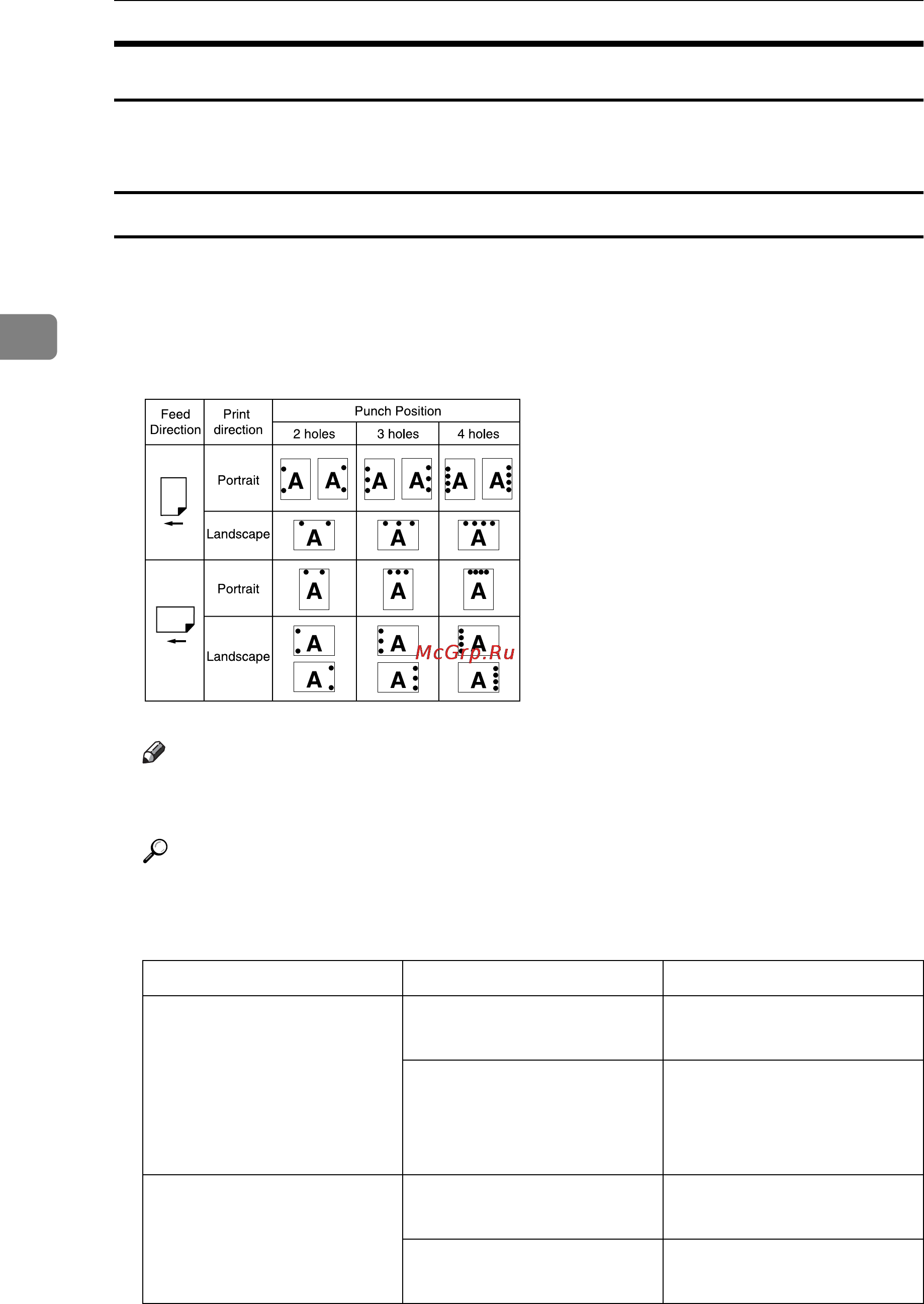

Punch Position
The specified punch position varies depending on paper feed and print data ori-
entation. The following table shows punch positions:
❖ Punch Position
Note
❒ Punch positions will vary slightly from page to page as holes are punched
into each sheet individually.
Reference
For printing methods, see the printer driver Help.
❖ Holes Type
Type Feed Direction Paper Size
2 holes K
←
A4, A5, B5, Letter
L
←
A3, B4, A4, A5, B5, 11”×17”,
Legal, Letter, 5
1
/
2
”×8
1
/
2
”,
7
1
/
4
”×10
1
/
2
”, 8
1
/
2
”×13”,
8
1
/
4
”×13”, 8”×13”
3 holes K
←
A4, B5, Letter
L
←
A3, B4, 11”×17”
