Piping Layout ESIE 05-07
1–92 Part 1 – System Outline
3
11
4
5

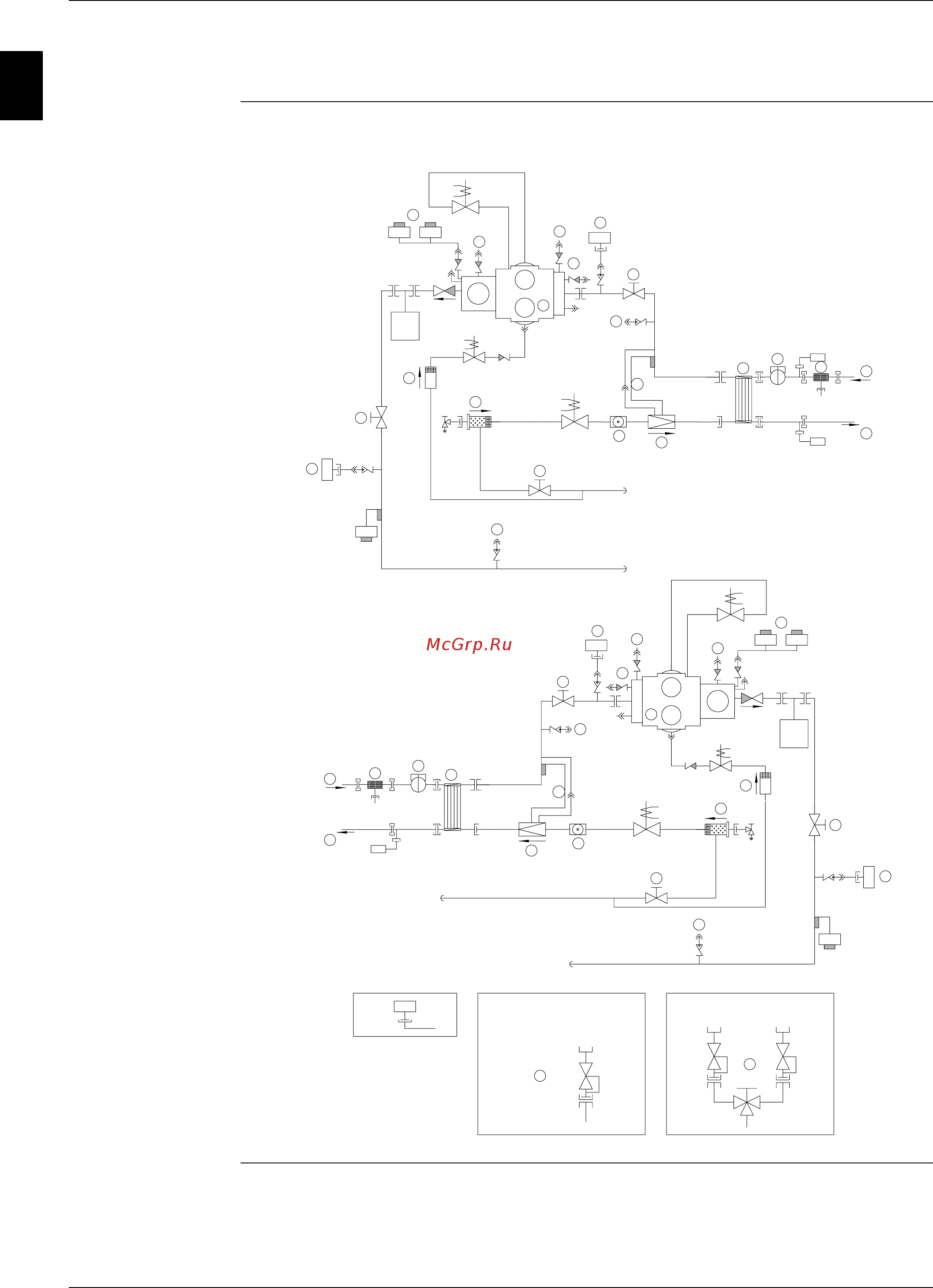

2.15 Functional Diagram Refrigeration Circuit: EWLD340 MBYNN
Functional diagram The illustration below shows the functional diagram of the refrigeration circuit of EWLD340 MBYNN. It
is also applicable for glycol applications.
WATER OUT
WATER IN
R6T
FLOWSWITCH
FILTER
FILTER
FLOWSWITCH
R3T
R4T
WATER IN
WATER OUT
Suction stopvalve
(optional)
Y26S
Y15S
STRAINER
Y16S
Y25S
STRAINER
EXPANSION
VALVE
EXPANSION
VALVE
Y11S
Y21S
S4T
B5P
B2P
B1P
S3T
S2HP S15HP
S1HP S14HP
.
Discharge
Stop valve
CHARGE
VALVE
DRIER
STOP VALVE
SIGHT GLASS
WITH MOIST IND.
EVAPORATOR
M2C
M1C
DRIER
EVAPORATOR
SIGHT GLASS
WITH MOIST IND.
STOP VALVE
CHARGE
VALVE
Discharge
Stop valve
1 or 2
1 or 2
B4P
R7T
MOUNTED IN SWITCHBOX
SAFETY
VALVES
2. DUAL PRESSURE RELIEF VALVE
(OP03)
1. STD
SAFETY VALVE
14
2
2
15
15
16
16
19
8
8
20
20
5.1
13
19
5.1
13
9
9
9
9
14
17
17
1
1
6
6
6
6
12
12
11
11
18
18
7
7
10
12
10
12
12
12
