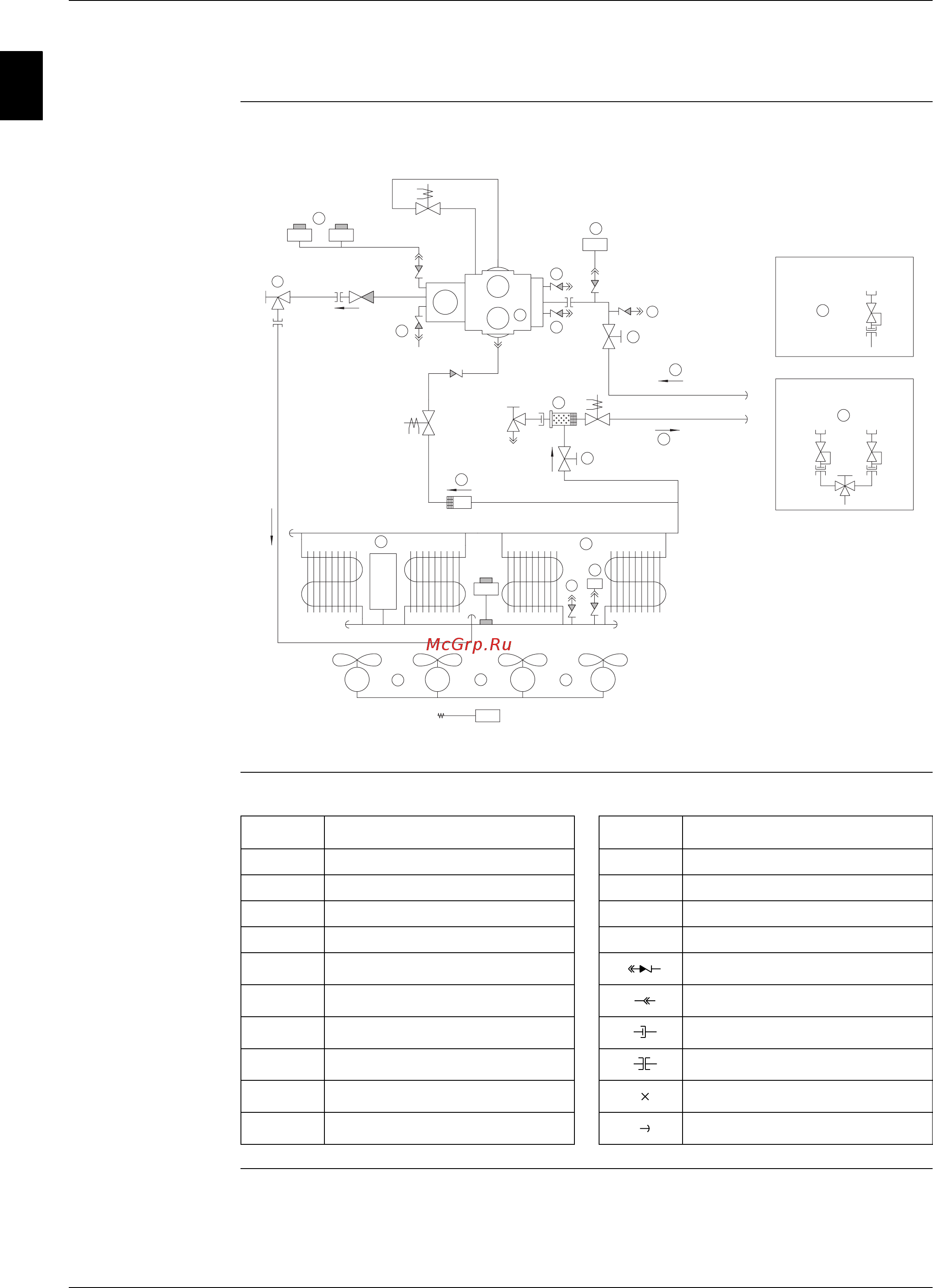

2.18 Functional Diagram Refrigeration Circuit: ERAP110~170MBYNN
Functional diagram The illustration below shows the functional diagram of the refrigeration circuit of
ERAP110~170MBYNN. It is also applicable for glycol applications.
Symbols The table below describes the symbols.
1
or
2
1"
SAFETY VALVES
2. DUAL PRESSURE RELIEF
VALVE (OP03)
1"
1. STD
SAFETY VALVE
1"
GAUGE
PORT
GAUGE PORT
SERVICE
PORT
SERVICE PORT
SUCTION
STOPVALVE
B1P
S14HP
Y11S
S1HP
Y15S
STRAINER
M1C
CONDENSER
LIQUID STOP VALVE
Y16S
DRIER+CHARGE
VALVE
B2P
S3T
R5T
M14FM13FM12FM11F
11
10
12
14
13
8
2
17
17
18
1
2
3
3
3
6
6
7
7
7
20
12
12
Symbol Description Symbol Description
M11F Condenser fan motor B2P High pressure transmitter
M12F Condenser fan motor Y11S Unloader solenoid valve
M13F Condenser fan motor Y15S Liquid injection solenoid valve
M14F Condenser fan motor Y16S Liquid line solenoid valve
M1C Compressor motor1 Check valve
S1HP High pressure switch Flare connection
S14HP High pressure switch Screw connection
S3T Discharge temperature controller Flange connection
R5T Ambient temperature sensor Pinched pipe
B1P Low pressure transmitter Spinned pipe
