ESIE05-07 Pre-Test Run Checks
Part 4 – Commissioning and Test Run 4–15
3
4
5
1
1.10 Water Pressure Drop through Heat Recovery Condenser: EWTP110~540MBYNN
Water pressure
drop

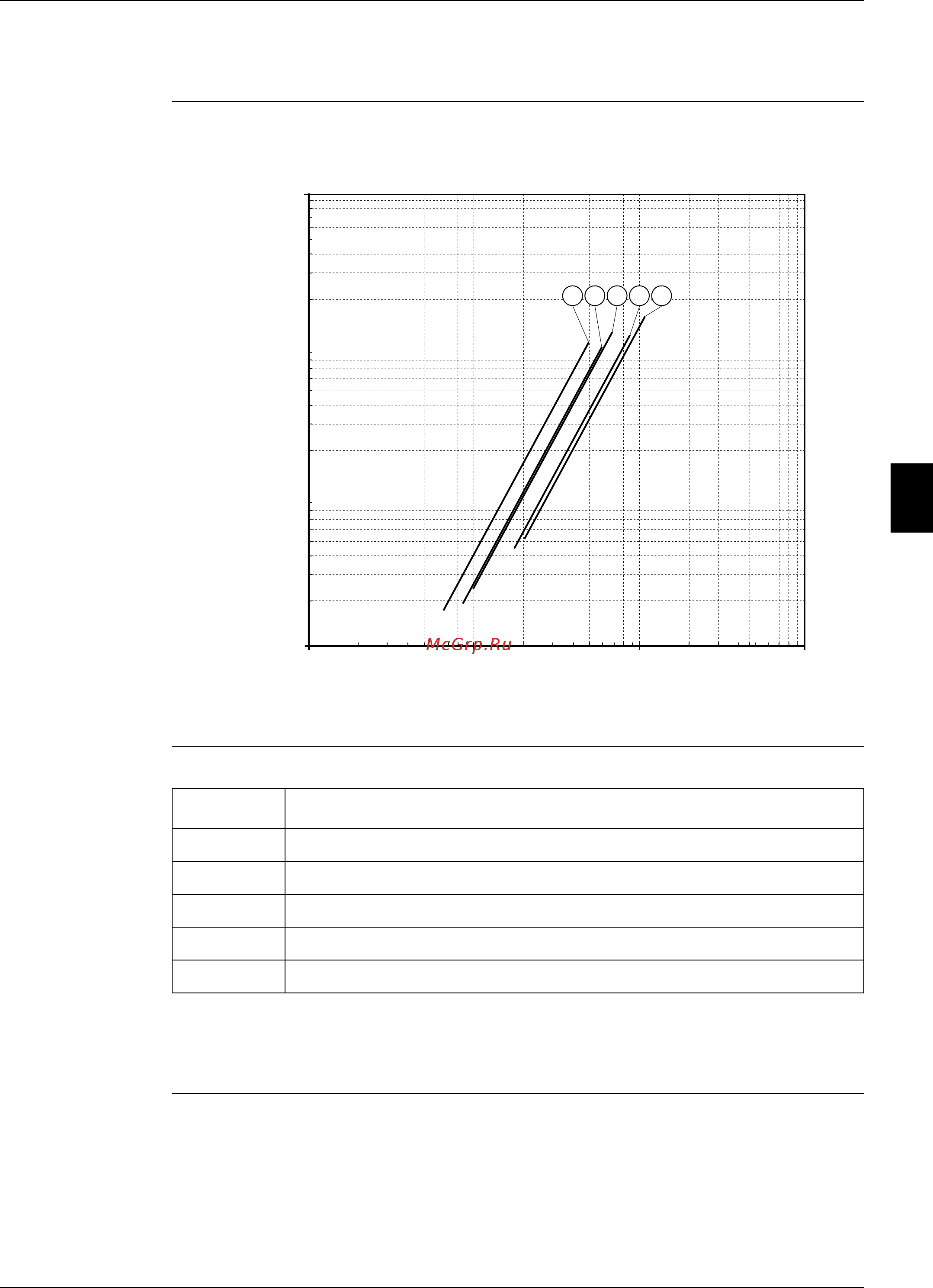

The illustration below shows the water pressure drop through heat recovery condenser for
EWTP110~540MBYNN.
Symbols The table below describes the symbols.
Selecting a flow outside the curves can cause damage to or malfunction of the unit. See also
minimum and maximum allowed water flowrange. See "Outlook Drawing:
EWTP110~160MBYNN" on page 1–52.
10010
10
100
1000
1000 10000
1
Flow [l/min]
Pressure drop [kPa]
1 2 3 4 5
Symbol Description
(1) For EWTP110MBYNN
(2) For EWTP140MBYNN
(3) For EWTP160/EWTP200/EWTP400 (2x)/EWTP460 (2x)/EWTP540MBYNN (2x)
(4) For EWTP280MBYNN
(5) For EWTP340MBYNN
ESIE05-07.book Page 15 Wednesday, October 11, 2006 10:42 AM
