Troubleshooting of Inverter with the Status Display Panel ESIE05-07
3–18 Part 3 – Troubleshooting
3
1
3
4
5

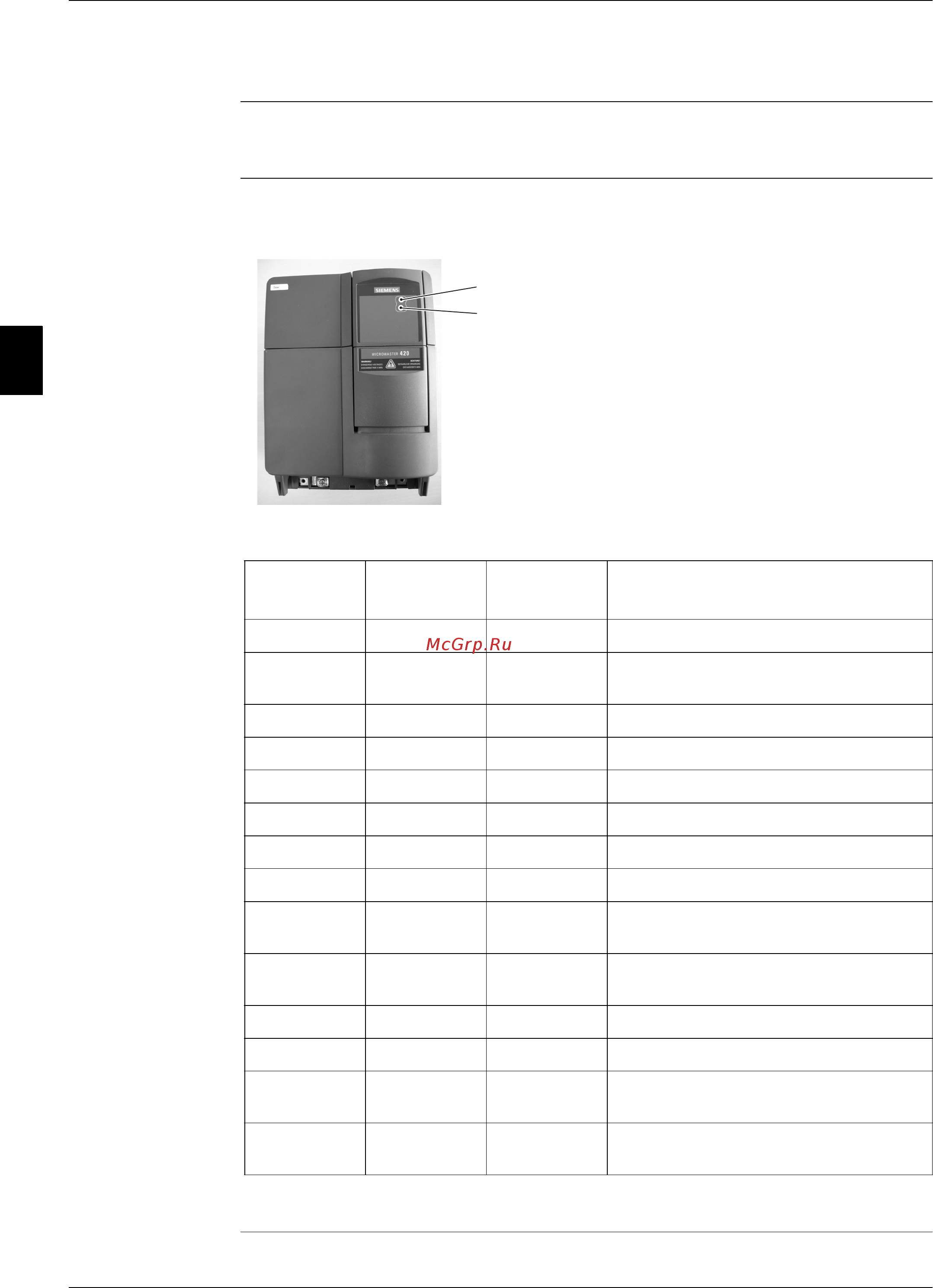

3.2 Troubleshooting of Inverter with the Status Display Panel
Warning: only a licensed electrician is allowed to carry out an inspection on the status display
panel as this inspection requires the switch box to be opened.
The operating status of the inverter is indicated by the green and yellow LEDs on the Status Display
Panel. These LEDs indicate the following warnings and fault states.
Remark: R1 - on time 900 m sec
R2 - on time 300 m sec
Green LED Yellow LED
Priority
display
Drive status definitions
OFF OFF 1 Mains not present
OFF ON 8 Inverter fault - other than the ones listed
below
ON OFF 13 Inverter running
ON ON 14 Ready to run - standby
OFF Flashing -R1 4 Fault overcurrent
Flashing -R1 OFF 5 Fault overcurrent
Flashing -R1 ON 7 Fault motor overtemperature
ON Flashing -R1 8 Fault inverter overtemperature
Flashing -R1 Flashing -R1 9 Warning current limit - Both LEDs are flash-
ing at the same time
Flashing -R1 Flashing -R1 11 Other warnings - Both LEDs are flashing
alternately
Flashing -R1 Flashing -R2 6/10 Undervoltage trip/undervoltage warning
Flashing -R2 Flashing -R1 12 Drive is not ready - Display state > 0
Flashing -R2 Flashing -R2 2 ROM failure - Both LEDs are flashing at the
same time
Flashing -R2 Flashing -R2 3 RAM failure - Both LEDs are flashing
alternately
1 Green LED
2 Yellow LED
