General Outline ESIE 05-07
1–56 Part 1 – System Outline
3
11
4
5

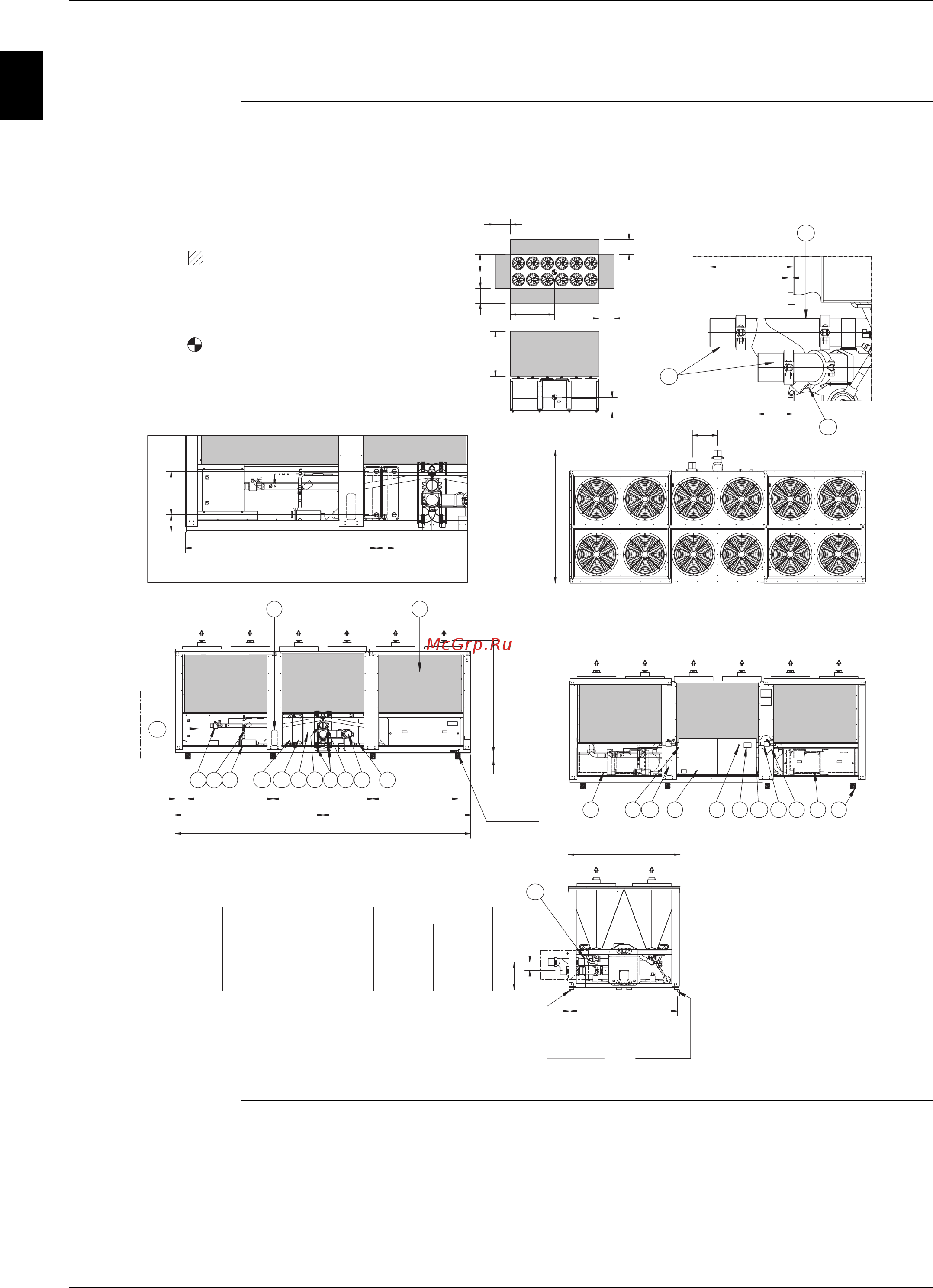

1.29 Outlook Drawing: EWTP400~540MBYNN
EWTP400~
540MBYNN
The illustration below shows the outlook, the dimensions and the installation and service space of the
unit (mm).
MODEL
EWTP400MBYNN
EWTP460MBYNN
EWTP540MBYNN
IN (O.D.)
Flexible joint 5"
Flexible joint 5"
Flexible joint 5"
OUT (O.D.)
Flexible joint 5"
Flexible joint 5"
Flexible joint 5"
IN (GAS M)
2"
2"
2"
OUT (GAS M)
2"
2"
2"
HOT WATERCHILLED WATER
26
27
28
21 3
1
29
DETAIL 2
DETAIL 1
4
8x ∅20 holes
for fixation
4x ∅20 holes
for fixation
4x ∅20 holes
for fixation
120 2250
2653
505
415
148
25
1000
1000
1000
3000
1170
519
206
2286 212
AIR AIR AIR AIR AIR AIR
AIR AIR AIR AIR AIR AIR
AIR AIR
14
22 16 15 17 20 8 19 5 18
1012119224231376
25
558
176
41 2125
17001989
5901
==
1700
256
2238
required space: around the
unit for service and air
intake
center of gravity
