ESIE05-07 The Functional Controller for DICN
Part 2 – Functional Description 2–87
3
2
4
5
1
Stepless:
differential
thermostat

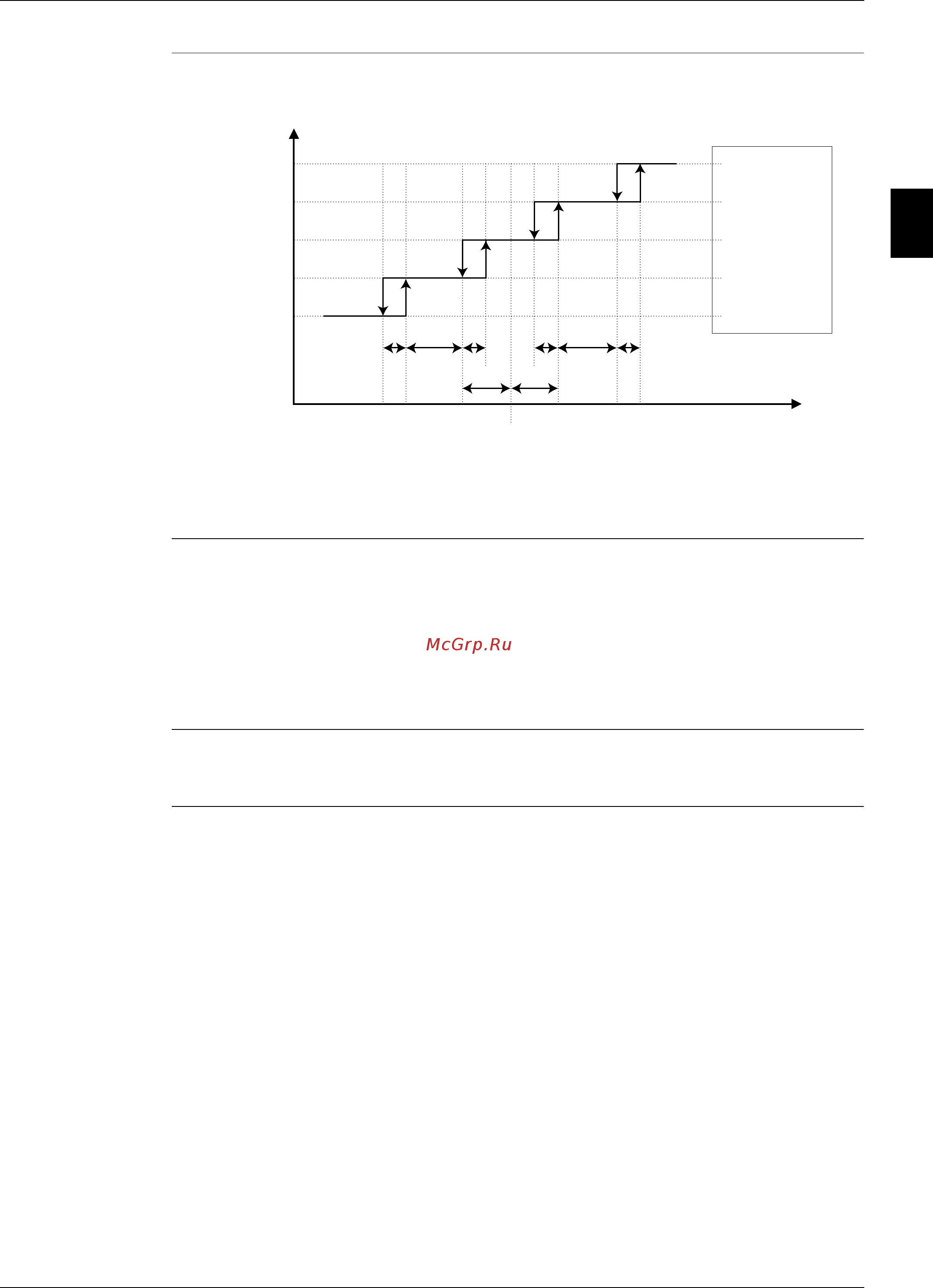

Fig. Differential thermostat.
Double thermostat
control
This mode regulates on both inlet water sensor of the evaporator and the condenser.
This is only applicable on water-cooled chillers.
The same functions are used as in inlet condenser control and inlet evaporator control.
Load-up will be requested when both functions request a load-up and the load-up time = 0. This is an
"AND" function.
Load-down will be requested when one of the functions requests a load-down and the load-down time
= 0. This is an "OR" function.
External thermostat Not accessible because DICN is not possible for condenser-less units and this function is only
available on condenser-less units.
CBC C B
A/2A/2
C
Loadup10sReq
Loadup5sReq
Loaddown5sReq
Loaddown10sReq
Loadup5sReq
Loadup10sReq
Loaddown10sReq
Loaddown5sReq
Loadup/dwn
(for inl/outl evap)
For inlet condenser
thermostat it is
reversed !
Setpoint (°C) Water temp (°C)
ESIE05-07.book Page 87 Wednesday, October 11, 2006 10:42 AM
