Daikin RXY32MTL [100/346] Compressor operating priority
![Daikin RXY16MYL [100/346] Compressor operating priority](/views2/1708728/page100/bg64.png)
Si38-304 Basic Control
Function 89
Compressor Operating Priority
*

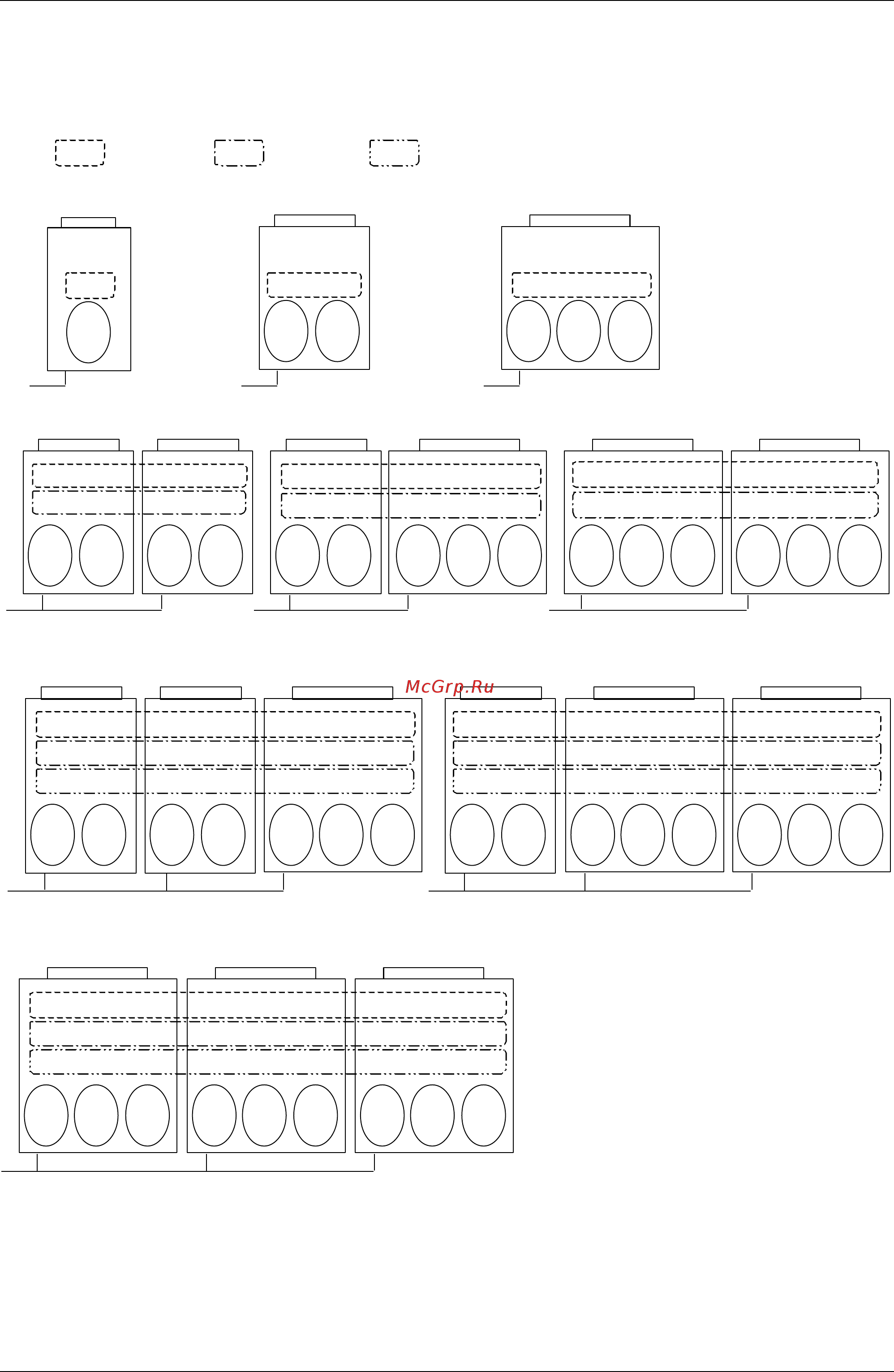

• In the case of combination of 3 outdoor units, the above diagram shows master unit, slave unit 1, and slave unit 2
from left to right.
• Compressors may operate in any pattern other than those mentioned above according to the operating status.
INV: Inverter compressor
STD1: Standard compressor 1
STD2: Standard compressor 2
Each compressor operates in the following order of priority.
In the case of multi-outdoor-unit system, each compressor operates in any of Pattern 1
through Pattern 3 according to the rotation of outdoor units.
RX(Y)5M
RX(Y)18,20,22M
RX(Y)34,36,38M
RX(Y)46,48M
RX(Y)40,42,44M
RX(Y)24,26,28M RX(Y)30,32M
RX(Y)8,10,12M RX(Y)14,16M
INV
No. 1
INV STD1
No. 1 No. 2
INV STD1 STD2
No. 1 No. 2 No. 3
INV STD1
No. 1 No. 3
INV STD1
No. 2 No. 4
INV STD1
No. 1 No. 3
INV STD1 STD2
No. 2 No. 4 No. 5
Pattern 1 Pattern 2 Pattern 3
No. 2 No. 4 No. 1 No. 3
No. 2 No. 4 No. 1 No. 3 No. 5
INV STD1
No. 1 No. 4
INV STD1 STD2
No. 3 No. 6 No. 7
No. 3 No. 6 No. 2 No. 5 No. 7
INV STD1
No. 2 No. 5
No. 1 No. 4
No. 2 No. 5 No. 1 No. 4 No. 7No. 3 No. 6
INV STD1
No. 1 No. 4
INV STD1 STD2
No. 3 No. 6 No. 8
No. 3 No. 6 No. 2 No. 5 No. 8
No. 2 No. 5 No. 1 No. 4 No. 7
INV STD1 STD2
No. 2 No. 5 No. 7
No. 1 No. 4 No. 7
No. 3 No. 6 No. 8
INV STD1 STD2
No. 2 No. 4 No. 6
No. 1 No. 3 No. 5
INV STD1 STD2
No. 1 No. 3 No. 5
No. 2 No. 4 No. 6
INV STD1 STD2
No. 3 No. 6 No. 9
No. 2 No. 5 No. 8
No. 1 No. 4 No. 7
INV STD1 STD2
No. 1 No. 4 No. 7
No. 3 No. 6 No. 9
No. 2 No. 5 No. 8
INV STD1 STD2
No. 2 No. 5 No. 8
No. 1 No. 4 No. 7
No. 3 No. 6 No. 9
