Daikin RXY32MTL [86/346] Heating oil return defrost operation
![Daikin RXY32MYL [86/346] Heating oil return defrost operation](/views2/1708728/page86/bg56.png)

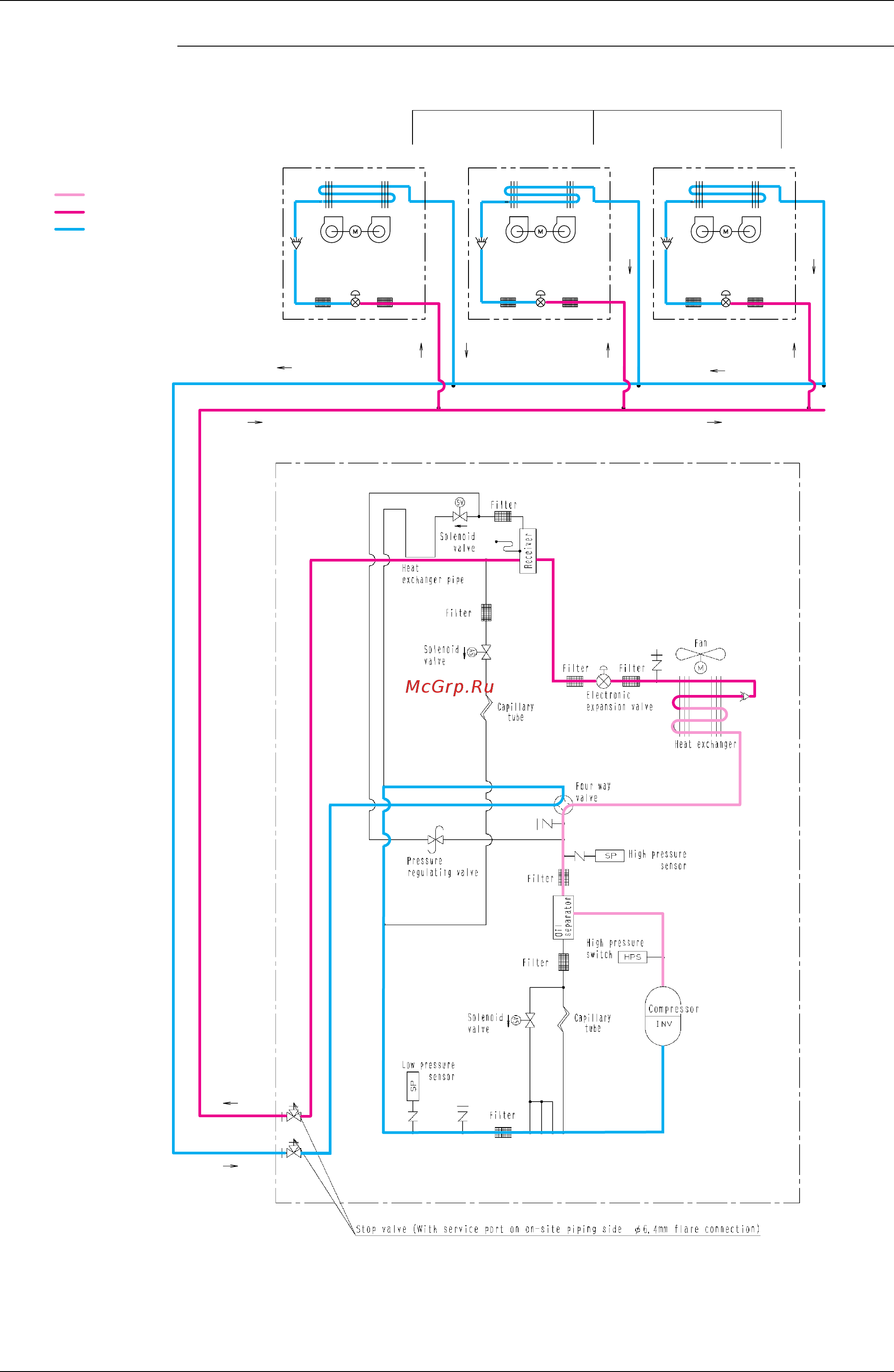

Si38-304 Refrigerant Flow for Each Operation Mode
Refirgerant Circuit 75
Heating Oil Return & Defrost Operation
Fan OFF
Fan OFF
Indoor unit
Indoor unit Indoor unit
Fan OFF
" OFF " " ON "" ON "
High temperature, high pressure gas
High temperature, high pressure liquid
Low temperature, low pressure
Indoor unit operation
Heat exchanger Heat exchanger Heat exchanger
Fan Fan Fan
Filter Filter Filter Filter Filter Filter
Thermostat "ON" Thermostat "OFF"
4D041235
EXV : Initial 448pls, then
max. 2000pls depends
on suction SH
EXV : Initial 448pls, then
max. 2000pls depends
on suction SH
EXV : Initial 448pls, then
max. 2000pls depends
on suction SH
