![Daikin RXY32MTL [84/346] Refrigerant flow for each operation mode](/img/pdf.png)
Daikin RXY32MTL [84/346] Refrigerant flow for each operation mode
![Daikin RXY36MTLE [84/346] Refrigerant flow for each operation mode](/views2/1708728/page84/bg54.png)
Si38-304 Refrigerant Flow for Each Operation Mode
Refirgerant Circuit 73

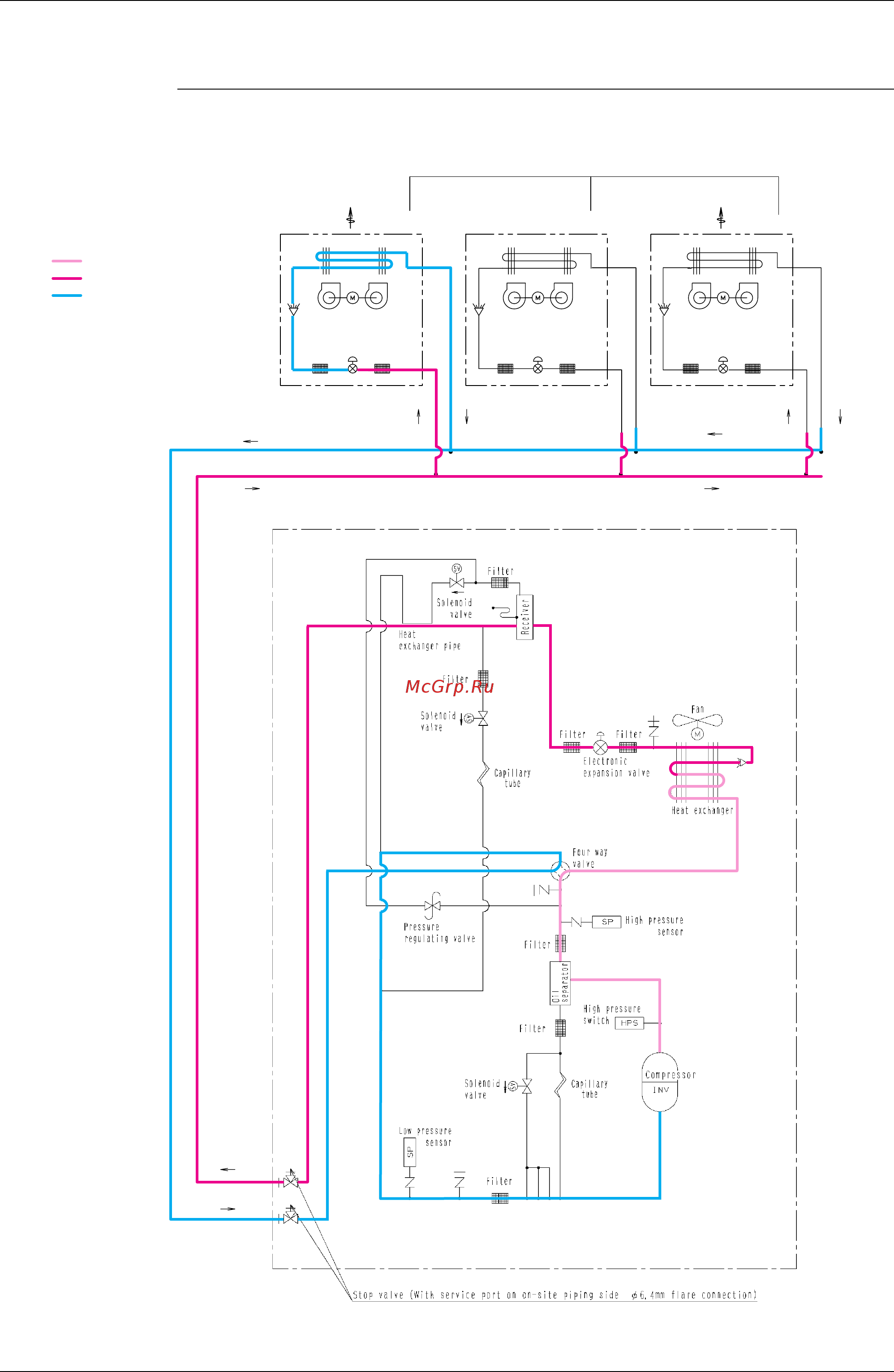

3. Refrigerant Flow for Each Operation Mode
RXY5M
Cooling Operation
Fan ON
Fan OFF
Indoor unit
Indoor unit Indoor unit
Fan ON
" OFF " " ON "" ON "
High temperature, high pressure gas
High temperature, high pressure liquid
Low temperature, low pressure
Indoor unit operation
Heat exchanger Heat exchanger Heat exchanger
Fan Fan Fan
Filter Filter Filter Filter Filter Filter
Thermostat "ON" Thermostat "OFF"
Electronic
expansion
valve
Electronic
expansion
valve
Electronic
expansion
valve
4D041235
