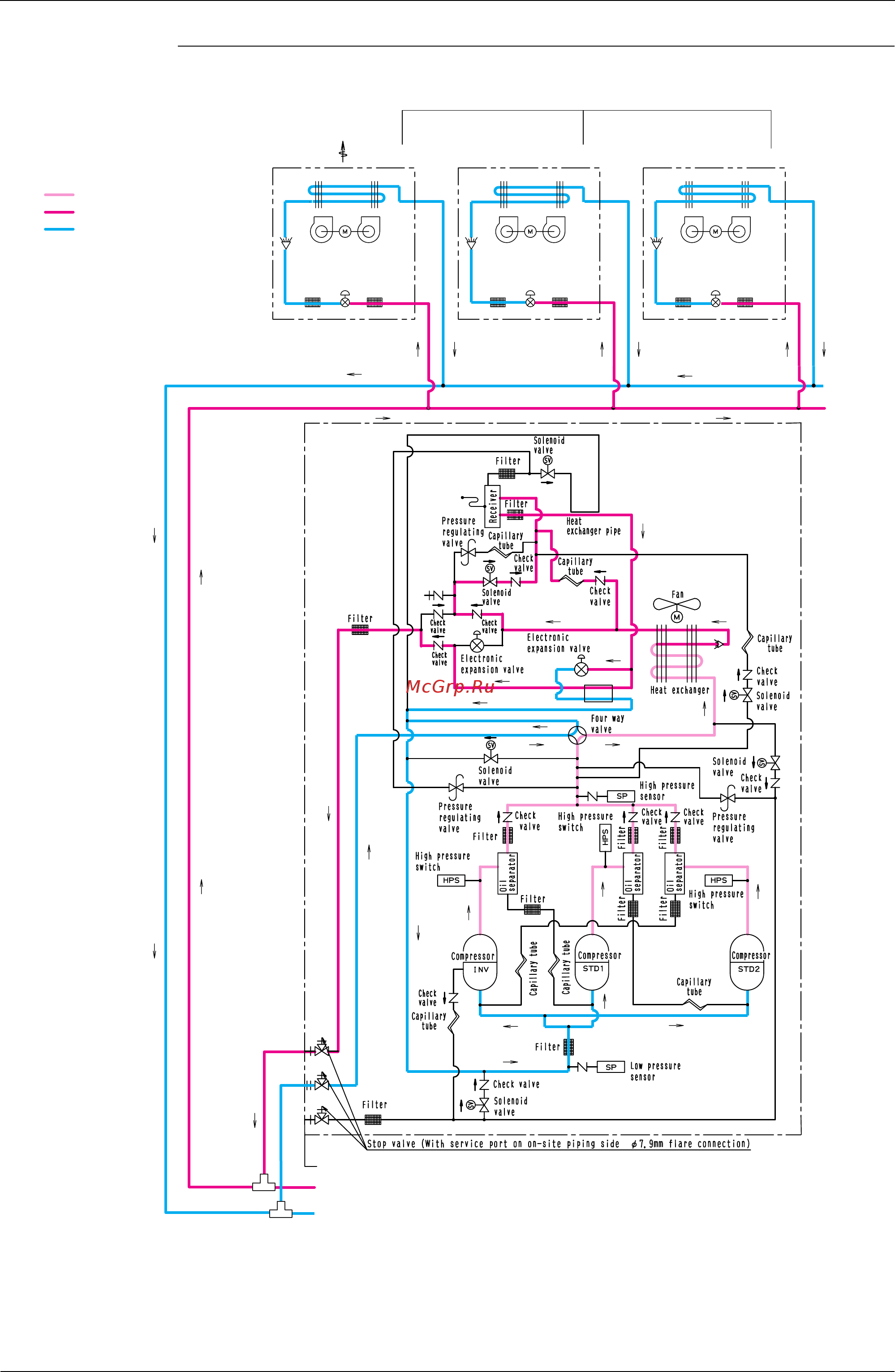

Daikin RXY32MTL [93/346] Cooling oil return operation
![Daikin RXY16MYLE [93/346] Cooling oil return operation](/views2/1708728/page93/bg5d.png)
Refrigerant Flow for Each Operation Mode Si38-304
82 Refirgerant Circuit
Cooling Oil Return Operation
4D040339A
Fan ON
Fan OFF
Indoor unit
Indoor unit Indoor unit
Fan OFF
Thermostat "ON" Thermostat "OFF"
" OFF " " ON "" ON "
High temperature, high pressure gas
High temperature, high pressure liquid
Low temperature, low pressure
Indoor unit operation
Heat exchanger Heat exchanger Heat exchanger
Fan Fan Fan
Filter Filter Filter Filter Filter Filter
S
Oil equalizing pipe to other outdoor units
Liquid piping to other outdoor units
Gas piping to other outdoor units
S
S
EXV : Normal control EXV : 200 pls EXV : 200 pls
