Protection Control Si30-813
80 Function
6.4 Inverter Protection Control
Inverter current protection control and inverter fin temperature control are performed to prevent
tripping due to a malfunction, or transient inverter overcurrent, and fin temperature increase.
∗
This control is carried out in each outside unit.

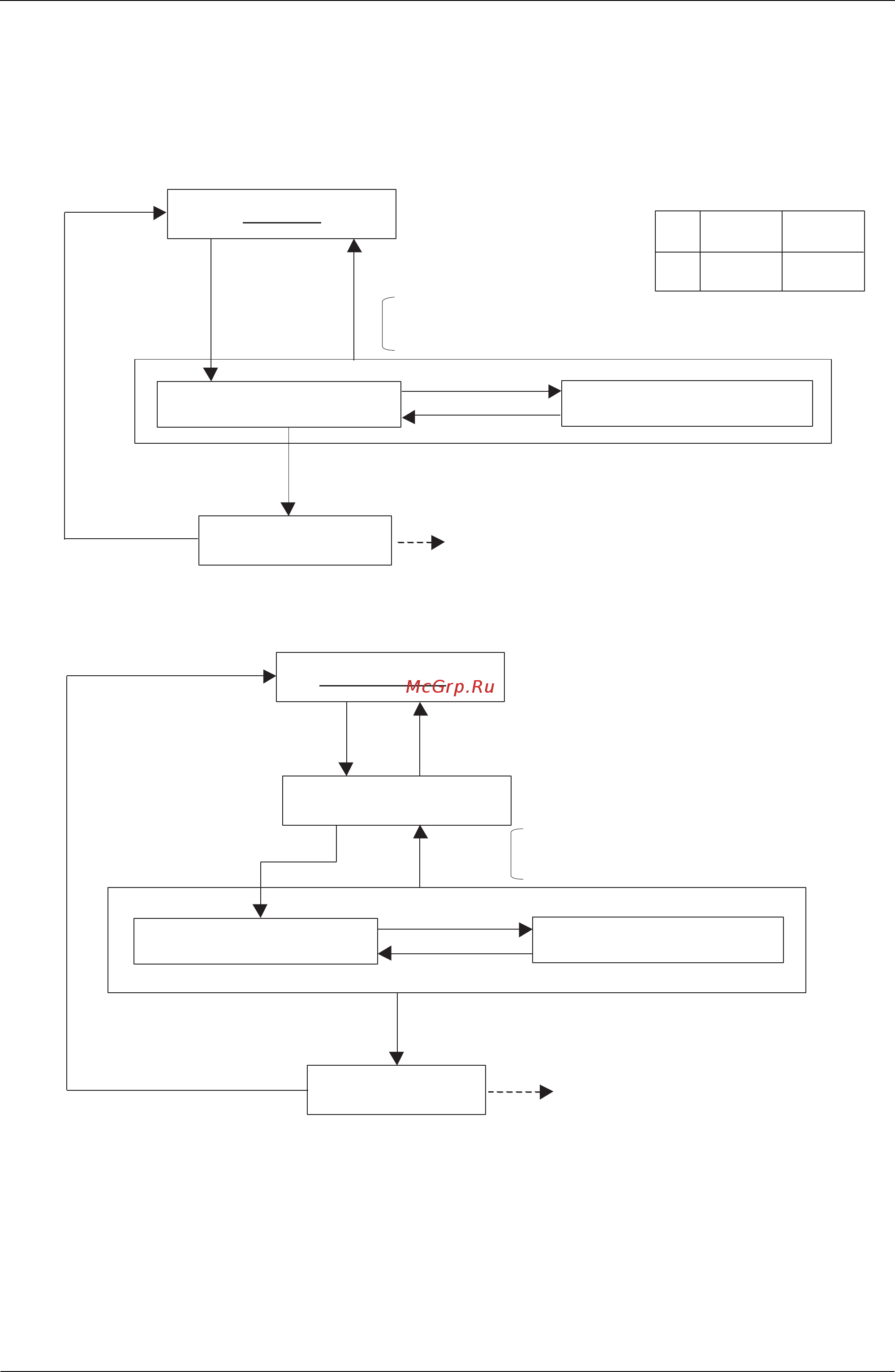

[Inverter overcurrent protection control]
[Inverter fin temperature control]
Not limited
Inverter current standby
Inverter current < Ia
INV upper limit frequency
= 230 Hz
&
Inverter current
>
17A for 5 sec.
(380V unit)
> 25.1A for 260 sec. (220V unit)
380-V unit 220-V unit
Ia 13.5 A 24.0 A
•
When occurring 3 times within 60 min.,
the malfunction code “L8 ” is output.
Comp. upper limit down 1 step/15 sec.
Comp. upper limit up 1 step/20 sec.
Inverter current > Ia
Inverter current < Ia
continues for 3 min. or more
Invertercurrent > Ia
Less than 2 times
within 60 min.
Normal operation
Tfin > 50˚C Tfin < 30˚C
Fin temp. standby
Tfin < 81˚C
Compressor up limit frequency = 230 Hz
&
Tfin > 98˚C
•
When occurring 3 times within 60 min.,
the malfunction code “L4” is output.
Tfin :
Inverter fin temperature
Cooling fan for electric
component box
Comp. upper limit down 1 step/15 sec.
Comp. upper limit up 1 step/1 min.
Tfin
<
81˚C
for continues 3 min.
=
Tfin
>
84˚C
=
Tfin
>
84˚C
=
Less than 2 times
within 60 min.
