5-7
ASUS ESC4000 DHD G4
5.2.2 Menu bar
The menu bar on top of the screen has the following main items:
Main Forchangingthebasicsystemconguration
Performance Tuning For changing the performance settings
Advanced For changing the advanced system settings
Platform Conguration For changing the platform settings
Socket Conguration Forchangingthesocketsettings
Event Logs For changing the event log settings
Server Mgmt For changing the Server Mgmt settings
Security For changing the security settings
Boot Forchangingthesystembootconguration
Tool Forconguringoptionsforspecialfunctions
Save & Exit For selecting the exit options
Toselectanitemonthemenubar,presstherightorleftarrowkeyonthekeyboarduntilthe
desired item is highlighted.

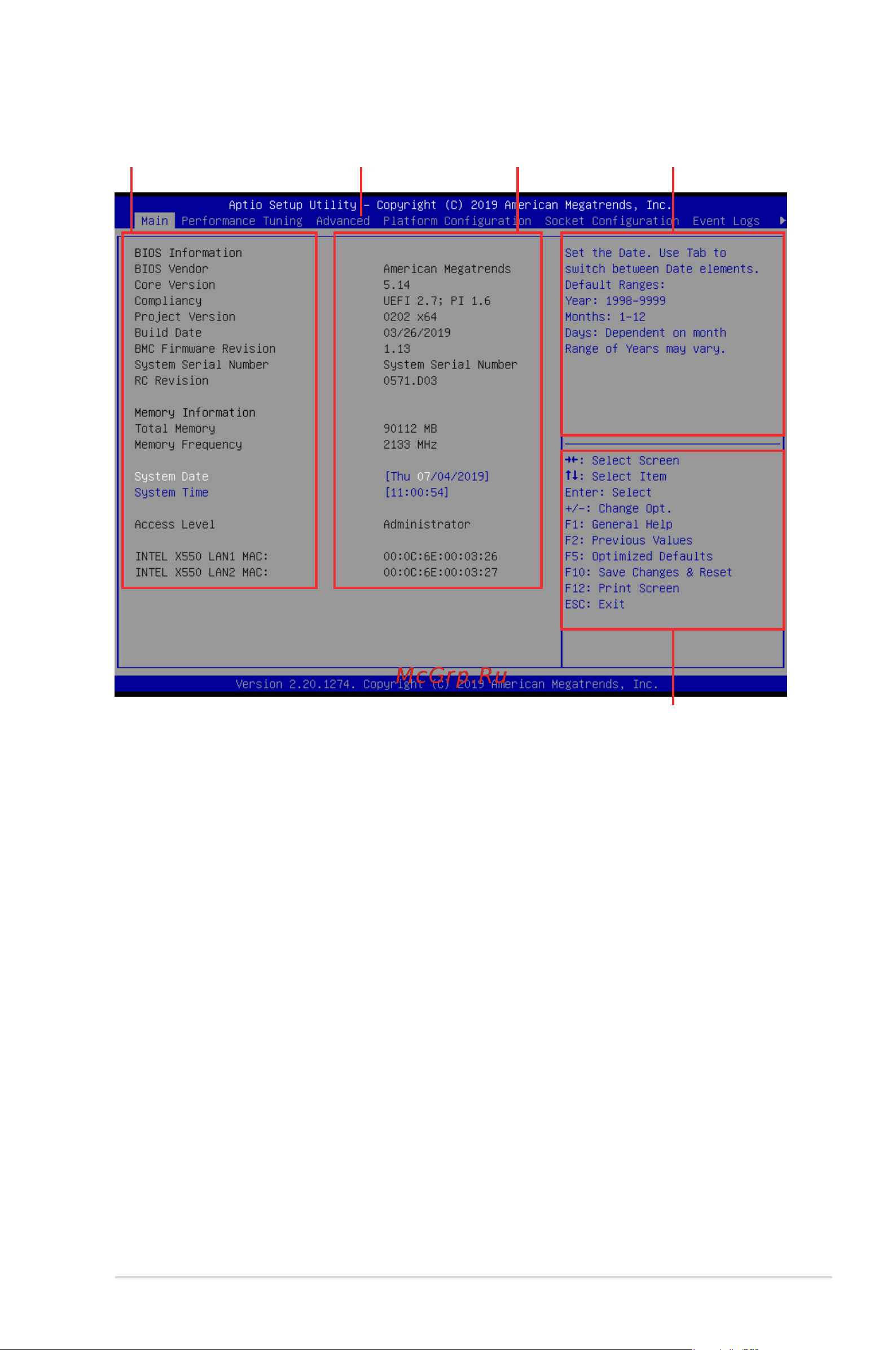

5.2.1 BIOS menu screen
Navigation keys
General helpMenu bar Conguration eldsMenu items
