5-35
ASUS ESC4000 DHD G4

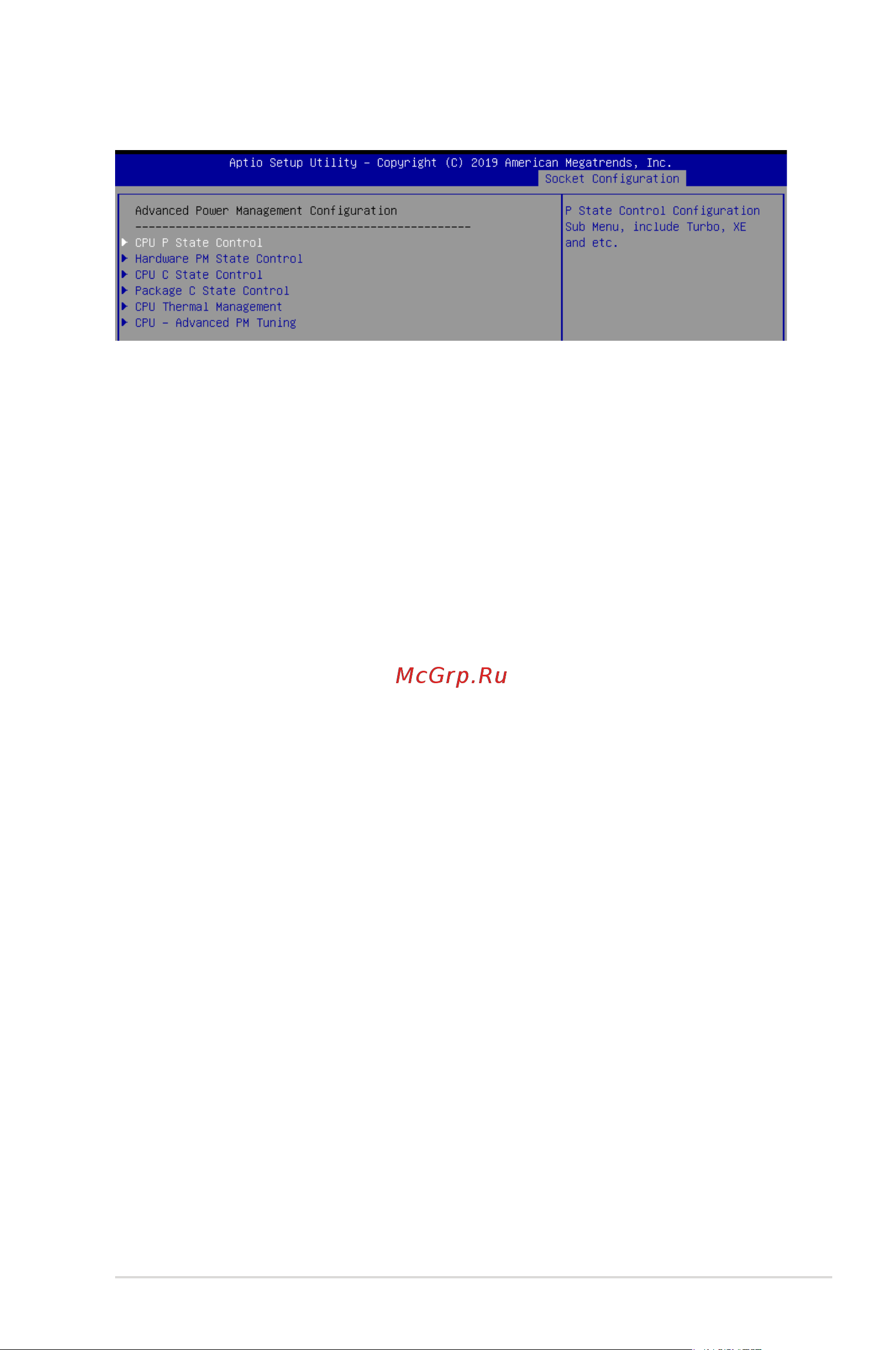

5.7.6 Advanced Power Management Conguration
CPU P State Control
Boot performance mode [Max Performance]
Allows you to switch between Boot performance mode.
Congurationoptions:[MaxPerformance][MaxEfcient][SetbyIntelNodeManager]
Energy Efficient Turbo [Enabled]
AllowsyoutoenableordisableEnergyEfcientTurbo.
Congurationoptions:[Disabled][Enabled]
Turbo Mode [Enabled]
Allows you to enable or disable Turbo Mode.
Congurationoptions:[Disabled][Enabled]
Hardware PM State Control
Hardware P-States [Native Mode]
Allows you to switch between Hardware P-States mode.
Congurationoptions:[Disabled][NativeMode][OutofBandMode][NativeModewith
noLegacySupport]
CPU C State Control
Autonomous Core C-State [Disabled]
Allows you to enable or disable Autonomous Core C-State Report.
Congurationoptions:[Disabled][Enabled]
CPU C6 Report [Auto]
Allows you to select CPU C6 Report.
Congurationoptions:[Disabled][Enabled][Auto]
Enhanced Halt State (C1E) [Enabled]
Allows you to enable or disable the Enhanced Halt State.
Congurationoptions:[Disabled][Enabled]
OS ACPI Cx [ACPI C2]
Allows you to select OS ACPI Cx Report.
Congurationoptions:[ACPIC2][ACPIC3]
