5-34
Chapter 5: BIOS Setup
Socket1/2 Conguration
ThisitemallowsyoutoconguresettingsrelatedtothecorrespondingPCIEport.
Intel(R) VT for Directed I/O (VT-d)
Intel(R) VT for Directed I/O (VT-d) [Enabled]
Allows you to enable or disable the Intel Virtualization Technology for Directed I/O.
Congurationoptions:[Disabled][Enabled]
Intel(R) VMD Technology
Intel(R) VMD for Volume Management Device on Socket 0-3
Allows you to enable or disable the Intel(R) VMD for Volume Management Device
Technologyonaspecicstack.
Congurationoptions:[Disabled][Enabled]
IIO-PCIE Express Global Options
PCI-E ASPM Support (Global) [Per-Port]
Allows you to enable or disable ASPM support for all downstream devices.
Congurationoptions:[Disabled][Per-Port][L1Only]
PCIE relaxed Ordering [Enabled]
Allows you to enable or disable PCIE relaxed Ordering.
Congurationoptions:[Disabled][Enabled]

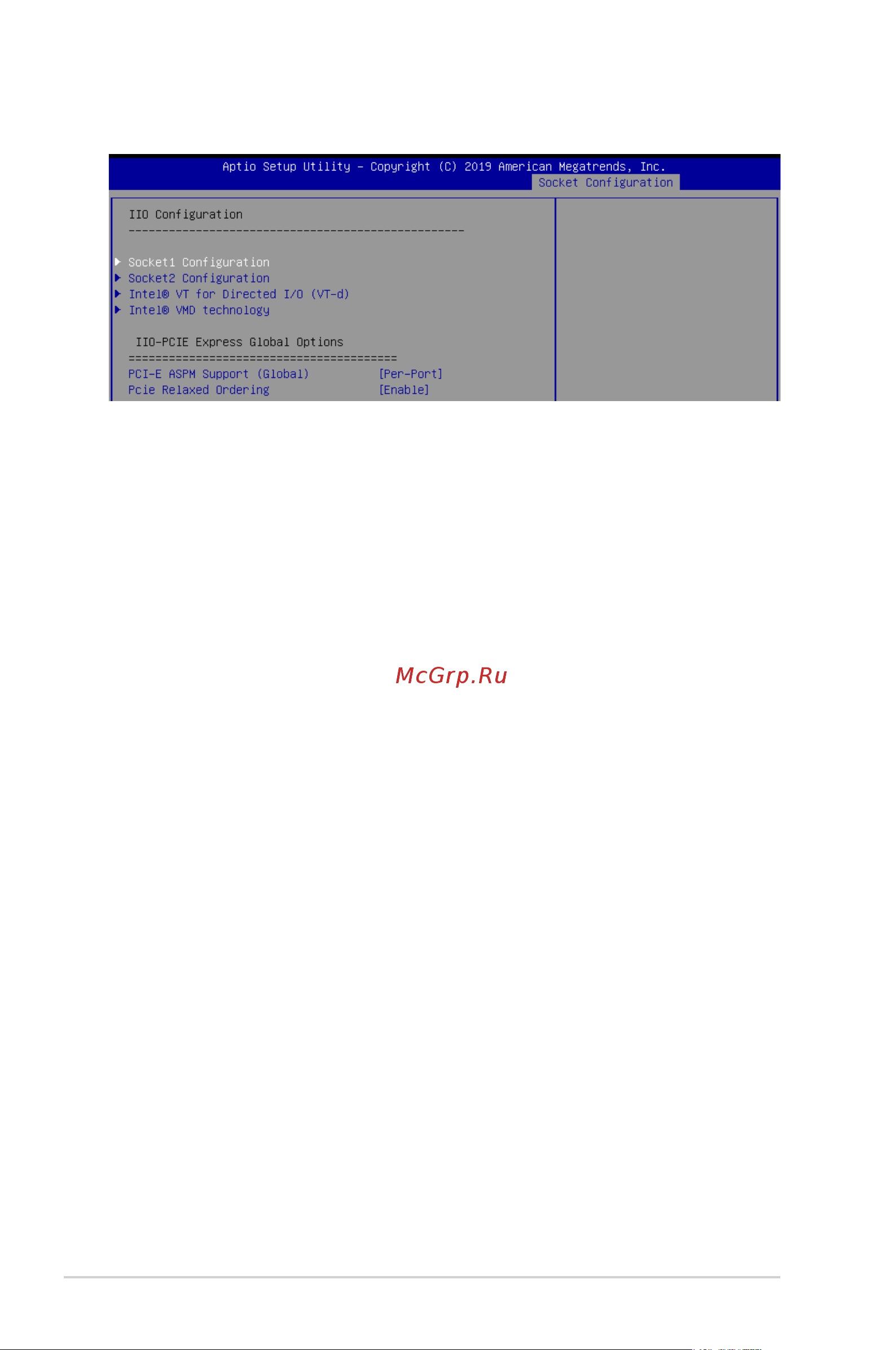

5.7.5 IIO Conguration
