Asus ESC4000 DHD G4 [127/178] Miscellaneous configuration

5-27

ASUS ESC4000 DHD G4

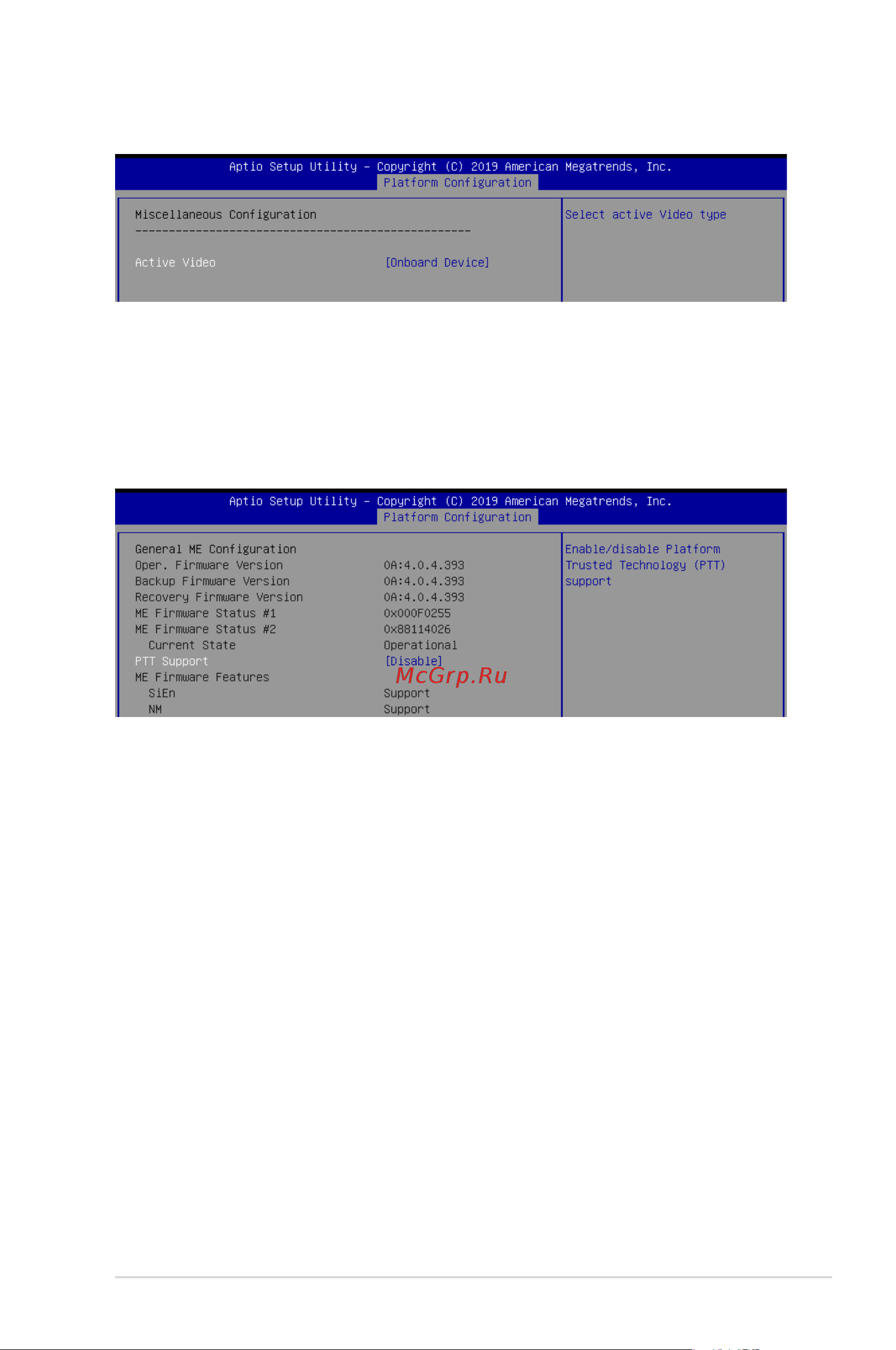

5.6.2 Miscellaneous Conguration

Active Video [Onboard Device]

Allows you to select the video type.

Congurationoptions:[Auto][OnboardDevice][OffboardDevice]

5.6.3 Server ME Conguration

Displays the Server ME Technology parameters on your system.
