Asus ESC4000 DHD G4 [57/178] Installing an expansion card into riser card 5

2-33

ASUS ESC4000 DHD G4

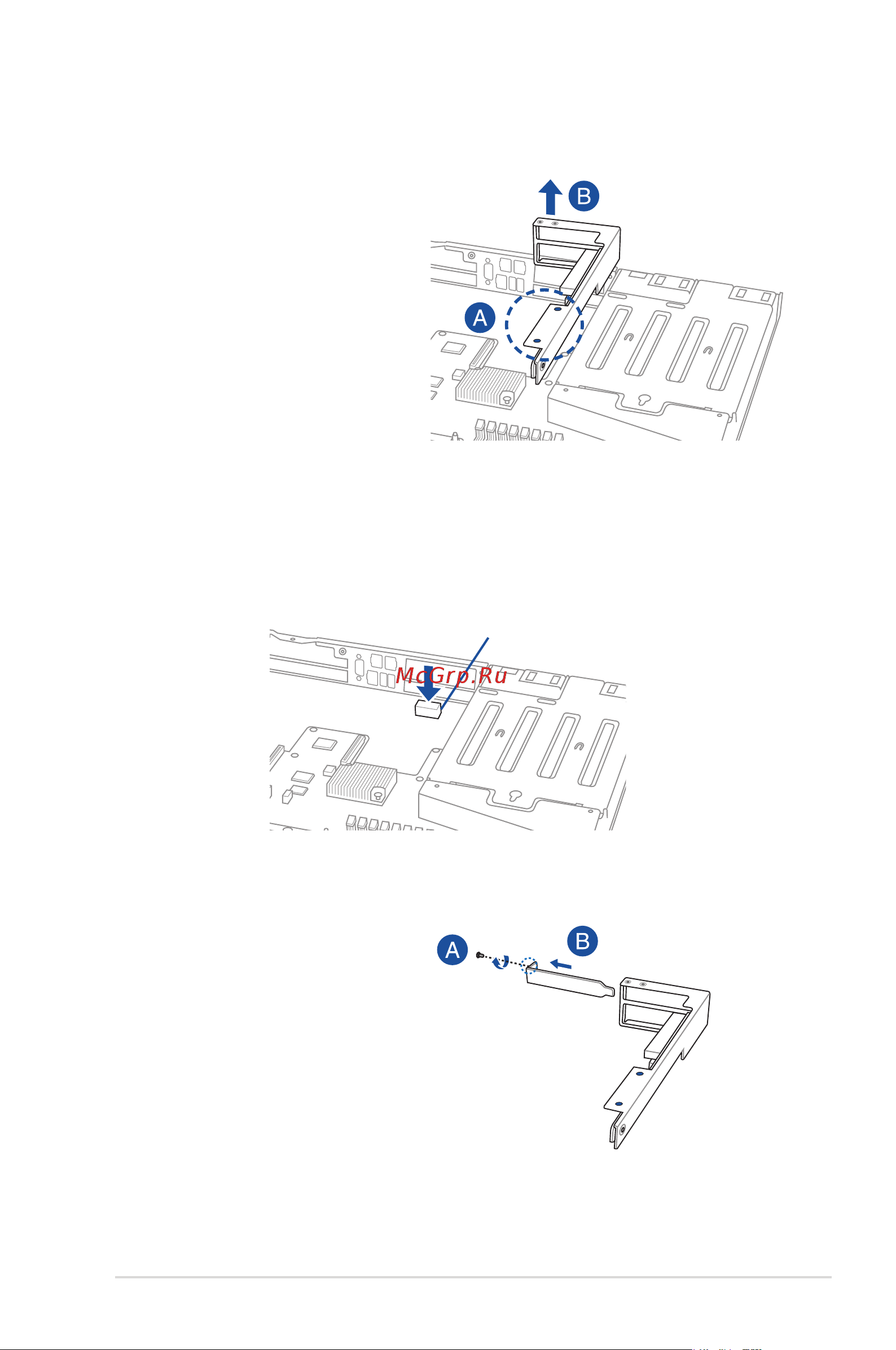

2.5.3 Installing an expansion card into riser card 5

1. Firmly hold the riser card

by the indicated area (A),

then pull it up to detach it

from the PCI-E slot on the

motherboard (B).

3. Remove the screw from

the metal bracket (A), then

remove the metal bracket

(B).

2. (optional) If you plan on installing an expansion card to the lower PCI-E slot on the riser

card, you may need to install a gasket to the chassis to prevent static electricity from

damaging the expansion card.

Gasket
