ASUS ESC4000 DHD G4
1-7

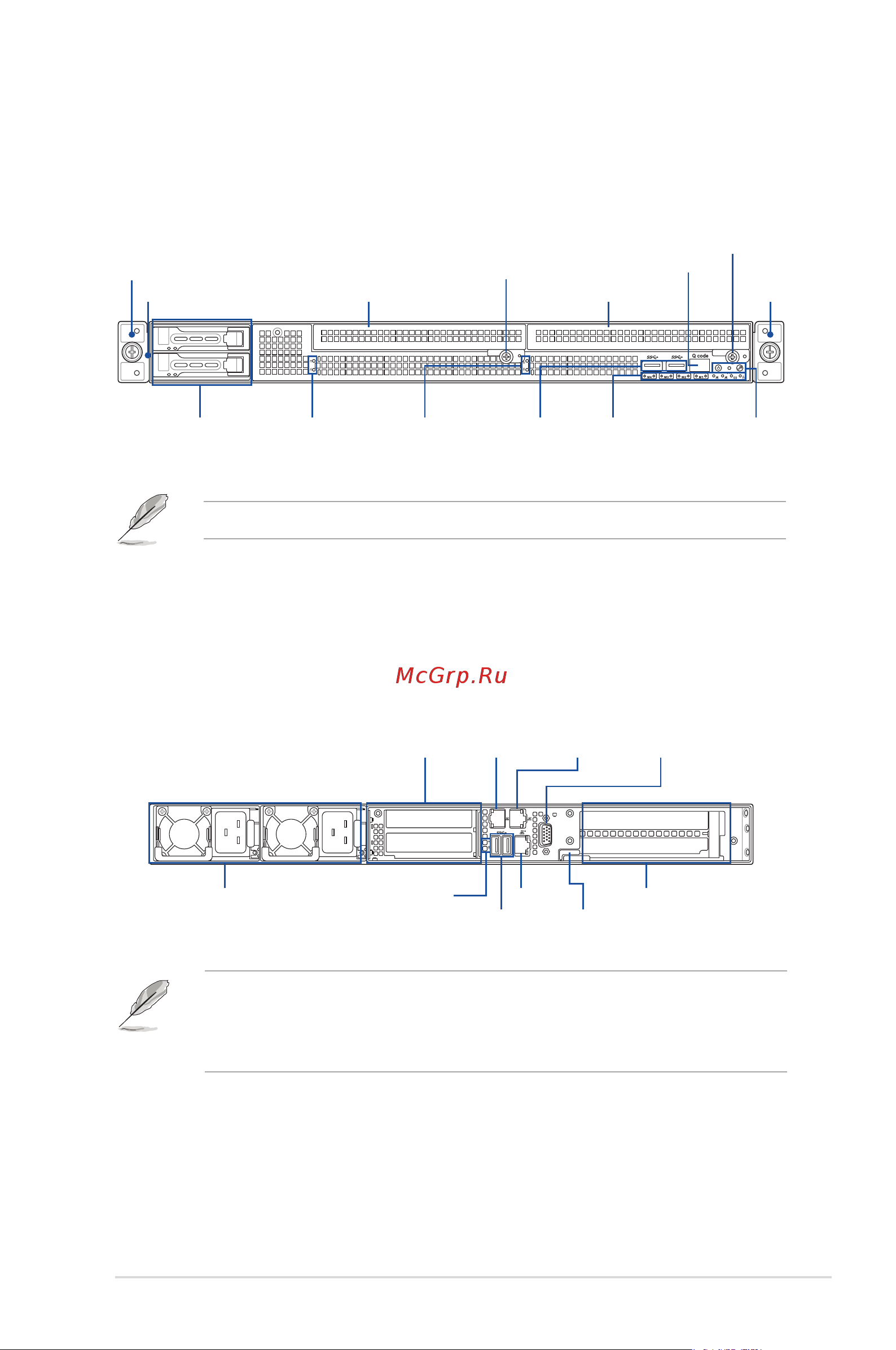

1.4 Front panel features
The barebone server features a simple yet stylish front panel. The power and reset buttons,
LED indicators, and USB ports are located and easily accessible on the front panel.
FrontpanelLEDsUSB3.2
Gen 1 ports
USB3.2Gen1ports
Steelhandle
Steel
handle
Hot-swap2.5-inch
storagebay1and2
Hot-swap2.5-inchstoragebay3
Storagebayreleasethumbscrew
Storagebayreleasethumbscrew
Assettag
Powerbutton
withLED/Reset
button/Location
buttonwithLED
Refer to the 1.7LEDinformation section for the LED descriptions.
Q-code/Port80LED
1.5 Rearpanelfeatures
The expansion slots and system power socket is located on the rear panel of the server.
The middle part includes the I/O shield with openings for the rear panel connectors on the
motherboard.
• Refer to the 1.7LEDinformation section for the LED descriptions.
• The rear I/O ports do not appear on the rear panel if motherboard is not present.
• The DM_LAN1 port is for ASUS ASMB9-iKVM controller only.
VGAport
Half-length/Low-proleexpansionslots
Powercordconnectorand
Redundantpowersupplies
LANport2LANport1
DM_LAN1
Externalfancagemetalcover
Full-lengthExpansionslots
Hot-swap2.5-inch
storagebay4
RearpanelLEDs
Storagedevice
statusLEDs
Storagedevice
statusLEDs
