Asus ESC4000 DHD G4 [38/178] Storage devices

Chapter 2: Hardware Setup

2-14

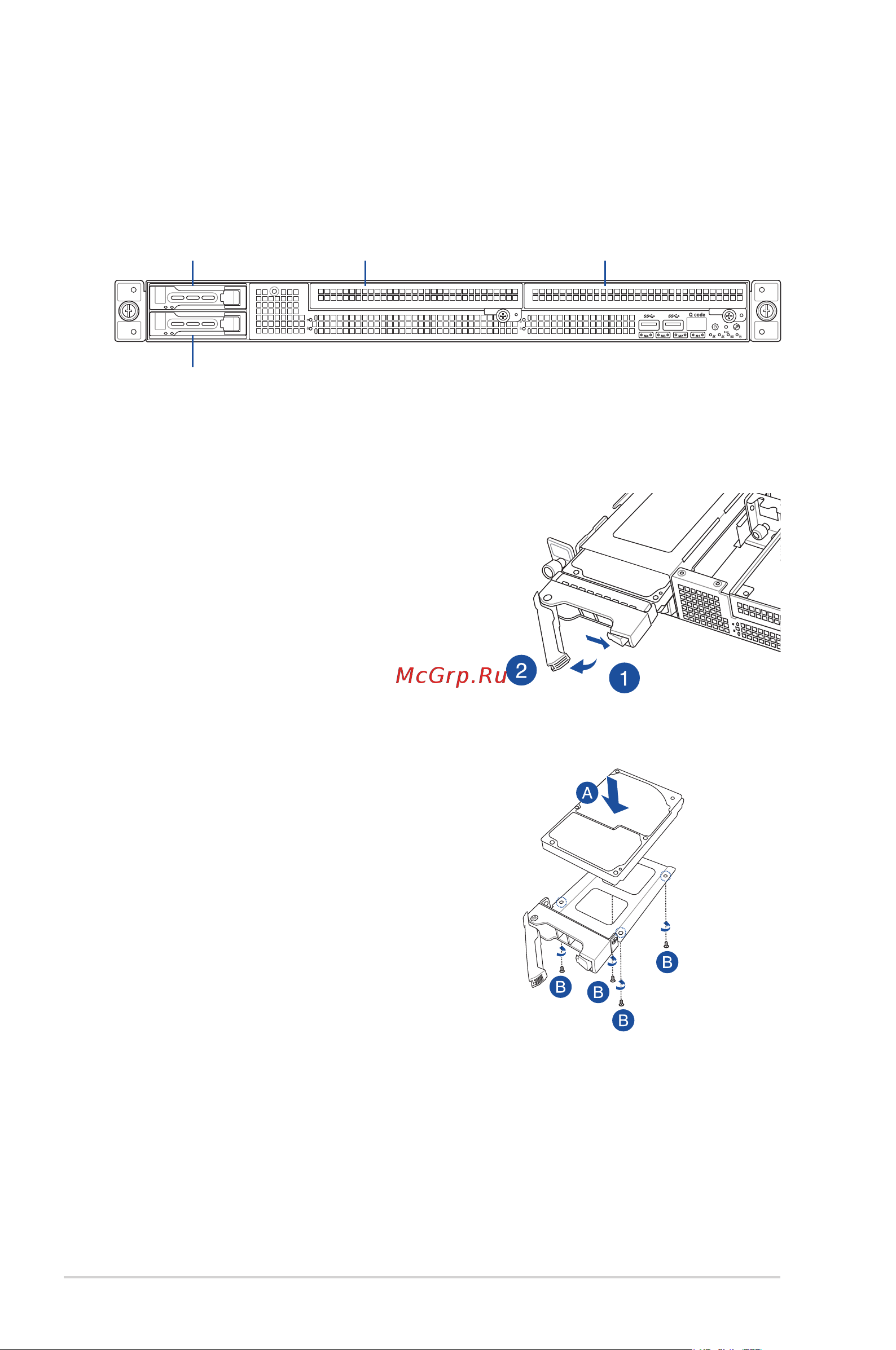

2.4 Storage devices

The ESC4000 DHD G4 series supports 2.5-inch storage devices. The storage device installed

in the storage device bay connects to the motherboard via the backplane.

1. Press the spring lock.

2. Pull the tray lever outwards to remove

the storage device tray.

3. Prepare the storage device and the

bundled set of screws.

4. Place the storage device into the tray (A)

then secure it with four screws (B).

2.4.1 Installing a storage device into bay 1 or 2

Storage bay 2

Storage bay 3

Storage bay 4

Storage bay 1
