Asus ESC4000 DHD G4 [39/178] Installing a storage device into bay 3 or 4
![Asus ESC4000 DHD G4 [39/178] Installing a storage device into bay 3 or 4](/views2/1771497/page39/bg27.png)
2-15
ASUS ESC4000 DHD G4

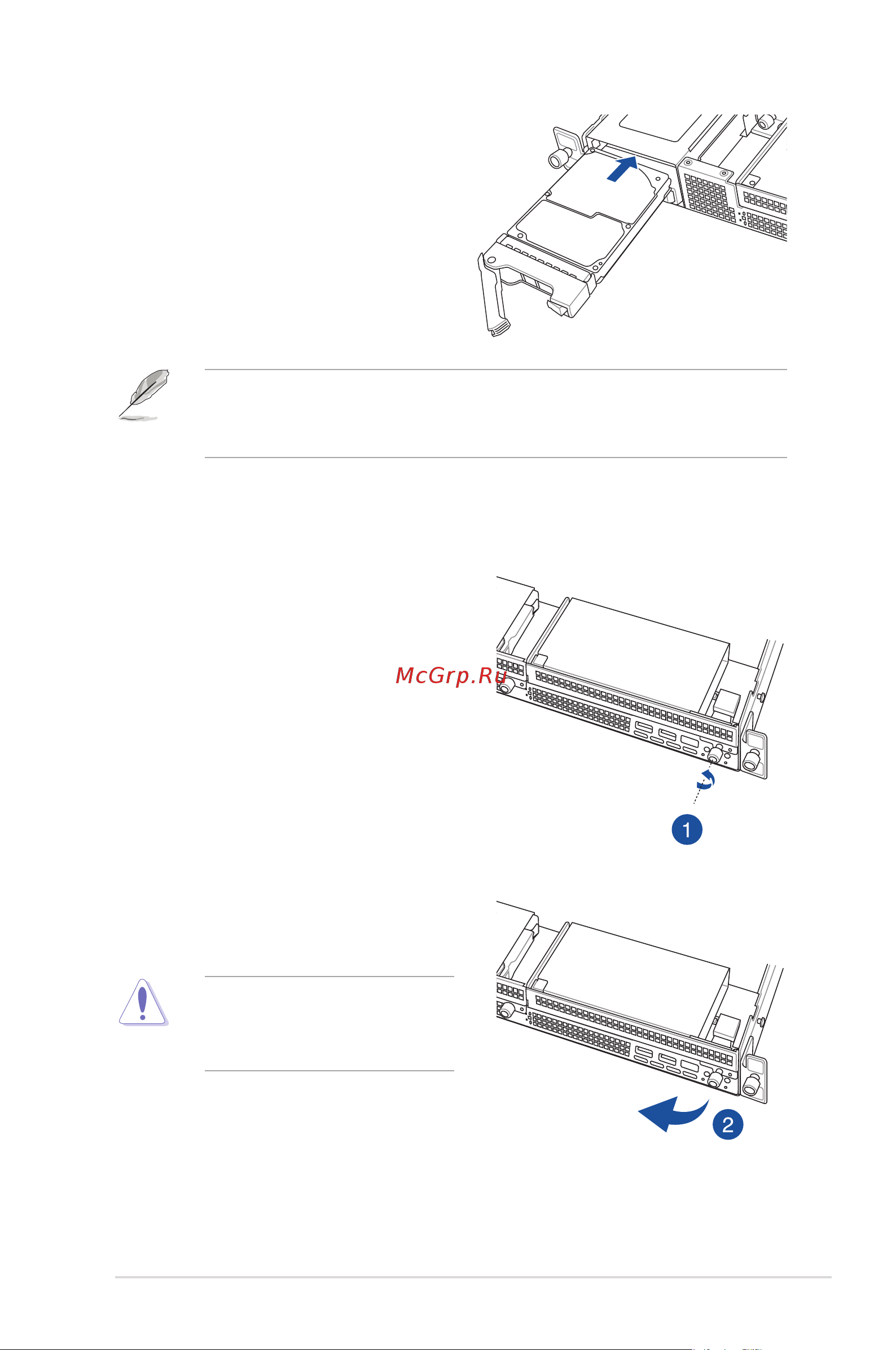

5. Push the storage device tray and
storage device assembly all the way
into the depth of the bay until the tray
lever and spring lock clicks and secures
the tray in place.
• When installed, the storage device connects to the backplane.
• The storage device tray is correctly placed when its front edge aligns with the bay
edge.
2. Hold the storage bay release
thumbscrew and swing the storage
device drawer open.
DO NOT open the storage device
drawer beyond 45 degrees. The
storage device drawer is designed to
open up to 45 degrees only.
1. Release the storage bay release
thumbscrew.
2.4.2 Installing a storage device into bay 3 or 4
