Asus ESC4000 DHD G4 [121/178] Usb configuration

5-21

ASUS ESC4000 DHD G4

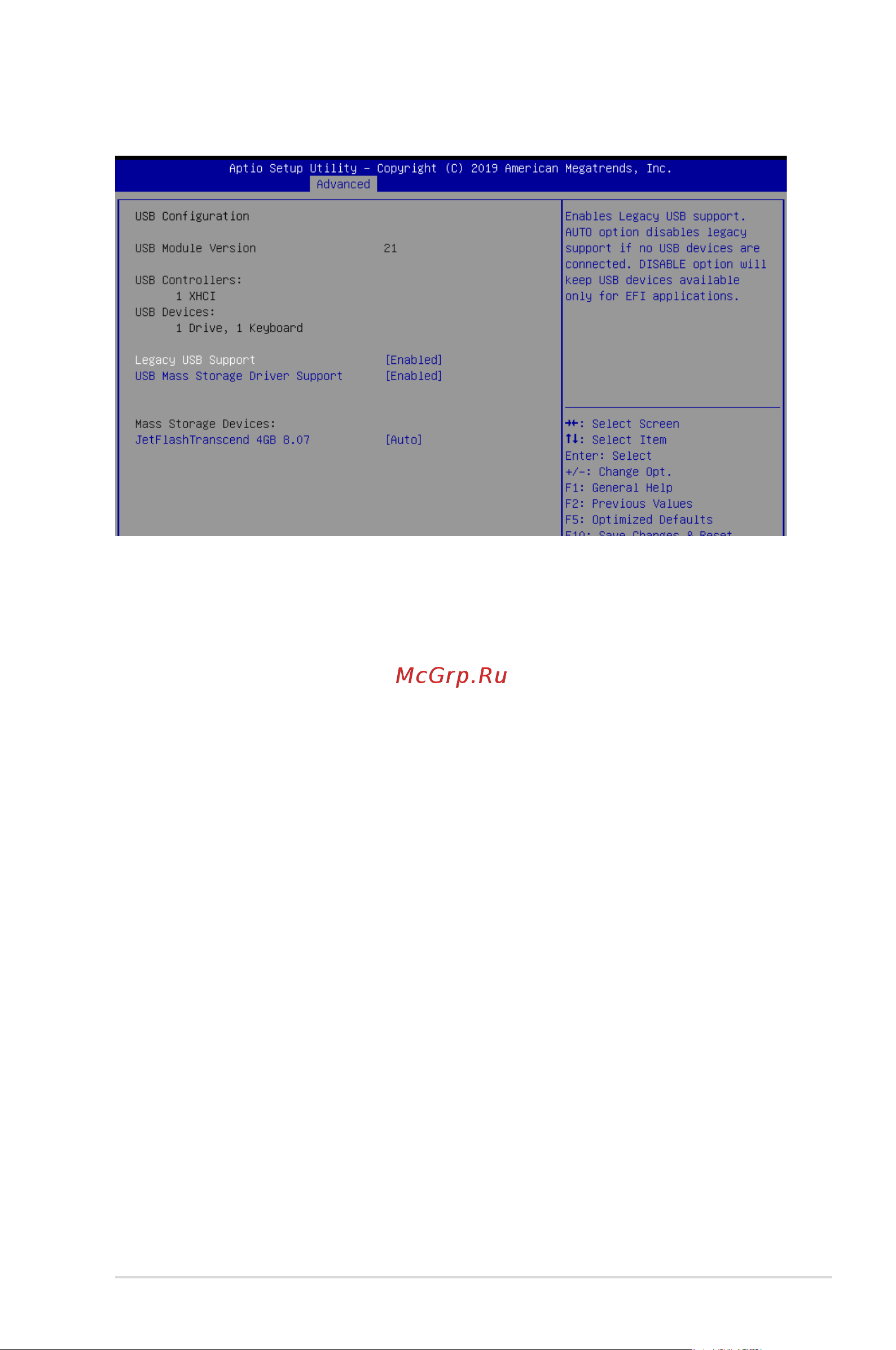

5.5.9 USB Conguration

Legacy USB Support [Enabled]

Allows you to enable or disable Legacy USB device support.

Congurationoptions:[Enabled][Disabled][Auto]

USB Mass Storage Driver Support [Enabled]

Allows you to enable or disable the USB Mass Storage driver support.

Congurationoptions:[Disabled][Enabled]

Mass Storage Devices

These items allows you to select the mass storage device emulation type.

Congurationoptions:[Auto][Floppy][ForcedFDD][HardDisk][CD-ROM]
