ASUS ESC4000 DHD G4
1-9

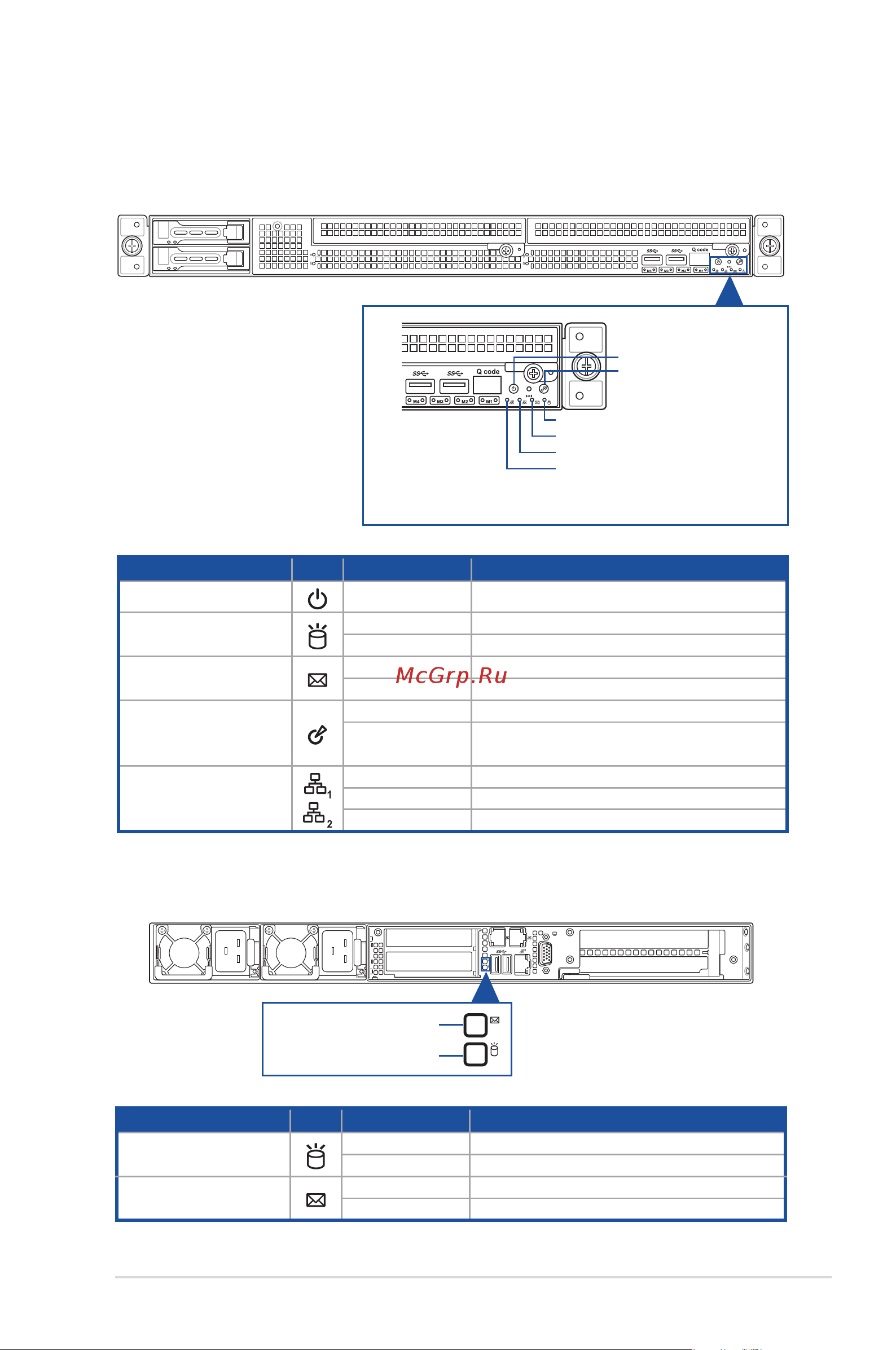

1.7 LEDinformation
1.7.1 FrontpanelLEDs
LAN1LED
MessageLED
StoragedeviceaccessLED
LAN2LED
LED Icon Display status Description
Power button with LED ON System power on
Storage Device
Access LED
OFF No activity
Blinking Data activity
Message LED
OFF System is normal; no incoming event
ON A hardware monitor event is indicated
Location button with
LED
OFF Function off
ON
Location switch is pressed (Press the
location switch again to turn off)
LAN LEDs
OFF No LAN connection
Blinking LAN is transmitting or receiving data
ON LAN connection is present
1.7.2 RearpanelLEDs
LED Icon Display status Description
Storage Device
Access LED
OFF No activity
Blinking Data activity
Message LED
OFF System is normal; no incoming event
ON A hardware monitor event is indicated
MessageLED
StoragedeviceaccessLED
PowerbuttonwithLED
LocationbuttonwithLED
