Asus ESC4000 DHD G4 [37/178] Installing a dimm on a single clip dimm socket

2-13

ASUS ESC4000 DHD G4

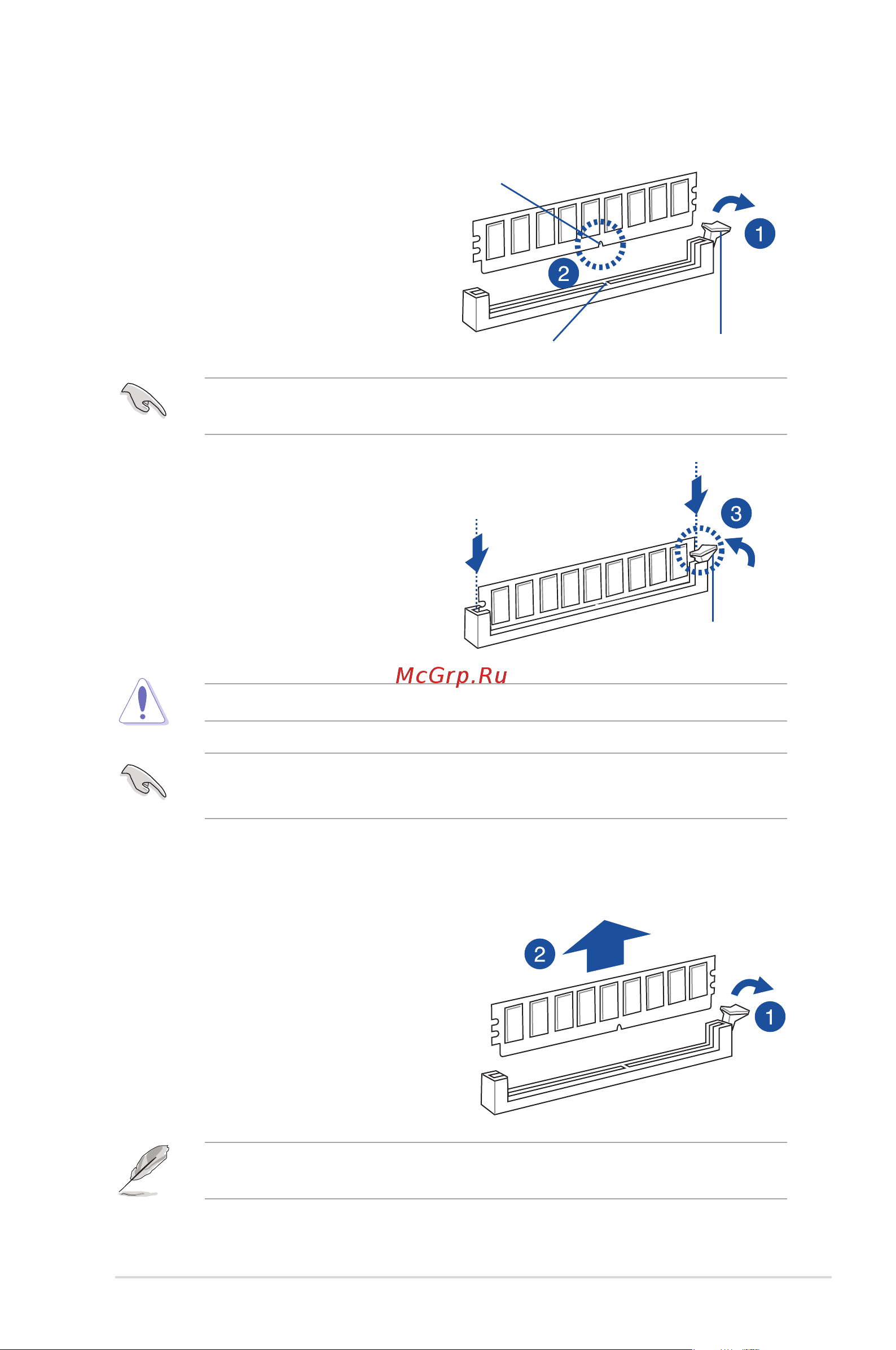

2.3.3 Installing a DIMM on a single clip DIMM socket

3. Hold the DIMM on both ends, then insert

the DIMM vertically into the socket.

Apply force to both ends of the DIMM

simultaneously until the retaining clip

snaps back into place, and the DIMM

cannot be pushed in any further to ensure

proper sitting of the DIMM.

Locked Retaining Clip

1. Press the retaining clip outward to unlock

a DIMM socket.

2. Align a DIMM on the socket such that the

notch on the DIMM matches the DIMM

slot key on the socket.

Unlocked retaining clip

DIMM notch

DIMM slot key

1. Press the retaining clip outward to unlock

the DIMM.

2. Remove the DIMM from the socket.

RemovingaDIMMfromasingleclipDIMMsocket

• To install two or more DIMMs, refer to the user guide bundled in the motherboard package.

• Refer to www.asus.com for vendor lists of the memory modules.

Support the DIMM lightly with your ngers when pressing the retaining clips. The DIMM might

get damaged when it ips out with extra force.

Always insert the DIMM into the socket VERTICALLY to prevent damage to the DIMM notch.

A DIMM is keyed with a notch so that it ts in only one direction. DO NOT force a DIMM into

a socket in the wrong direction to avoid damaging the DIMM.
