ASUS ESC4000 DHD G4
4-13

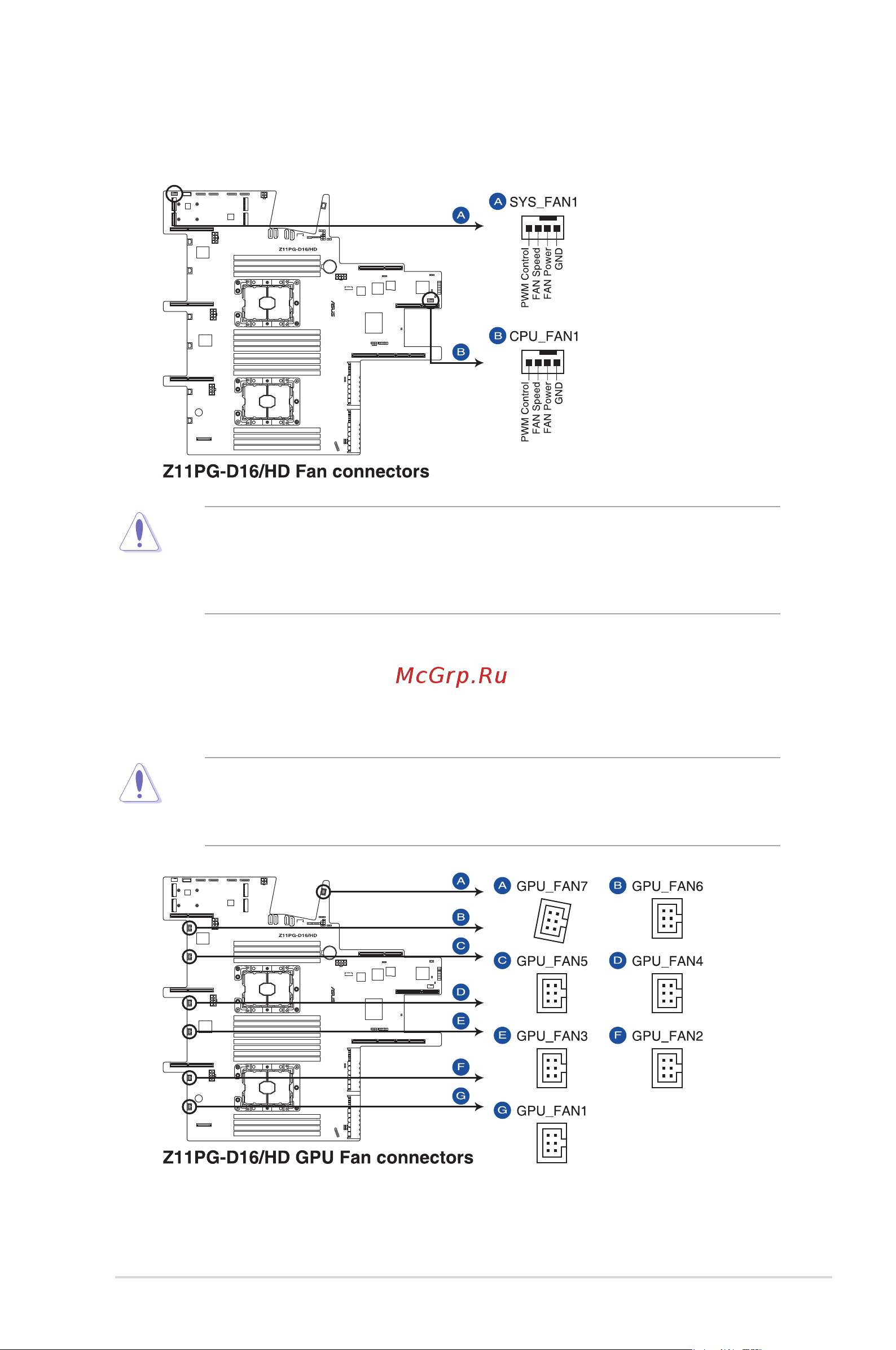

3. Fan connector
The Fan connector allows you to connect fans to cool the system.
• DONOTforgettoconnectthefancablestothefanconnectors.Insufcientair
owinsidethesystemmaydamagethemotherboardcomponents.Thesearenot
jumpers! Do not place jumper caps on the fan connectors!
• Ensurethecableisfullyinsertedintotheconnector.
4. GPU Fan connector
The GPU Fan connector supports cooling fans of 3.30 A – 3.95 A (47.4 W max.)
Connect the fan cable to the fan connector on the motherboard, ensuring that the
black wire of each cable matches the ground pin of the connector.
• DONOTforgettoconnectthefancablestothefanconnectors.Insufcientairow
inside the system may damage the motherboard components.
• Ensurethecableisfullyinsertedintotheconnector.
