4-14
Chapter 4: Motherboard Information

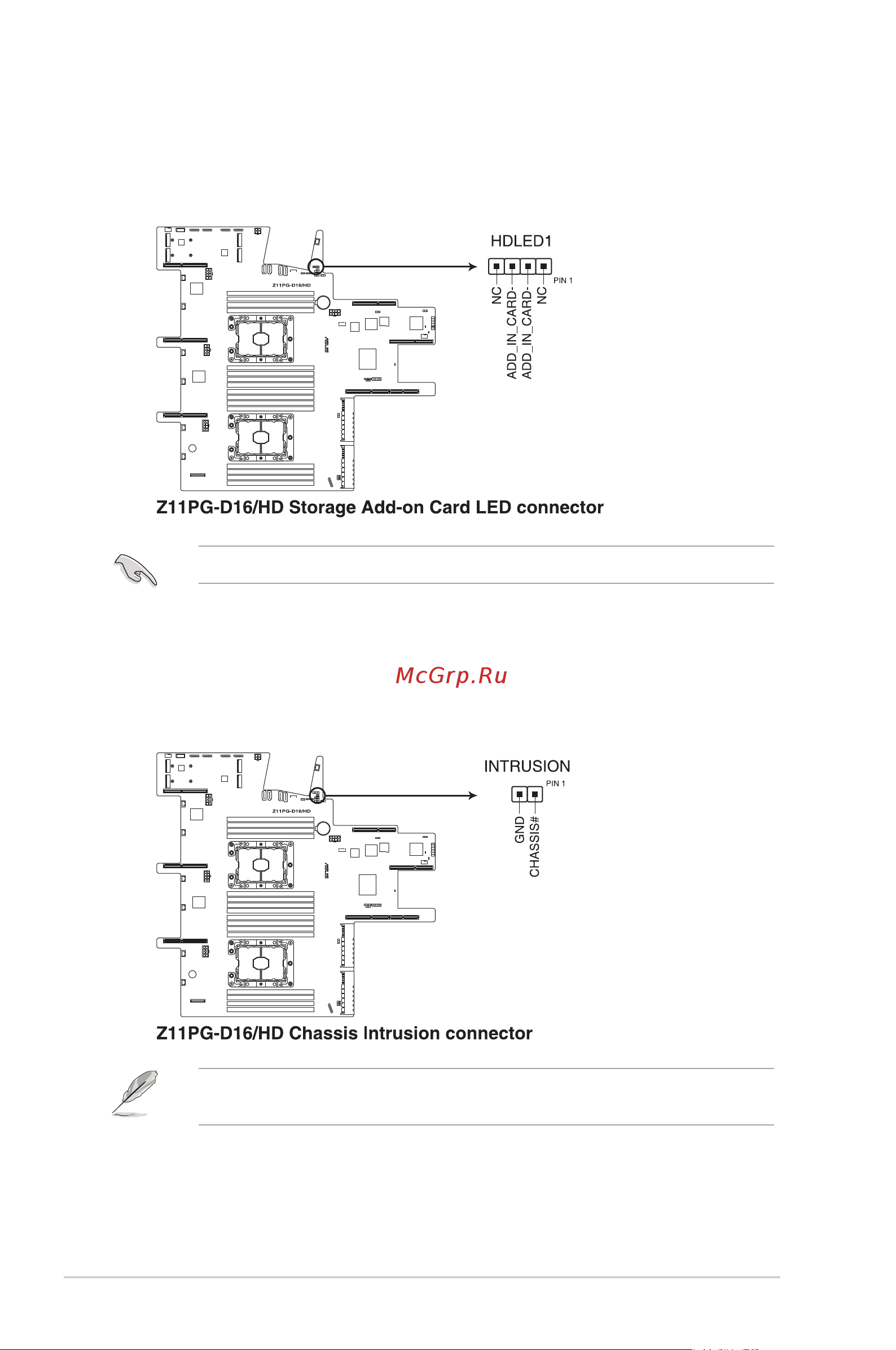

5. Storage Add-on Card LED connector
The Storage Add-on Card LED connector allows you to connect the storage device
activity LED cable from a storage add-on card. The Storage Device status LED lights
up or blinks when data is read from or written to the storage device add-on card.
Refer to section LED information for the exact location of the Storage Device status LED.
6. Chassis Intrusion connector
The Chassis Intrusion connector allows you to connect a intrusion sensor or
microswitch for the chassis intrusion detection feature. When you remove any chassis
component, the sensor or microswitch triggers and sends a high level signal and
records a chassis intrusion event.
By default, a jumper cap that disables the intrusion detection feature is installed on the
connector to prevent accidental triggers.
