ASUS ESC4000 DHD G4
4-15

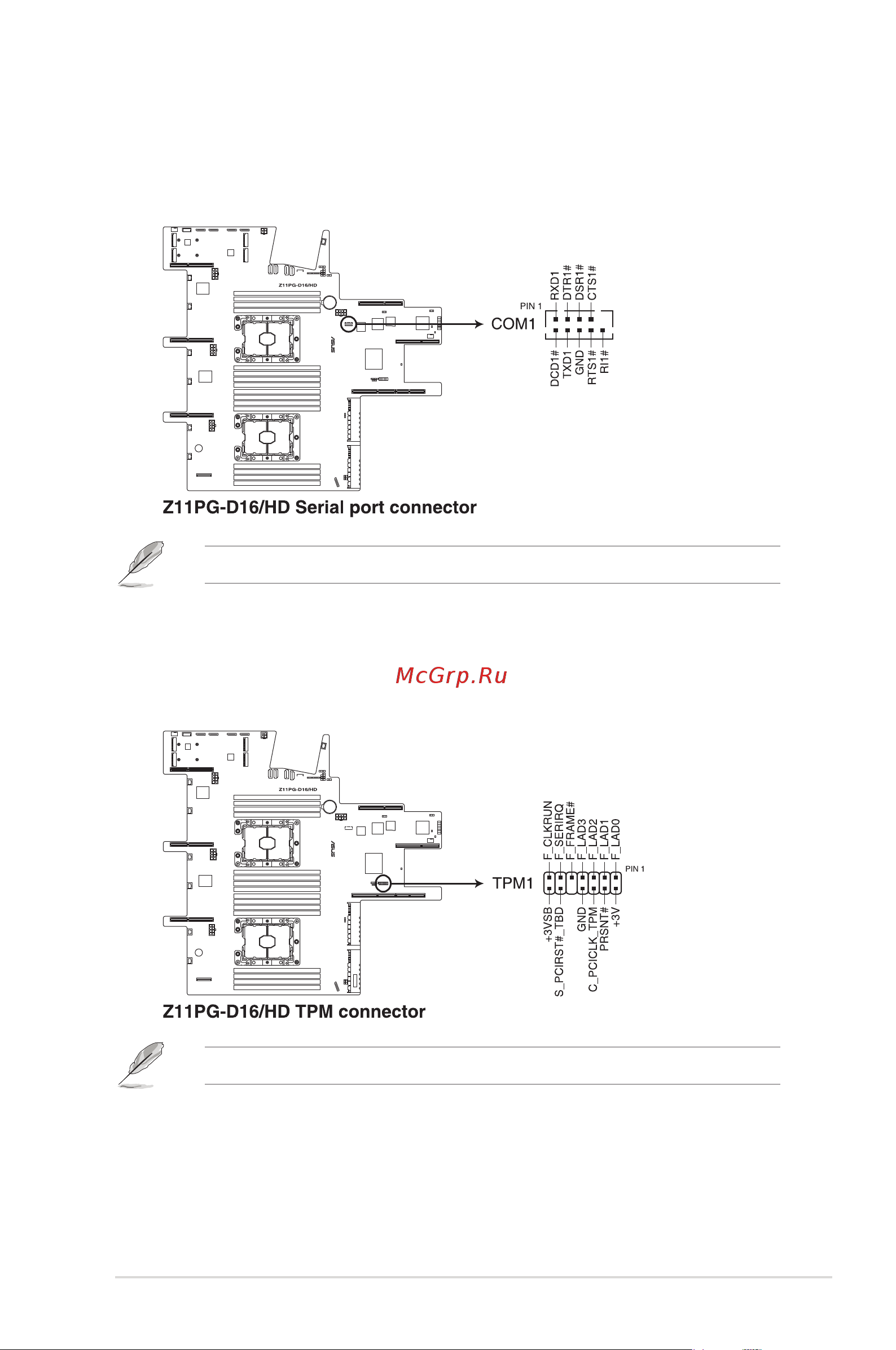

7. Serial Port connector
The Serial (COM) Port connector allows you to connect a serial port module. Connect
the serial port module cable to this connector, then install the module to a slot opening
on the system chassis.
The serial port module is purchased separately.
8. TPM connector
The TPM connector allows you to connect a Trusted Platform Module (TPM). A TPM
securelystoreskeys,digitalcerticates,passwords,data,andalsohelpsenhance
network security, protect digital identities, and ensures platform integrity.
The TPM is purchased separately.
