4-16

Chapter 4: Motherboard Information

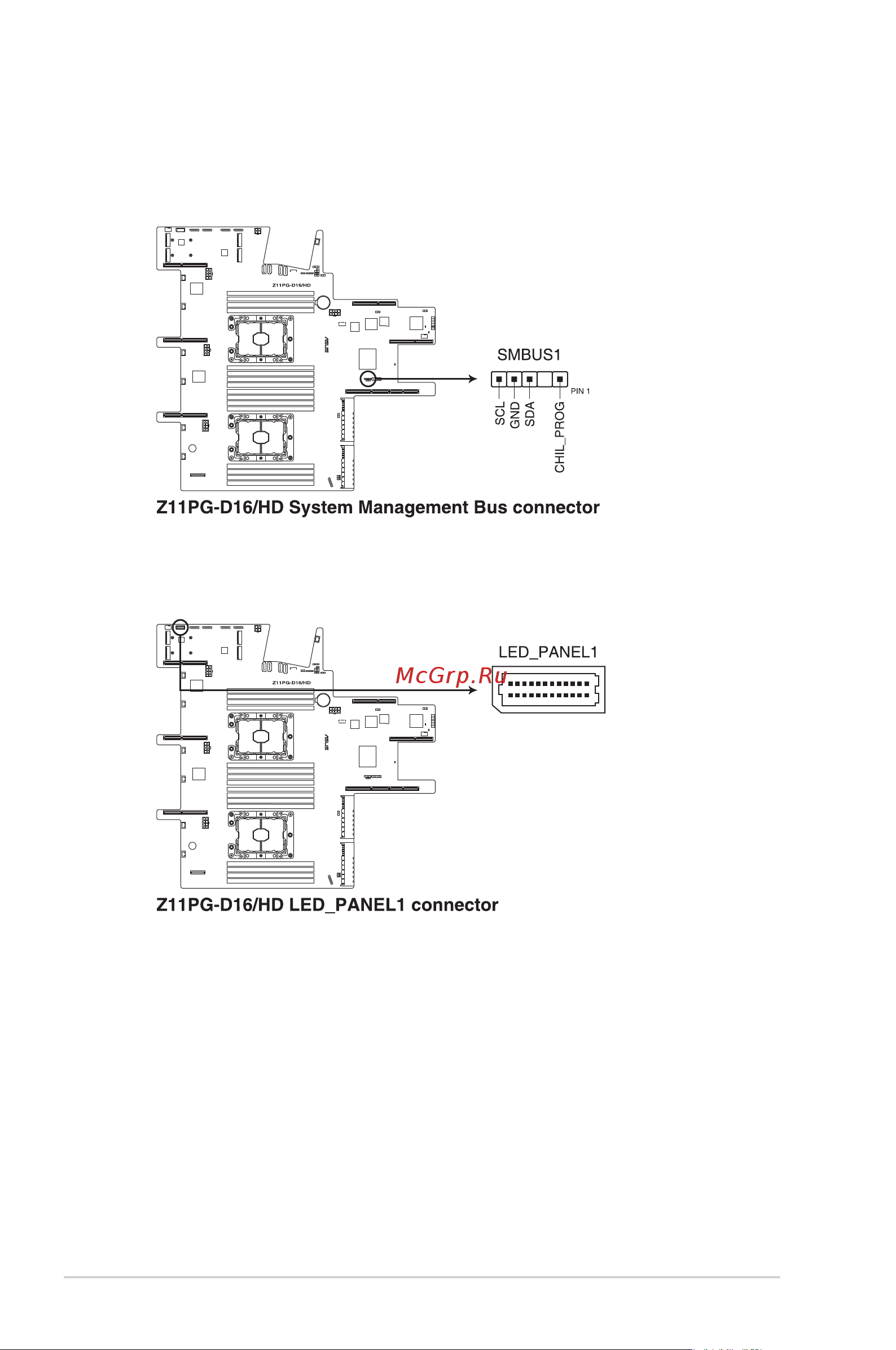

10. LED Panel connector

Connects the LED panel signal to the backplane.

9. System Management Bus connector

The System Management Bus (SMBus) connector allows you to connect SMBus

devices. This connector is generally used for communication with the system and

power management-related tasks.
