ASUS ESC4000 DHD G4
4-17

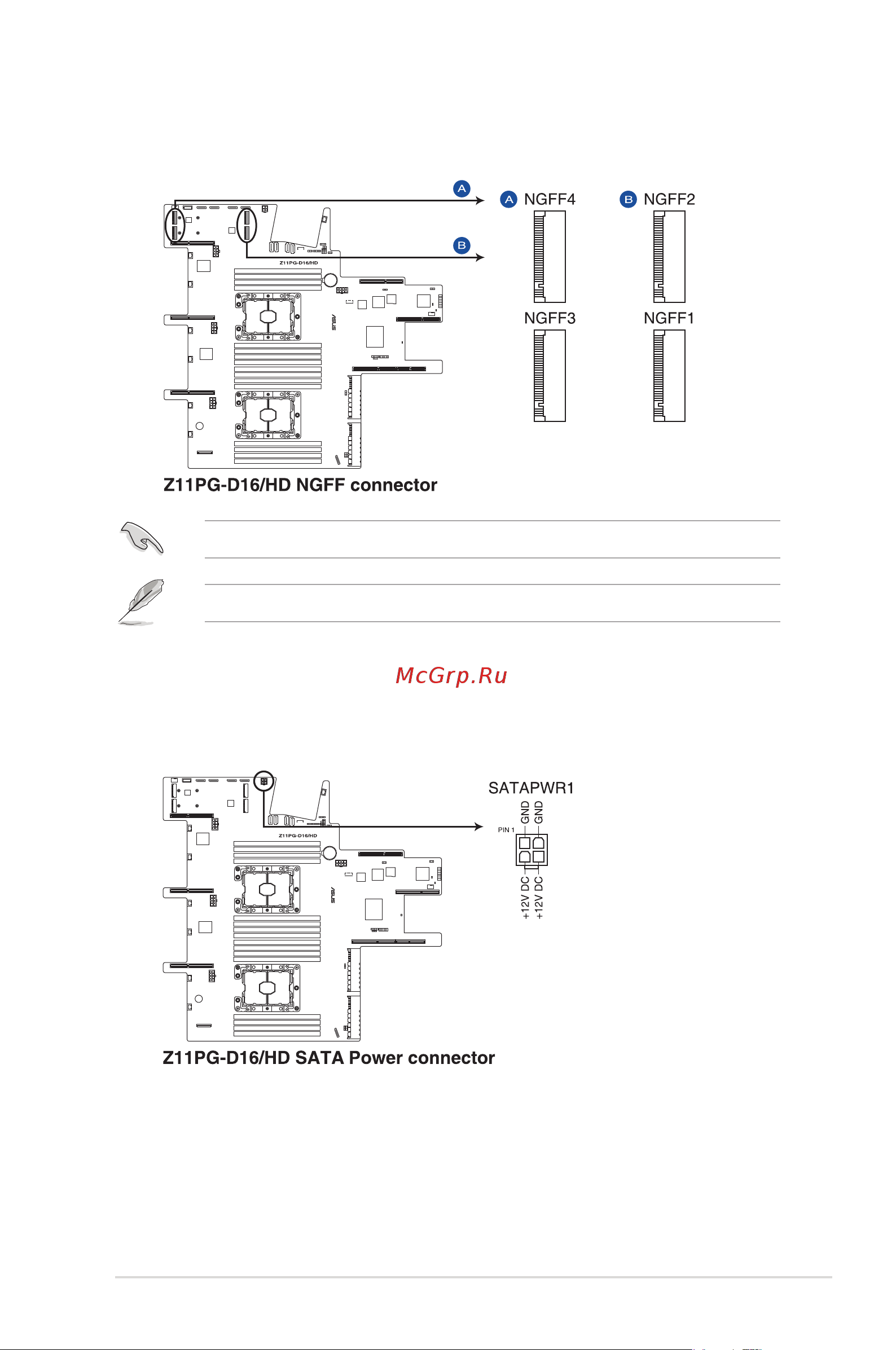

11. M.2 slot
The M.2 slot allows you to install M.2 devices such as M.2 SSD modules.
This connector supports type 2280 / 22110 devices on both PCI-E and SATA interface.
The M.2 (NGFF) device is purchased separately.
12. SATA Power connector
The SATA Power connector allow you to connect power from the motherboard to the
backplane.Thepowersupplyplugisdesignedtotinonlyoneorientation,ndthe
properorientationandpushdownrmlyuntilthepowersupplyplugisfullyinserted.
