Asus ESC4000 DHD G4 [21/178] Storagedevicestatusleds

ASUS ESC4000 DHD G4

1-11

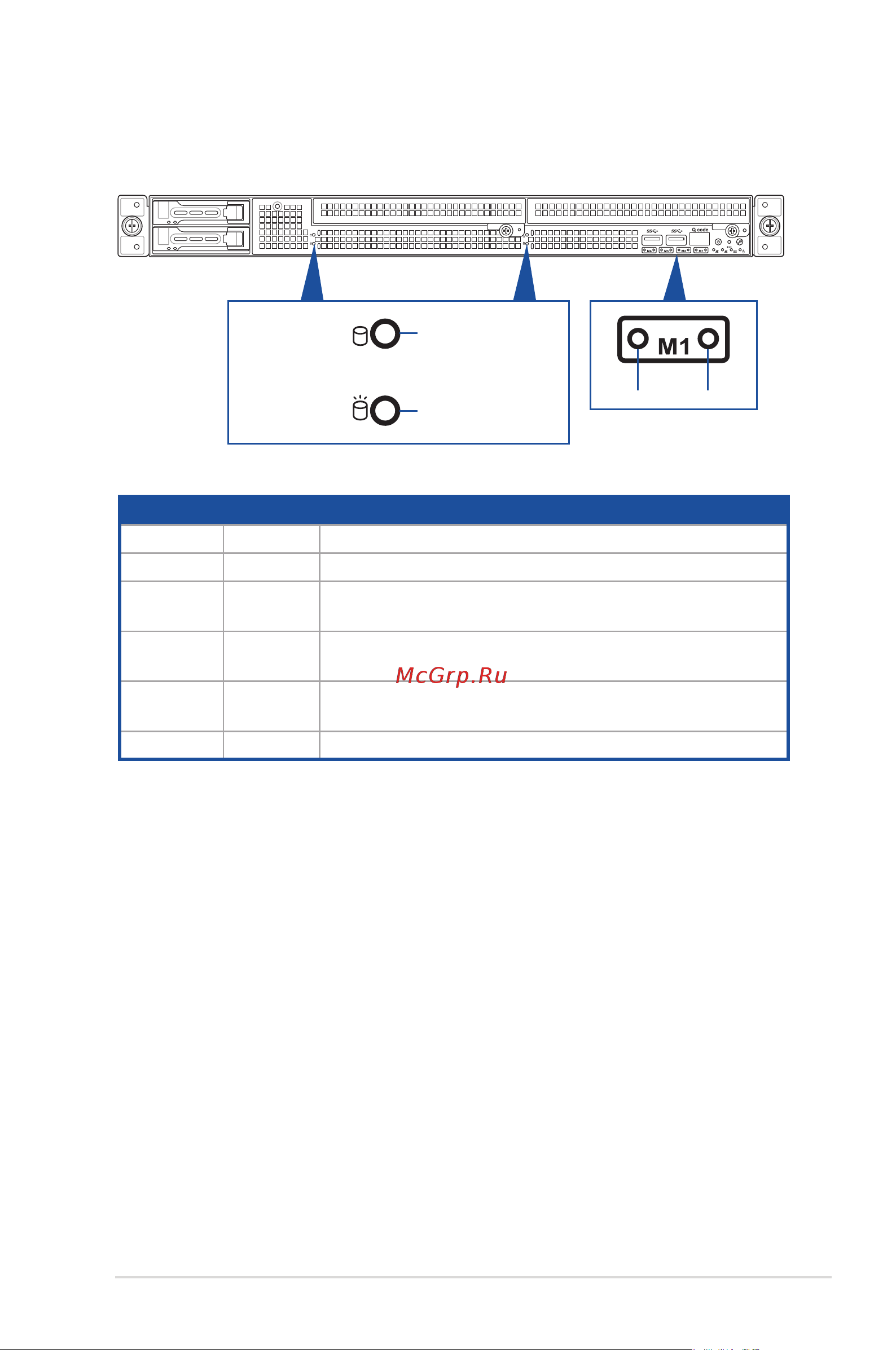

1.7.4 StoragedevicestatusLEDs

RedLED

GreenLED

StorageDeviceAccessLEDDescription

GREEN ON Storage device power ON

RED ON Storage device has failed and should be swapped immediately

GREEN/

RED

Blinking RAID rebuilding

GREEN/

RED

Blinking Locate

GREEN/

RED

OFF Storage device not found

GREEN Blinking Read/write data from/into the storage device
