5-24
Chapter 5: BIOS Setup
5.5.14 iSCSI Conguration
AllowsyoutoconguretheiSCSiparameters.

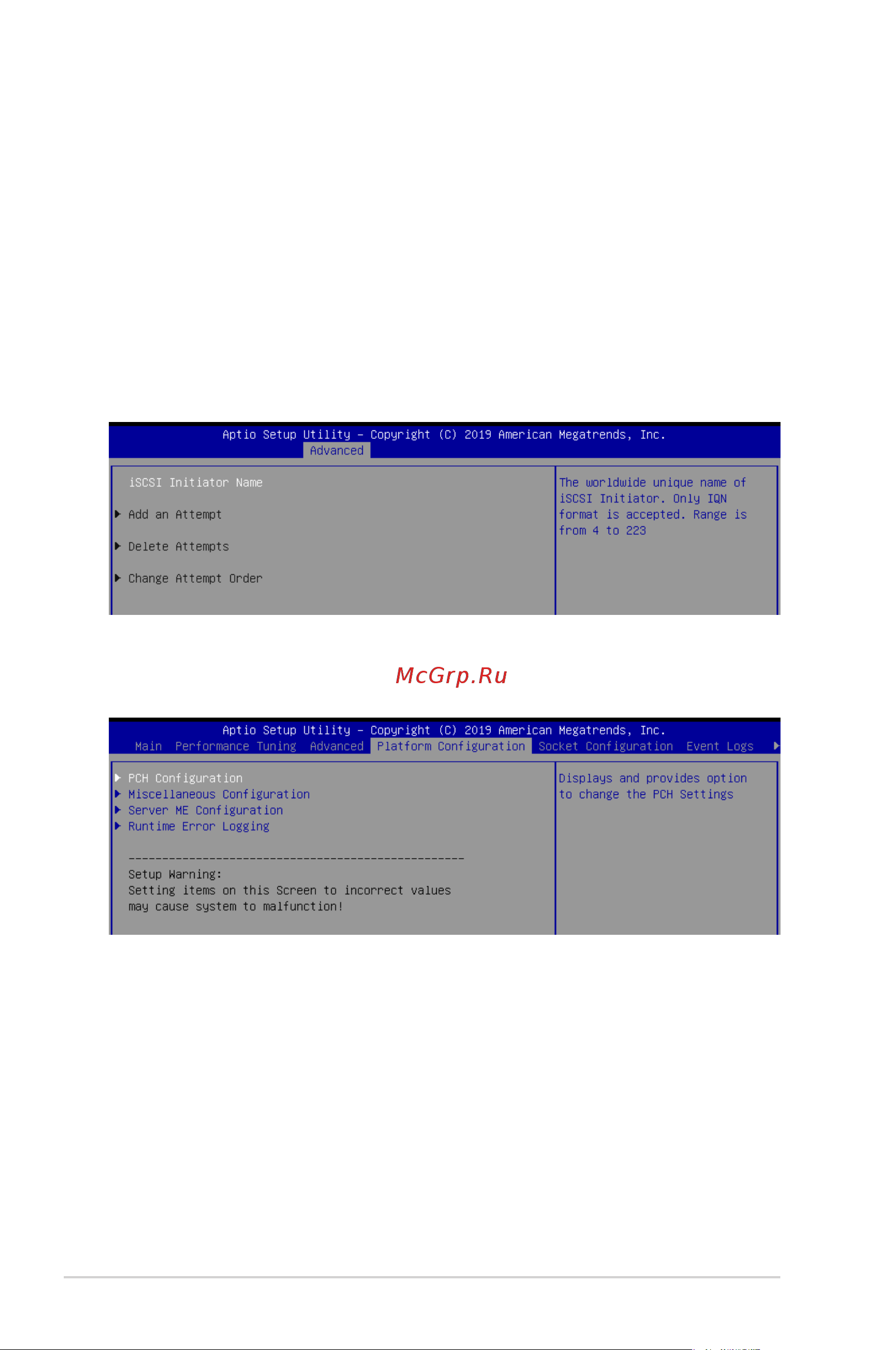

5.6 Platform Conguration menu
The IntelRCSetup menu items allow you to change the platform settings.
Ipv6 HTTP Support [Disabled]
EnablesordisablestheIpv6HTTPBootSupport.Ifdisabled,Ipv6HTTPbootoption
will not be created.
Congurationoptions:[Disabled][Enabled]
PXE boot wait time [0]
WaittimetopressESCkeytoabortthePXEboot.
Media detect time [1]
Waittime(inseconds)todetectmedia.
