2.3 System memory

2.3.1 Overview

The motherboard comes with sixteen (16) Double Data Rate 4 (DDR4) Dual Inline Memory

Modules (DIMM) sockets.

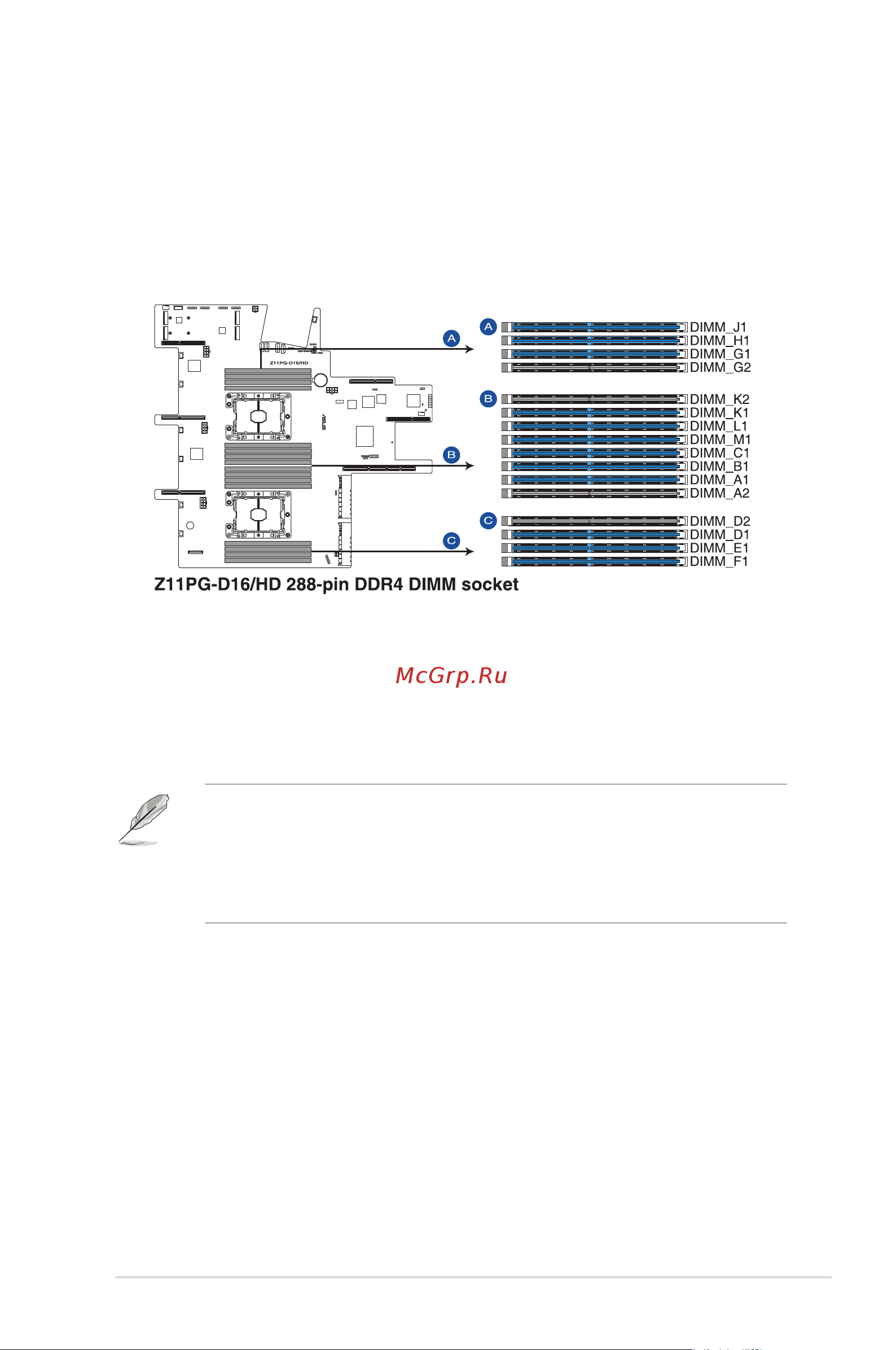

The gure illustrates the location of the DDR4 DIMM sockets:

2.3.2 MemoryCongurations

You may install 4GB, 8GB, 12GB, and 32GB RDIMMs; 64GB and 128GB RDIMMs

(3DS); 32GB, 64GB, and 128GB LRDIMMs; 64GB, 128GB, and 256GB LRDIMMs (3DS);

and 128GB, 256GB, and 512GB DCPMMs into the DIMM sockets using the memory

congurations in this section.

• Refer to ASUS Server AVL for the updated list of compatible DIMMs.

• When installing only one DIMM in a single CPU conguration, install the DIMM on

either A1 or B1.

• Always install DIMMs with the same CAS latency. For optimum compatibility, it is

recommended that you obtain memory modules from the same vendor.
