Chapter 2: Hardware Setup

2-6

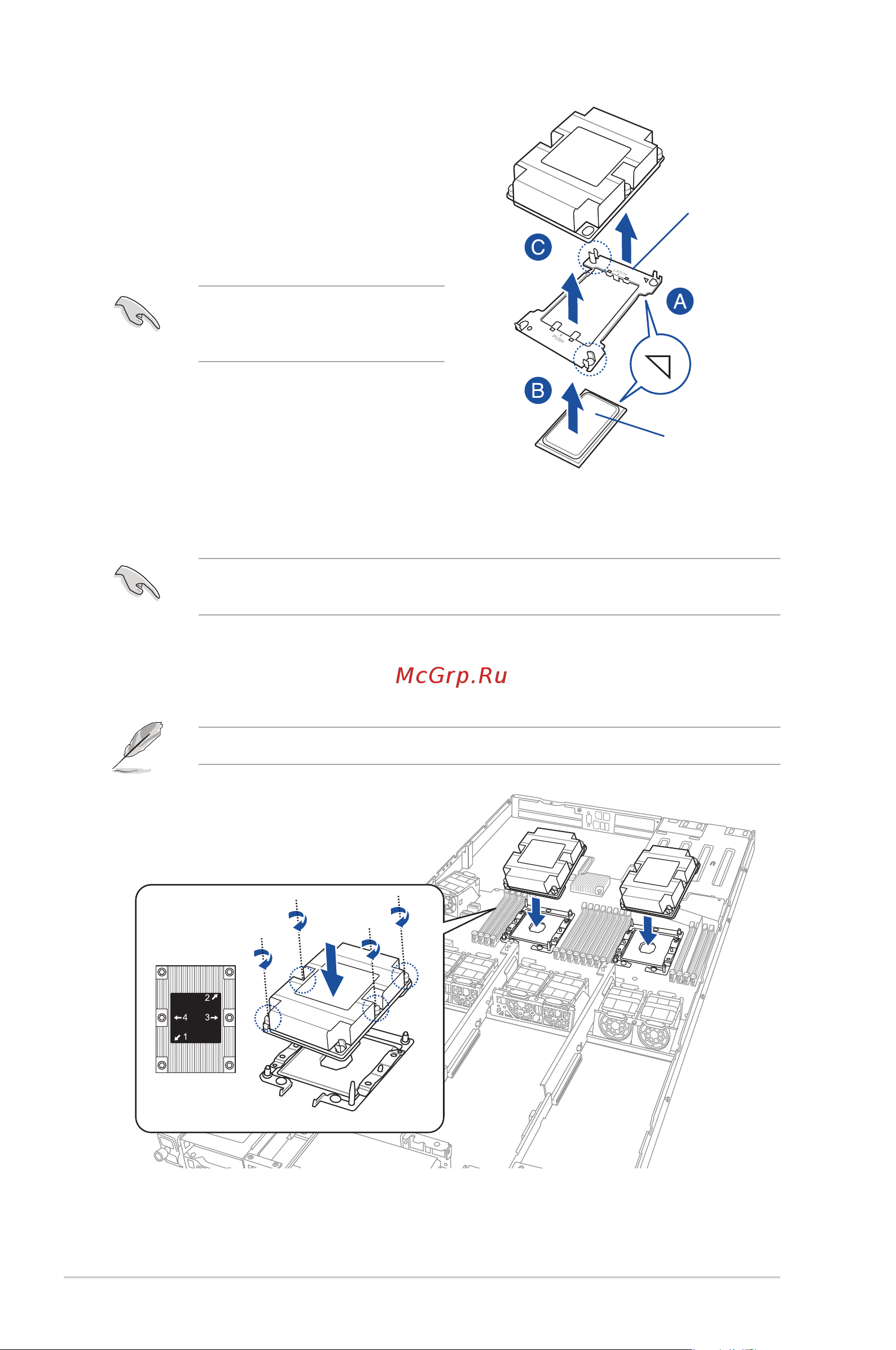

4. Align the triangle mark on the CPU with

the triangle mark on the CPU Carrier

(A), install the CPU into the CPU Carrier

until it clicks rmly into place (B), and

then install the CPU and CPU Carrier

into the heatsink until it clicks rmly in

place (C).

Ensure that the triangle mark on the

CPU matches the triangle mark on

the CPU Carrier.

CPU Carrier

CPU

Triangle mark

5. Align the CPU and CPU Carrier in the correct orientation, and then place the heatsinks

on top of the CPU sockets.

The CPU and CPU Carrier ts in only one correct orientation. DO NOT force the CPU and

CPU Carrier into the socket to prevent damaging the CPU pins on the socket.

6. Twist each of the four screws with a screwdriver just enough to attach the heatsink to

the motherboard. When the four screws are attached, tighten them one by one in a

diagonal sequence to completely secure the heatsink to complete.

The heatsink screws are T30 models. A torque value of 12 inch-lbf is recommended.
