Asus ESC4000 DHD G4 [26/178] Chassis cover

Chapter 2: Hardware Setup

2-2

2.1 Chassis cover

There are two parts of the chassis cover you may remove.

The diagrams in this section are for reference only. The system layout may vary with

models, but the installation steps are the same for all models.

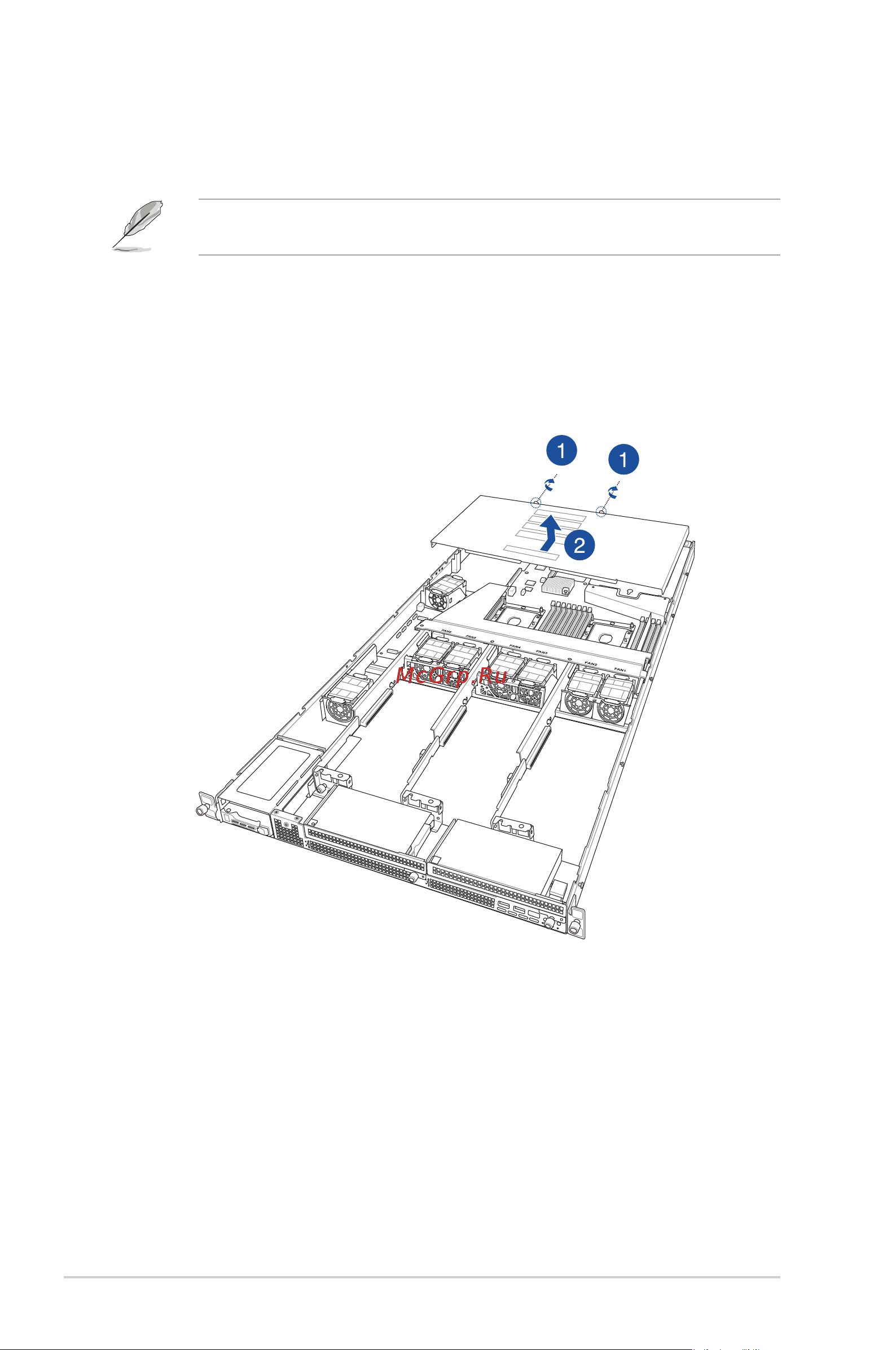

To remove the rear chassis cover:

1. Release the two (2) thumbscrews on the rear of the chassis.

2. Slide the chassis cover towards the rear to disengage it from the chassis and lift the

chassis cover to completely remove it from the chassis.
