Руководство пользователя Страница: 27

Asus ESC4000 DHD G4 Руководство пользователя онлайн [27/178] 596732

2-3

ASUS ESC4000 DHD G4

A protection lm is pre-attached to the system cover before shipping. Please remove the

protection lm before turning on the system for proper heat dissipation.

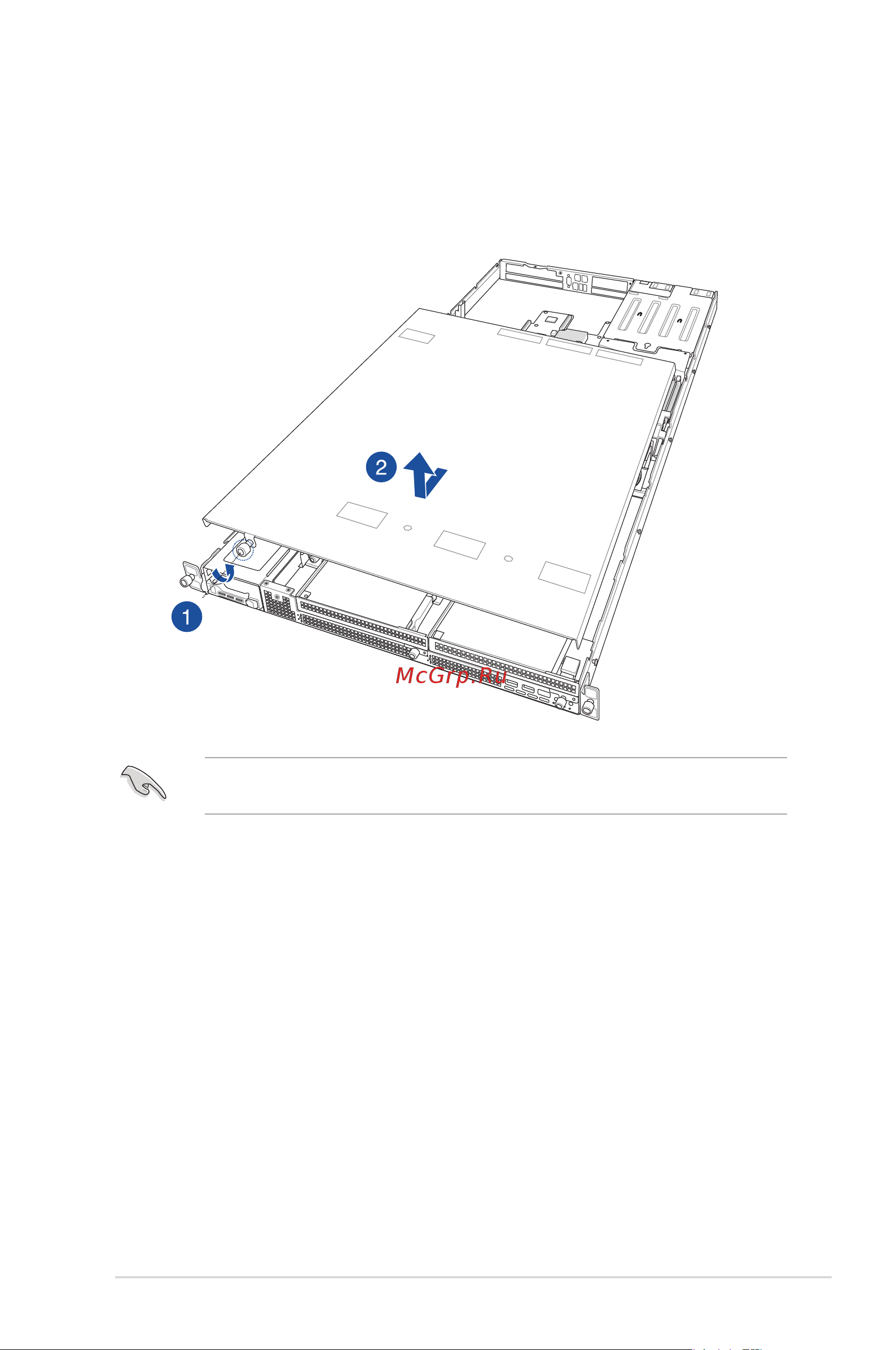

To remove the front chassis cover:

1. Release the thumbscrew on the front of the chassis.

2. Slide the chassis cover towards the front to disengage it from the chassis and lift the

chassis cover to completely remove it from the chassis.
