Chapter 2: Hardware Setup

2-16

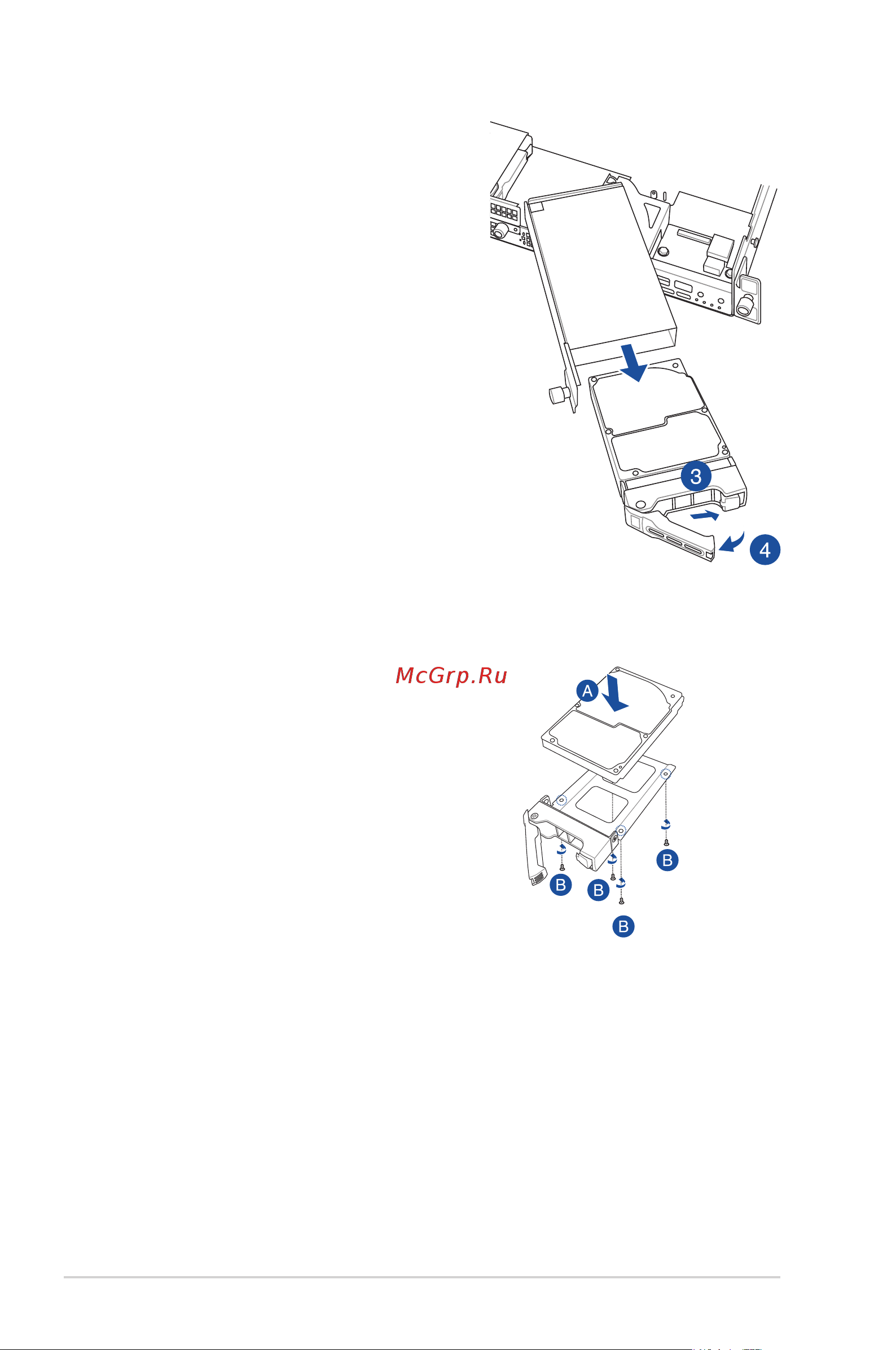

3. Press the spring lock.

4. Pull the tray lever outwards to remove

the storage device tray.

5. Prepare the storage device and the

bundled set of screws.

6. Place the storage device into the tray (A)

then secure it with four screws (B).
