2-17

ASUS ESC4000 DHD G4

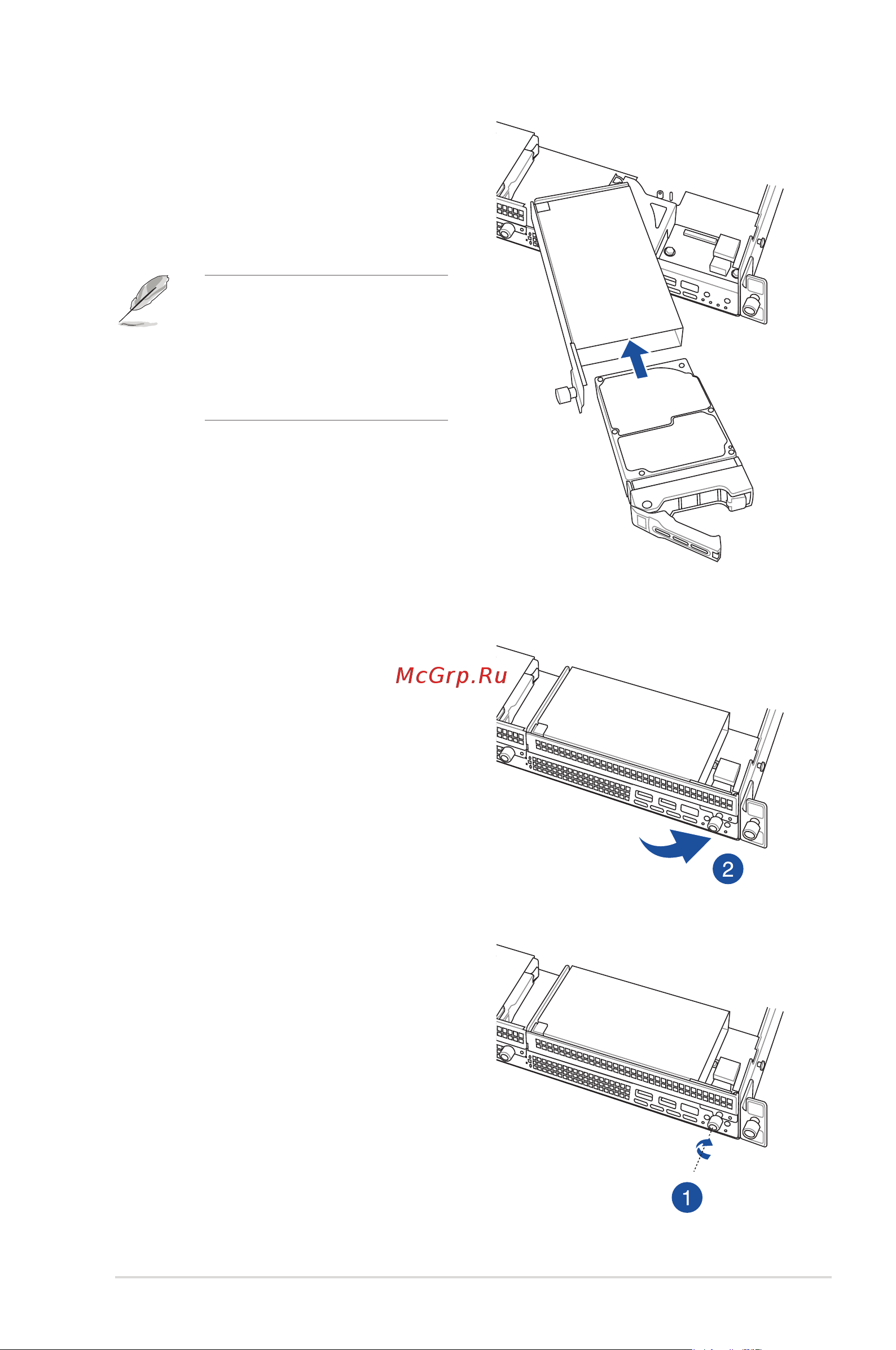

7. Push the storage device tray and

storage device assembly all the way

into the depth of the bay until the tray

lever and spring lock clicks and secures

the tray in place.

• When installed, the storage

device connects to the

backplane.

• The storage device tray is

correctly placed when its front

edge aligns with the bay edge.

8. Swing the storage device drawer close.

9. Secure the storage bay release

thumbscrew to complete.
